TXC CORPORATION 8Y-25.000MEEQ-T
- Part No.:
- 8Y-25.000MEEQ-T
- Manufacturer:
- TXC CORPORATION
- Category:
- Crystals
- Package:
- 4-SMD, No Lead
- Datasheet:
-
8Y-25.000MEEQ-T.pdf
- Description:
- CRYSTAL 25.0000MHZ 10PF SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
8Y-25.000MEEQ-T Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TXC CORPORATION
- Series:
- 8Y
- Package/Case:
- 4-SMD, No Lead
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- MHz Crystal
- Frequency:
- 25 MHz
- Frequency Stability:
- ±10ppm
- Frequency Tolerance:
- ±10ppm
- Load Capacitance:
- 10pF
- ESR (Equivalent Series Resistance):
- 100 Ohms
- Operating Mode:
- Fundamental
- Operating Temperature:
- -20°C ~ 70°C
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- -
- Size / Dimension:
- 0.079" L x 0.063" W (2.00mm x 1.60mm)
- Height - Seated (Max):
- 0.022" (0.55mm)

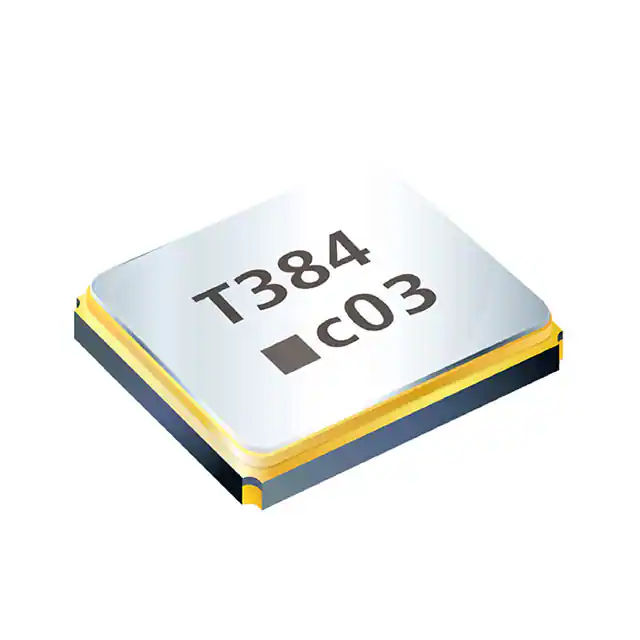

| Image |  |
|
 |
 |
|
| Part Number | 8Y-25.000MAAJ-T | 8Y-25.000MEEQ-T | 8Y39072005 | 8Y40072002 | 8Y38472012 |
| Manufacturer | TXC CORPORATION | TXC CORPORATION | TXC CORPORATION | TXC CORPORATION | TXC CORPORATION |
| Series | 8Y | 8Y | 8Y | 8Y | 8Y |
| Package/Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Type | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal |
| Frequency | 25 MHz | 25 MHz | 39 MHz | 40 MHz | 38.4 MHz |
| Frequency Stability | ±30ppm | ±10ppm | -33ppm, +35ppm | - | ±10ppm |
| Frequency Tolerance | ±30ppm | ±10ppm | -5ppm, +7ppm | - | ±10ppm |
| Load Capacitance | 18pF | 10pF | 10pF | 8pF | 10pF |
| ESR (Equivalent Series Resistance) | 100 Ohms | 100 Ohms | 35 Ohms | 80 Ohms | 80 Ohms |
| Operating Mode | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 70°C | -40°C ~ 125°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.020" (0.50mm) | 0.022" (0.55mm) | 0.022" (0.55mm) |
