FTS 7A-22.1184MAAE-T
- Part No.:
- 7A-22.1184MAAE-T
- Manufacturer:
- FTS
- Category:
- Crystals
- Package:
- 2-SMD, No Lead
- Datasheet:
-
7A-22.1184MAAE-T.pdf
- Description:
- 5.0x3.1 XTAL 30ppm 30ppm 12pF
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
7A-22.1184MAAE-T Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- FTS
- Series:
- 7A
- Package/Case:
- 2-SMD, No Lead
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- MHz Crystal
- Frequency:
- 22.1184 MHz
- Frequency Stability:
- ±30ppm
- Frequency Tolerance:
- ±30ppm
- Load Capacitance:
- 12pF
- ESR (Equivalent Series Resistance):
- 50 Ohms
- Operating Mode:
- Fundamental
- Operating Temperature:
- -20°C ~ 70°C
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- -
- Size / Dimension:
- 0.197" L x 0.126" W (5.00mm x 3.20mm)
- Height - Seated (Max):
- 0.053" (1.35mm)
| Image |  |
|
 |
|
|

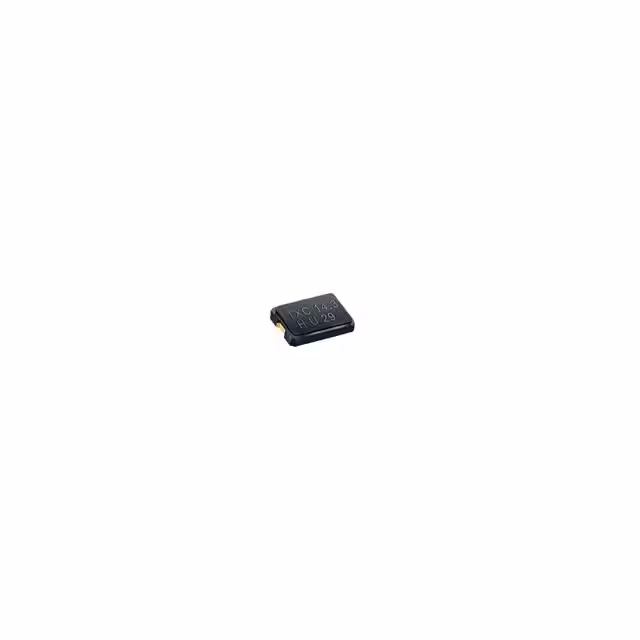

| Part Number | 7A-22.1184MAAE-T | 7A-18.432MBBK-T | 7A-19.200MAAE-T | 7A-14.31818MAAE-T | 7A-50.000MAAJ-T |
| Manufacturer | FTS | FTS | FTS | FTS | FTS |
| Series | 7A | 7A | 7A | 7A | 7A |
| Package/Case | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Type | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal |
| Frequency | 22.1184 MHz | 18.432 MHz | 19.2 MHz | 14.31818 MHz | 50 MHz |
| Frequency Stability | ±30ppm | ±50ppm | ±30ppm | ±30ppm | ±30ppm |
| Frequency Tolerance | ±30ppm | ±50ppm | ±30ppm | ±30ppm | ±30ppm |
| Load Capacitance | 12pF | 20pF | 12pF | 12pF | 18pF |
| ESR (Equivalent Series Resistance) | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms |
| Operating Mode | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.053" (1.35mm) | 0.053" (1.35mm) | 0.053" (1.35mm) | 0.053" (1.35mm) | 0.053" (1.35mm) |
