Tamura 3FL12-475
- Part No.:
- 3FL12-475
- Manufacturer:
- Tamura
- Category:
- Power Transformers
- Package:
- Datasheet:
-
3FL12-475.pdf
- Description:
- PWR XFMR LAMINATED 6VA TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
3FL12-475 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Tamura
- Series:
- 3FL
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- Laminated Core
- Voltage - Primary:
- 115V, 230V
- Voltage - Secondary (Full Load):
- Parallel 6.3V, Series 12.6V
- Current - Output (Max):
- Parallel 950mA, Series 475mA
- Primary Winding(s):
- Dual
- Secondary Winding(s):
- Dual
- Center Tap:
- No
- Power - Max:
- 6VA
- Mounting Type:
- Through Hole
- Termination Style:
- PC Pin
- Size / Dimension:
- 47.60mm L x 39.60mm W
- Height - Seated (Max):
- 21.60mm
- Voltage - Isolation:
- 1500Vrms
- Weight:
- -

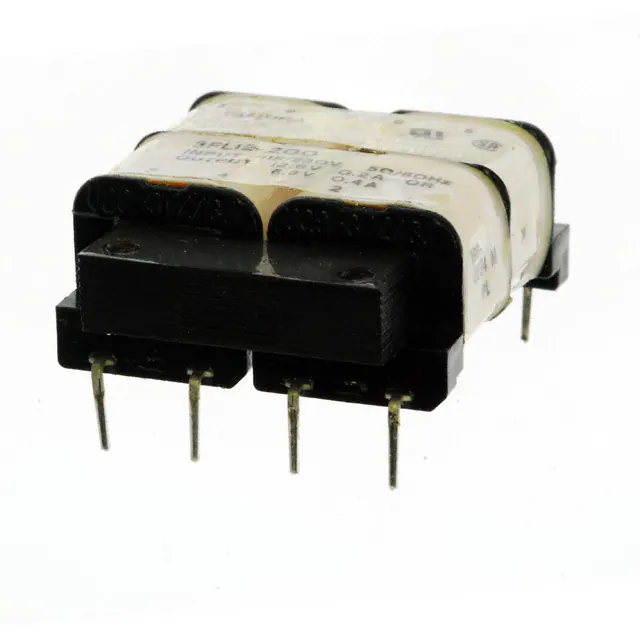

| Image |  |
 |
 |
|
|
| Part Number | 3FL12-475 | 3FL12-200 | 3FL120-20 | 3FL120-50 | 3FL120-100 |
| Manufacturer | Tamura | Tamura | Tamura | Tamura | Tamura |
| Series | 3FL | 3FL | 3FL | 3FL | 3FL |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Type | Laminated Core | Laminated Core | Laminated Core | Laminated Core | Laminated Core |
| Voltage - Primary | 115V, 230V | 115V, 230V | 115V, 230V | 115V, 230V | 115V, 230V |
| Voltage - Secondary (Full Load) | Parallel 6.3V, Series 12.6V | Parallel 6.3V, Series 12.6V | Parallel 60V, Series 120V | Parallel 60V, Series 120V | Parallel 60V, Series 120V |
| Current - Output (Max) | Parallel 950mA, Series 475mA | Parallel 400mA, Series 200mA | Parallel 400mA, Series 200mA | Parallel 100mA, Series 50mA | Parallel 200mA, Series 100mA |
| Primary Winding(s) | Dual | Dual | Dual | Dual | Dual |
| Secondary Winding(s) | Dual | Dual | Dual | Dual | Dual |
| Center Tap | No | No | No | No | No |
| Power - Max | 6VA | 2.5VA | 2.5VA | 6VA | 12VA |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Size / Dimension | 47.60mm L x 39.60mm W | 47.60mm L x 39.60mm W | - | - | - |
| Height - Seated (Max) | 21.60mm | 16.80mm | - | - | - |
| Voltage - Isolation | 1500Vrms | 1500Vrms | 1500Vrms | 1500Vrms | 1500Vrms |
| Weight | - | - | - | - | - |
- Include Parts
- Popular Search
The following parts include "3FL12-475" in Silicon Labs 3FL12-475.
- Part Number
- Manufacturer
- Package
- Description
- FS12-090-C2 Triad Magnetics PWR XFMR LAMINATED 1.1VA TH
- FS24-045-C2 Triad Magnetics PWR XFMR LAMINATED 1.1VA TH
- F12-200-C2 Triad Magnetics PWR XFMR LAMINATED 2.5VA TH
- FS20-120-C2 Triad Magnetics PWR XFMR LAMINATED 2.4VA TH
- FS24-100-C2 Triad Magnetics PWR XFMR LAMINATED 2.4VA TH
- FS12-200-C2 Triad Magnetics PWR XFMR LAMINATED 2.4VA TH
- VPP28-090 Triad Magnetics PWR XFMR LAMINATED 2.5VA TH
- PL5.0-24-130B Tamura PWR XFMR LAMINATED 5VA TH
- ST-3-24 Signal Transformer PWR XFMR LAMINATED 2.4VA TH
- VPP24-100 Triad Magnetics PWR XFMR LAMINATED 2.5VA TH
