Tamura 3FD-424
- Part No.:
- 3FD-424
- Manufacturer:
- Tamura
- Category:
- Power Transformers
- Package:
- Datasheet:
-
3FD-424.pdf
- Description:
- PWR XFMR LAMINATED 6VA TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
3FD-424 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Tamura
- Series:
- 3FD-4xx
- Packaging:
- Tube
- Product Status:
- Active
- Type:
- Laminated Core
- Voltage - Primary:
- 115V, 230V
- Voltage - Secondary (Full Load):
- Parallel 12V, Series 24V
- Current - Output (Max):
- Parallel 500mA, Series 250mA
- Primary Winding(s):
- Dual
- Secondary Winding(s):
- Dual
- Center Tap:
- No
- Power - Max:
- 6VA
- Mounting Type:
- Through Hole
- Termination Style:
- PC Pin
- Size / Dimension:
- 41.50mm L x 34.83mm W
- Height - Seated (Max):
- 38.00mm
- Voltage - Isolation:
- 2500Vrms
- Weight:
- -

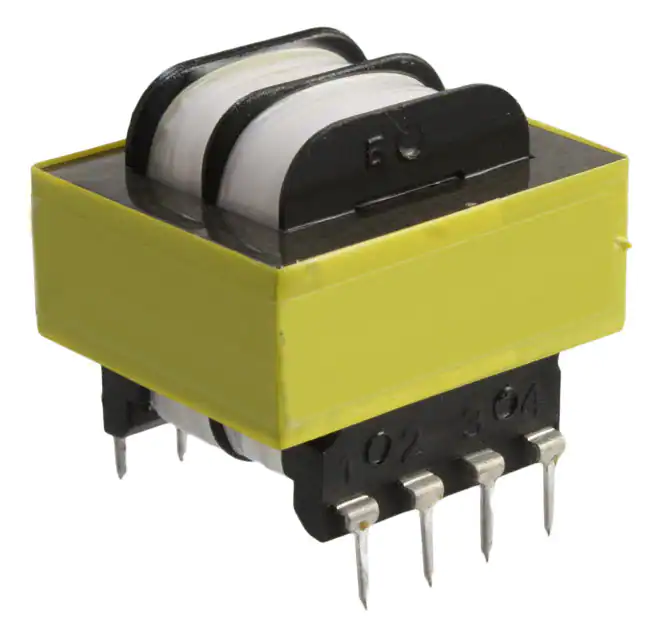

| Image |  |
|
 |
 |
 |
| Part Number | 3FD-416 | 3FD-424 | 3FD-436 | 3FD-524 | 3FD-312 |
| Manufacturer | Tamura | Tamura | Tamura | Tamura | Tamura |
| Series | 3FD-4xx | 3FD-4xx | 3FD-4xx | 3FD-5xx | 3FD-3xx |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Type | Laminated Core | Laminated Core | Laminated Core | Laminated Core | Laminated Core |
| Voltage - Primary | 115V, 230V | 115V, 230V | 115V, 230V | 115V, 230V | 115V, 230V |
| Voltage - Secondary (Full Load) | Parallel 8V, Series 16V | Parallel 12V, Series 24V | Parallel 18V, Series 36V | Parallel 12V, Series 24V | Parallel 6.3V, Series 12.6V |
| Current - Output (Max) | Parallel 800mA, Series 400mA | Parallel 500mA, Series 250mA | Parallel 340mA, Series 170mA | Parallel 1A, Series 500mA | Parallel 400mA, Series 200mA |
| Primary Winding(s) | Dual | Dual | Dual | Dual | Dual |
| Secondary Winding(s) | Dual | Dual | Dual | Dual | Dual |
| Center Tap | No | No | No | No | No |
| Power - Max | 6VA | 6VA | 6VA | 12VA | 2.4VA |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Size / Dimension | 41.50mm L x 34.83mm W | 41.50mm L x 34.83mm W | 41.50mm L x 34.83mm W | 48.50mm L x 41.52mm W | 35.56mm L x 31.00mm W |
| Height - Seated (Max) | 38.00mm | 38.00mm | 34.55mm | 38.00mm | 32.10mm |
| Voltage - Isolation | 2500Vrms | 2500Vrms | 2500Vrms | 2500Vrms | 2500Vrms |
| Weight | - | - | - | - | - |
