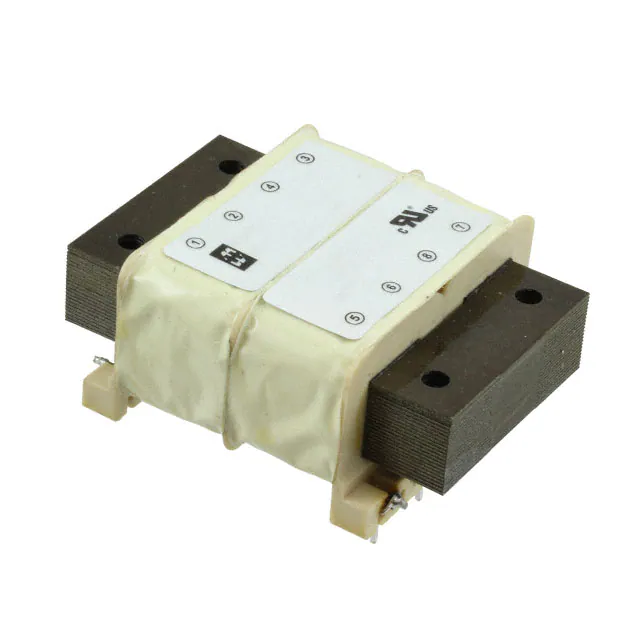

Hammond Manufacturing 229D16-BULK
- Part No.:
- 229D16-BULK
- Manufacturer:
- Hammond Manufacturing
- Category:
- Power Transformers
- Package:
- Description:
- Tools/Equipment/Hardware
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
229D16-BULK Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Hammond Manufacturing
- Series:
- 229
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- -
- Voltage - Primary:
- 115V, 230V
- Voltage - Secondary (Full Load):
- Parallel 8V, Series 16V
- Current - Output (Max):
- Parallel 6A, Series 3A
- Primary Winding(s):
- Dual
- Secondary Winding(s):
- Dual
- Center Tap:
- No
- Power - Max:
- 48VA
- Mounting Type:
- Through Hole
- Termination Style:
- PC Pin
- Size / Dimension:
- 79.25mm L x 63.50mm W
- Height - Seated (Max):
- 35.05mm
- Voltage - Isolation:
- 1750Vrms
- Weight:
- -
| Image |  |
 |
|
| Part Number | 229D16 | 229D16R | 229D16-BULK |
| Manufacturer | Hammond Manufacturing | Hammond Manufacturing | Hammond Manufacturing |
| Series | 229 | 229 | 229 |
| Packaging | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active |
| Type | Semi-Toroidal | - | - |
| Voltage - Primary | 115V, 230V | 115V, 230V | 115V, 230V |
| Voltage - Secondary (Full Load) | Parallel 8V, Series 16V | Parallel 8V, Series 16V | Parallel 8V, Series 16V |
| Current - Output (Max) | Parallel 6A, Series 3A | Parallel 6A, Series 3A | Parallel 6A, Series 3A |
| Primary Winding(s) | Dual | Dual | Dual |
| Secondary Winding(s) | Dual | Dual | Dual |
| Center Tap | No | No | No |
| Power - Max | 48VA | 48VA | 48VA |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pin | PC Pin | PC Pin |
| Size / Dimension | 63.50mm L x 79.25mm W | 79.25mm L x 63.50mm W | 79.25mm L x 63.50mm W |
| Height - Seated (Max) | 35.05mm | 35.05mm | 35.05mm |
| Voltage - Isolation | 1750Vrms | 1750Vrms | 1750Vrms |
| Weight | 1.5 lbs (680.4 g) | - | - |
