Hammond Manufacturing 162D12-BULK
- Part No.:
- 162D12-BULK
- Manufacturer:
- Hammond Manufacturing
- Category:
- Power Transformers
- Package:
- Description:
- Tools/Equipment/Hardware
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
162D12-BULK Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Hammond Manufacturing
- Series:
- 162
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- -
- Voltage - Primary:
- 115V, 230V
- Voltage - Secondary (Full Load):
- Parallel 6.3V, Series 12.6V
- Current - Output (Max):
- Parallel 180mA, Series 90mA
- Primary Winding(s):
- Dual
- Secondary Winding(s):
- Dual
- Center Tap:
- No
- Power - Max:
- 1.1VA
- Mounting Type:
- Through Hole
- Termination Style:
- PC Pin
- Size / Dimension:
- 35.05mm L x 28.70mm W
- Height - Seated (Max):
- 16.00mm
- Voltage - Isolation:
- 2500V
- Weight:
- -

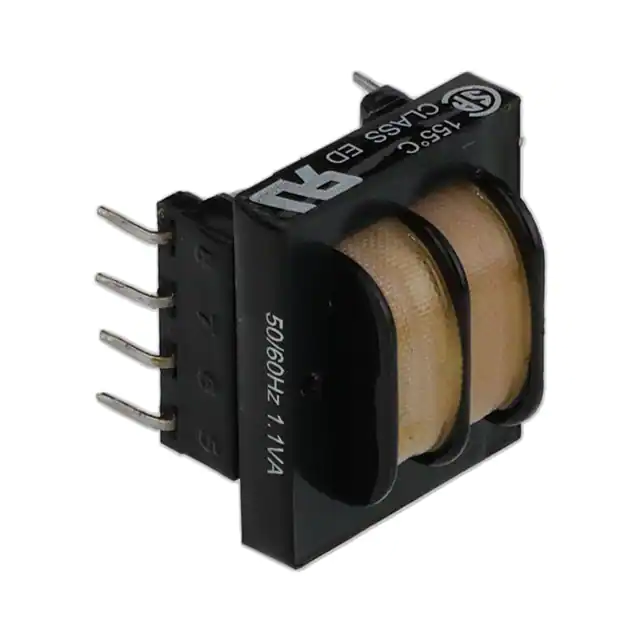

| Image |  |
|
 |
| Part Number | 162D120 | 162D12 | 162D12-BULK |
| Manufacturer | Hammond Manufacturing | Hammond Manufacturing | Hammond Manufacturing |
| Series | 162 | 162 | 162 |
| Packaging | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active |
| Type | Laminated Core | Laminated Core | - |
| Voltage - Primary | 115V, 230V | 115V, 230V | 115V, 230V |
| Voltage - Secondary (Full Load) | Parallel 60V, Series 120V | Parallel 6.3V, Series 12.6V | Parallel 6.3V, Series 12.6V |
| Current - Output (Max) | Parallel 20mA, Series 10mA | Parallel 180mA, Series 90mA | Parallel 180mA, Series 90mA |
| Primary Winding(s) | Dual | Dual | Dual |
| Secondary Winding(s) | Dual | Dual | Dual |
| Center Tap | No | No | No |
| Power - Max | 1.1VA | 1.1VA | 1.1VA |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pin | PC Pin | PC Pin |
| Size / Dimension | 34.93mm L x 28.58mm W | 34.93mm L x 28.58mm W | 35.05mm L x 28.70mm W |
| Height - Seated (Max) | 33.32mm | 33.32mm | 16.00mm |
| Voltage - Isolation | 2500Vrms | 2500Vrms | 2500V |
| Weight | 0.17 lb (77.11 g) | 0.17 lb (77.11 g) | - |
