TE Connectivity Potter & Brumfield Relays V23134-A3052-X540

Name: V23134-A3052-X540
Brand: TE Connectivity Potter & Brumfield Relays
SKU: V23134-A3052-X540
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: V23134-A3052-X540

Manufacturer:: TE Connectivity Potter & Brumfield Relays

Category:: Automotive Relays

Package:

Datasheet:: V23134-A3052-X540.pdf

Description:: RELAY GEN PURPOSE SPDT 40A 12V

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

V23134-A3052-X540 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: TE Connectivity Potter & Brumfield Relays

Series:: VF4

Packaging:: Bulk

Product Status:: Active

Coil Type:: Non Latching

Coil Current:: 133 mA

Coil Voltage:: 12VDC

Contact Form:: SPDT (1 Form C)

Contact Rating (Current):: 40 A

Switching Voltage:: 14VDC - Nom

Must Operate Voltage:: 7.2 VDC

Must Release Voltage:: 1.2 VDC

Operate Time:: 7 ms

Release Time:: 2 ms

Features:: Resistor

Mounting Type:: Socketable

Termination Style:: Plug In, Quick Connect - 0.250" (6.3mm)

Operating Temperature:: -40°C ~ 125°C

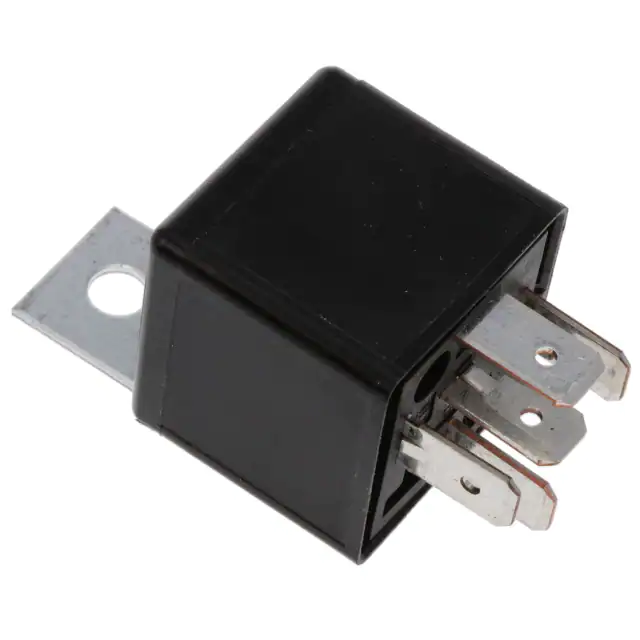

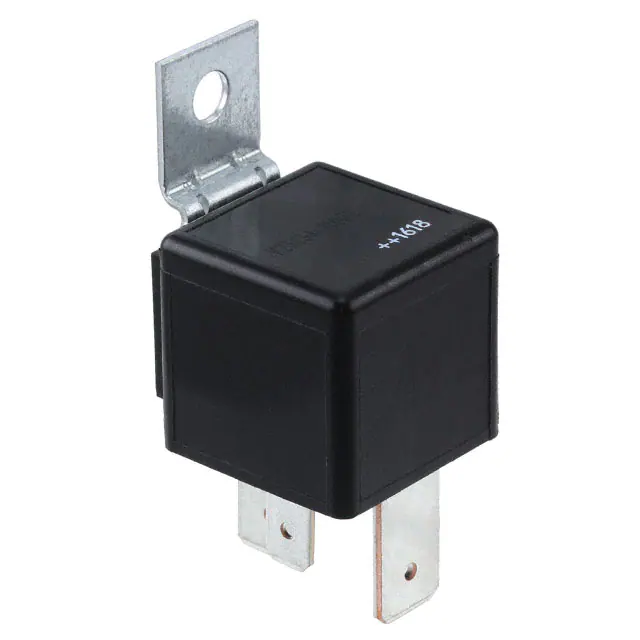

Part Number	V23134J1052D642	V23134A1052C643	V23134-A4052-X543	V23134A4064X551-EV-CBOX	V23134-A3052-X540
Manufacturer	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays
Series	F7	F4	VF4	F4	VF4
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Product Status	Active	Active	Active	Active	Active
Coil Type	Non Latching	Non Latching	Non Latching	Non Latching	Non Latching
Coil Current	-	133 mA	151 mA	66.7 mA	133 mA
Coil Voltage	12VDC	12VDC	12VDC	24VDC	12VDC
Contact Form	SPST-NO (1 Form A)	SPDT (1 Form C)	SPDT (1 Form C)	SPDT (1 Form C)	SPDT (1 Form C)
Contact Rating (Current)	70 A	40 A	40 A	60 A	40 A
Switching Voltage	12VDC - Nom	14VDC - Max	14VDC - Nom	28VDC - Nom	14VDC - Nom
Must Operate Voltage	7.2 VDC	7.2 VDC	7.2 VDC	14.4 VDC	7.2 VDC
Must Release Voltage	1.6 VDC	1.6 VDC	1.2 VDC	2.4 VDC	1.2 VDC
Operate Time	7 ms	7 ms	7 ms	7 ms	7 ms
Release Time	2 ms	2 ms	2 ms	2 ms	2 ms
Features	-	-	Resistor	-	Resistor
Mounting Type	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount	Socketable
Termination Style	Plug In, Quick Connect - Multiple Sizes	Quick Connect - 0.250" (6.3mm)	Plug In, Quick Connect - 0.250" (6.3mm)	Plug In, Quick Connect - 0.250" (6.3mm)	Plug In, Quick Connect - 0.250" (6.3mm)
Operating Temperature	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C
