27-Inch Full HD Format
A wide-format LCD cell designed for compatible desktop monitor assemblies and replacement evaluations.
Hello! now
tms@lcdchip.com
BOE MV270FHB-N20
- Part No.:
- MV270FHB-N20
- Manufacturer:
- BOE
- Category:
- TFT CELL Shipment Type
- Package:
- Description:
- BOE 27" IPS CELL FOB 1920×1080 LVDS 75Hz
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details

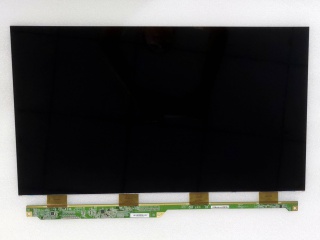

BOE MV270FHB-N20 - 27 Inch Full HD TFT LCD Cell
MV270FHB-N20 is a 27-inch a-Si TFT-LCD cell manufactured by BOE. Featuring Full HD resolution, ADS display technology and a matte antiglare surface, this model is intended primarily for desktop monitor assemblies. It does not include a backlight or touch screen.
Verify final compatibility using the applicable BOE datasheet.
Product Overview
The BOE MV270FHB-N20 is a 27-inch amorphous silicon TFT-LCD cell with a 1920 × 1080 Full HD image format. Its ADS, normally black display mode is designed for compatible desktop monitor applications.
This product is an LCD cell rather than a complete display module. It has no integrated backlight or touch screen. Manufacturers must provide compatible illumination, display electronics and mechanical components to create a finished display assembly.
The matte antiglare surface helps manage surface reflections, while the LVDS signal interface requires a matching display controller and connector arrangement.
Selection Note
Check the exact part number, interface, backlight assembly and mechanical fit before ordering. Other MV270FHB series models are not automatically interchangeable.
Key Advantages
ADS Display Technology
ADS, normally black technology supports wide-viewing monitor designs when integrated into a suitable display system.
Matte Antiglare Surface
The antiglare treatment helps reduce distracting reflections in suitable viewing environments.
Flexible Cell Integration
Cell-only construction allows selection of a compatible external backlight and supporting components.
Key Features
-
BOE Manufacturing: A display cell from BOE Technology Group Co., Ltd.
-
Full HD Display: 1920 × 1080 image format for compatible monitor designs.
-
ADS LCD Technology: Normally black, transmissive display architecture.
-
LVDS Interface: Requires compatible signal timing, connector and controller electronics.
-
Antiglare Finish: Matte display surface for reflection management.
-
LCD Cell Only: No integrated backlight or touch panel.
Display Integration Notes
The MV270FHB-N20 LCD cell must be matched with the intended display controller, backlight assembly and mechanical housing. Identical diagonal size and resolution do not guarantee interchangeability.
- Verify the exact manufacturer model and revision.
- Confirm LVDS connector, signal mapping and controller compatibility.
- Check backlight optical and mechanical requirements.
- Review mounting dimensions and handling precautions.
- Follow the latest manufacturer documentation before production.
This is not a plug-and-play monitor or a complete backlit LCD module.
Typical Applications
Desktop LCD Monitors
Primary application in compatible 27-inch Full HD monitor assemblies.
Monitor Panel Replacement
Replacement evaluation where the original panel model and assembly requirements match.
Display Assembly Manufacturing
Integration with suitable backlight, controller and mechanical components.
Custom Display Development
Engineering projects subject to optical, electrical and mechanical compatibility checks.
Manufacturer Information and Datasheet
MV270FHB-N20 is manufactured by BOE Technology Group Co., Ltd. It belongs to the MV270FHB series of LCD cells. Related models may differ in assembly details, so the exact ordering number is important.
Review the applicable BOE datasheet for mechanical drawings, electrical requirements, optical characteristics and handling instructions before integration.
Documentation Request
Contact TMS International Tech(HK) Limited to inquire about available MV270FHB-N20 datasheet documentation and sourcing information.
MV270FHB-N20 Price and Sourcing
Looking for the BOE MV270FHB-N20 LCD panel? TMS International Tech(HK) Limited assists customers with product sourcing inquiries, quotations and availability requests.
Model Verification
Specify the exact model and any required revision or label information.
Datasheet Inquiry
Request available documentation for technical evaluation.
Price Quotation
Provide your required quantity for current pricing inquiries.
Availability and Delivery
Confirm stock, lead time, condition and shipment details before ordering.
Include quantity, delivery destination and any special packaging or inspection requirements in your RFQ.
Frequently Asked Questions
What is the BOE MV270FHB-N20?
It is a 27-inch a-Si TFT-LCD cell manufactured by BOE, primarily intended for desktop monitor assemblies.
What is the resolution of MV270FHB-N20?
The panel supports Full HD 1920 × 1080 resolution with a 16:9 aspect ratio.
Does MV270FHB-N20 include a backlight?
No. A compatible external backlight assembly is required for normal display operation.
Does MV270FHB-N20 have a touch screen?
No. The standard LCD cell does not include an integrated touch screen.
Which interface does MV270FHB-N20 use?
It uses an LVDS interface. Confirm the precise signal mapping, connector and timing requirements in the manufacturer datasheet.
Can MV270FHB-N20 replace another 27-inch LCD panel?
Not necessarily. Confirm the exact part number, interface, backlight compatibility and mechanical fit before substitution.
Where can I request the MV270FHB-N20 datasheet?
Contact TMS International Tech(HK) Limited to inquire about available technical documentation.
How can I request MV270FHB-N20 pricing?
Send TMS International Tech(HK) Limited the model number, quantity and delivery requirements to inquire about current pricing and availability.
Reference Notice
Product information is provided for identification and selection guidance. Technical specifications, product condition, availability and compatibility should be verified against the latest applicable BOE documentation and confirmed before ordering. TMS International Tech(HK) Limited is identified as a sourcing contact, not the panel manufacturer.
MV270FHB-N20 Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 27"
- TNVAIPS:
- ADS
- Resolution:
- 1920×1080
- Viewing Area:
- 597.888×336.312
- Outline Size:
- 607.048 × 346.642 (H×V×D)
- Treatment:
- Antiglare (Haze 25%), Hard coating (3H)
- Brightness:
- 0 cd/m²
- Contrast Ratio:
- 1000 : 1 (Typ.) (TM)
- View Direction:
- Symmetry
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 14 (Typ.)(G to G) ms
- Best View on:
- Symmetry
- Work Mode:
- ADS, Normally Black, Transmissive
- Glass Thickness:
- -
- Transmissivity:
- 5.7% (Typ.)(with Polarizer)
- Color Depth:
- 16.7M 99% sRGB
- Backlight:
- No B/L
- Mass:
- 625g (Typ.)
- Touch Screen:
- Without
- Refresh Rate:
- 75Hz
- Driver IC list:
- Built-in COF 8 source chips
- Signal Type:
- LVDS (2 ch, 8-bit) , 30 pins Connector
