Full HD Display Format
The 1920 × 1080 pixel format supports detailed images and text in compatible 23.8-inch monitor designs.
Hello! now
tms@lcdchip.com
BOE MV238FHB-N30
- Part No.:
- MV238FHB-N30
- Manufacturer:
- BOE
- Category:
- TFT CELL Shipment Type
- Package:
- Description:
- BOE 23.8" IPS CELL FOB 1920×1080 LVDS 75Hz
- Quantity:
Unit Price:$202.49
Ext Price:$202.49
- Payment:
- Shipping:
Product Details

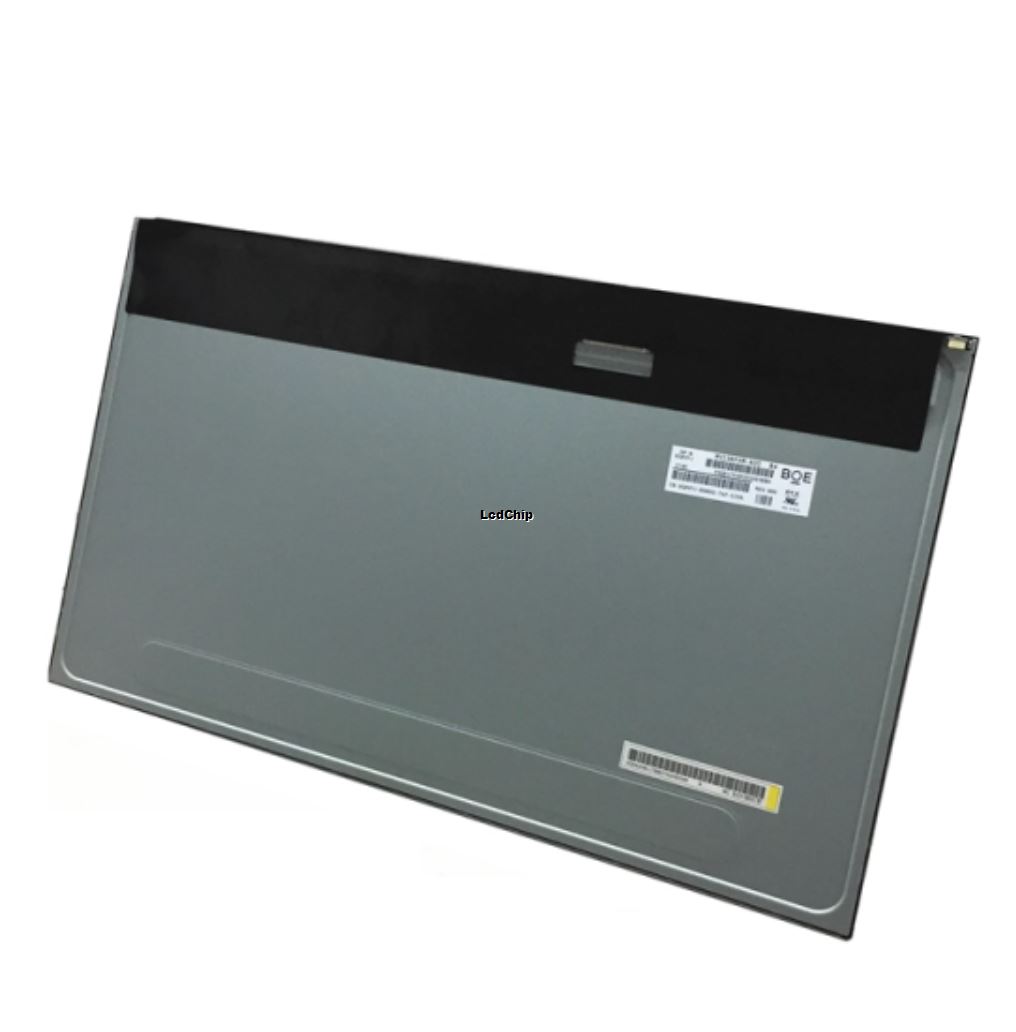

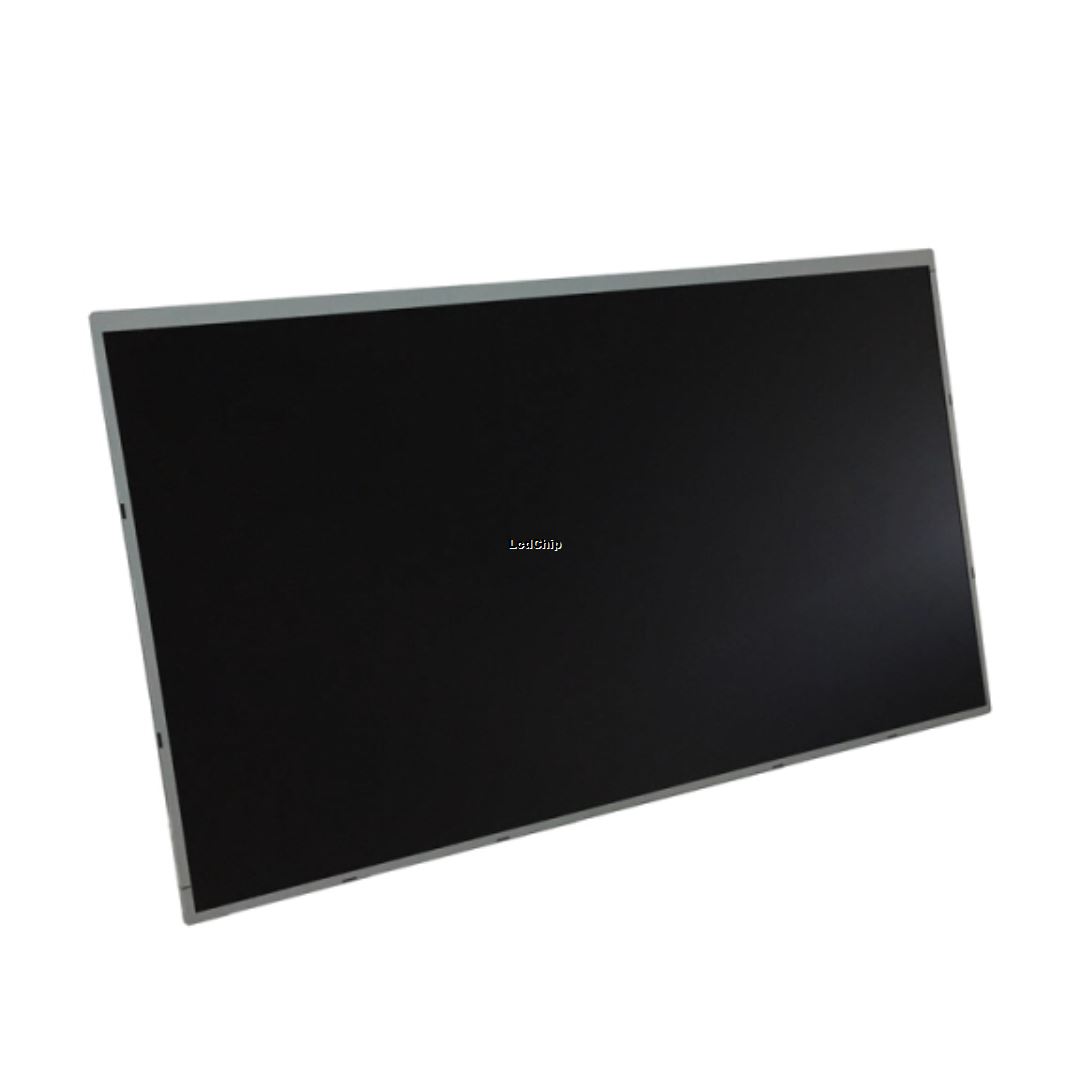

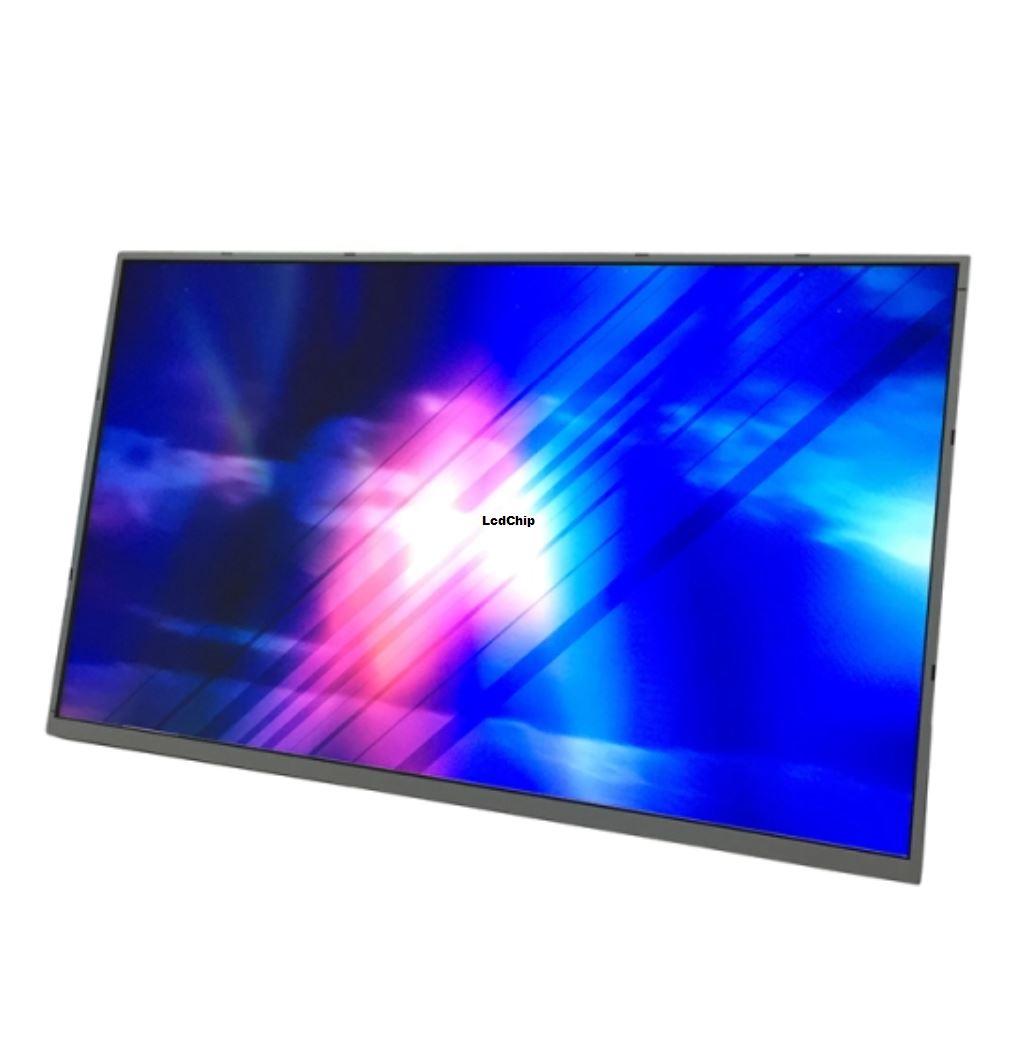

BOE MV238FHB-N30 - 23.8 Inch Full HD TFT-LCD Cell
MV238FHB-N30 is a 23.8-inch Full HD TFT-LCD cell from BOE, designed for integration into compatible monitor and display assemblies. It uses ADS display technology and is supplied without an integrated backlight or touch screen.
Verify integration requirements against the latest applicable BOE datasheet.
Product Overview
The BOE MV238FHB-N30 is a 23.8-inch TFT-LCD cell designed for display manufacturers and integrators working with Full HD monitor assemblies. The panel combines a 1920 × 1080 display format with BOE ADS technology for applications requiring a compatible large-format LCD cell.
As a cell-only product, the MV238FHB-N30 does not include an integrated backlight or touch screen. A finished display assembly therefore requires compatible illumination, electronics, mechanical components, and appropriate integration procedures.
TMS International Tech(HK) Limited assists customers seeking MV238FHB-N30 sourcing information, documentation, pricing, and availability confirmation.
Selection note
Do not confuse an LCD cell with a complete LCD module. Check the exact model, interface, backlight design, and mechanical compatibility before ordering.
Key Advantages
BOE ADS Technology
ADS display technology is suited to applications where consistent viewing performance is an important design consideration.
Cell-Level Integration
The cell-only configuration lets display assemblers select a compatible backlight and supporting components for their finished product.
Established Monitor Size
The 23.8-inch format is relevant to desktop monitors and other compatible commercial display assemblies.
Key Features
-
BOE manufacturer: Identified as a BOE display cell for compatible display assemblies.
-
23.8-inch format: Suitable for projects designed around this display size.
-
Full HD resolution: Features a 1920 × 1080 pixel image format.
-
ADS display mode: Uses BOE ADS display technology.
-
LVDS connectivity: Requires a compatible display controller and correct electrical interface configuration.
-
LCD cell construction: Does not include an integrated backlight or touch panel.
Display Integration Notes
When designing around the MV238FHB-N30 LCD cell, verify that the display controller, backlight assembly, enclosure, and connection scheme match the manufacturer's documentation.
- Check LVDS signal compatibility and connector requirements.
- Use a compatible backlight assembly and associated driving electronics.
- Verify mechanical fit, mounting, and handling requirements.
- Confirm electrical and environmental limits for the intended application.
- Inspect product labels and revision details before replacement or assembly.
A matching diagonal size or resolution alone does not establish drop-in replacement compatibility.
Typical Applications
Desktop Monitor Assemblies
Integration into compatible 23.8-inch Full HD desktop display systems.
Commercial Display Integration
Evaluation for commercial display products requiring a compatible LCD cell.
LCD Cell Replacement
Replacement projects where the original model and assembly requirements have been verified.
Custom Display Development
Engineering projects that can accommodate a separate backlight and supporting display electronics.
Manufacturer Information & Documentation
The MV238FHB-N30 is a BOE display product. For design-in decisions, confirm the exact part number and revision, and refer to the applicable BOE technical documentation.
Datasheet inquiry
Contact TMS International Tech(HK) Limited to inquire about available MV238FHB-N30 datasheet information and sourcing documentation. Documentation availability should be confirmed before purchase.
MV238FHB-N30 Price & Sourcing
Looking for a BOE MV238FHB-N30 supplier? TMS International Tech(HK) Limited welcomes inquiries about this LCD cell, including product identification, requested quantities, pricing, lead times, and availability.
Part Verification
Confirm the exact model and relevant product revision.
Documentation
Ask about available manufacturer datasheet information.
Quotation
Provide the required quantity to request current pricing.
Delivery Inquiry
Confirm current availability and estimated lead time before ordering.
Include the part number MV238FHB-N30, required quantity, delivery destination, and any documentation or condition requirements in your RFQ.
Frequently Asked Questions
What is the BOE MV238FHB-N30?
The BOE MV238FHB-N30 is a 23.8-inch Full HD TFT-LCD cell intended for integration into compatible display assemblies.
What is the resolution of MV238FHB-N30?
The BOE MV238FHB-N30 features a Full HD resolution of 1920 × 1080 pixels.
Does MV238FHB-N30 include a backlight?
No. The MV238FHB-N30 is an LCD cell without an integrated backlight. A compatible backlight assembly is required to build a complete illuminated display.
Does the MV238FHB-N30 have a touch screen?
No. The standard LCD cell does not include a touch screen. Touch capability would require a separate compatible solution.
Which interface does MV238FHB-N30 use?
The panel uses an LVDS interface. Confirm the connector, signal mapping, and electrical requirements in the applicable manufacturer datasheet.
Can MV238FHB-N30 replace another 23.8-inch panel?
Not necessarily. Display size and resolution are insufficient to confirm interchangeability. Verify interface, mechanical dimensions, backlight requirements, and the exact panel revision.
Where can I request MV238FHB-N30 pricing or a datasheet?
Contact TMS International Tech(HK) Limited with the model number and requested quantity to inquire about pricing, availability, and available technical documentation.
Reference Notice
Product information is provided for identification and preliminary selection purposes only. Specifications, product status, documentation, and availability may change. Confirm final requirements against the latest applicable manufacturer datasheet and your purchase quotation.
MV238FHB-N30 Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 23.8"
- TNVAIPS:
- ADS
- Resolution:
- 1920×1080
- Viewing Area:
- 527.04×296.46
- Outline Size:
- 534.04(W)×307.76(H)×1.32(D) mm
- Treatment:
- Brightness:
- 0 cd/m²
- Contrast Ratio:
- 1000:1 (Typ.) (TM)
- View Direction:
- Symmetry
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- Best View on:
- Symmetry
- Work Mode:
- ADS, Normally Black, Transmissive
- Glass Thickness:
- 0.50+0.50 mm ([Panelook copyright, copy is strictly prohibited] It's Depth of CF Depth + Array Depth CELL Depth = CF Depth + Array Depth)
- Transmissivity:
- Color Depth:
- 16.7M 74% NTSC
- Backlight:
- Mass:
- 538g (Typ.)
- Touch Screen:
- Without
- Refresh Rate:
- 75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
- Driver IC list:
- Built-in COF 4 source chips
- Signal Type:

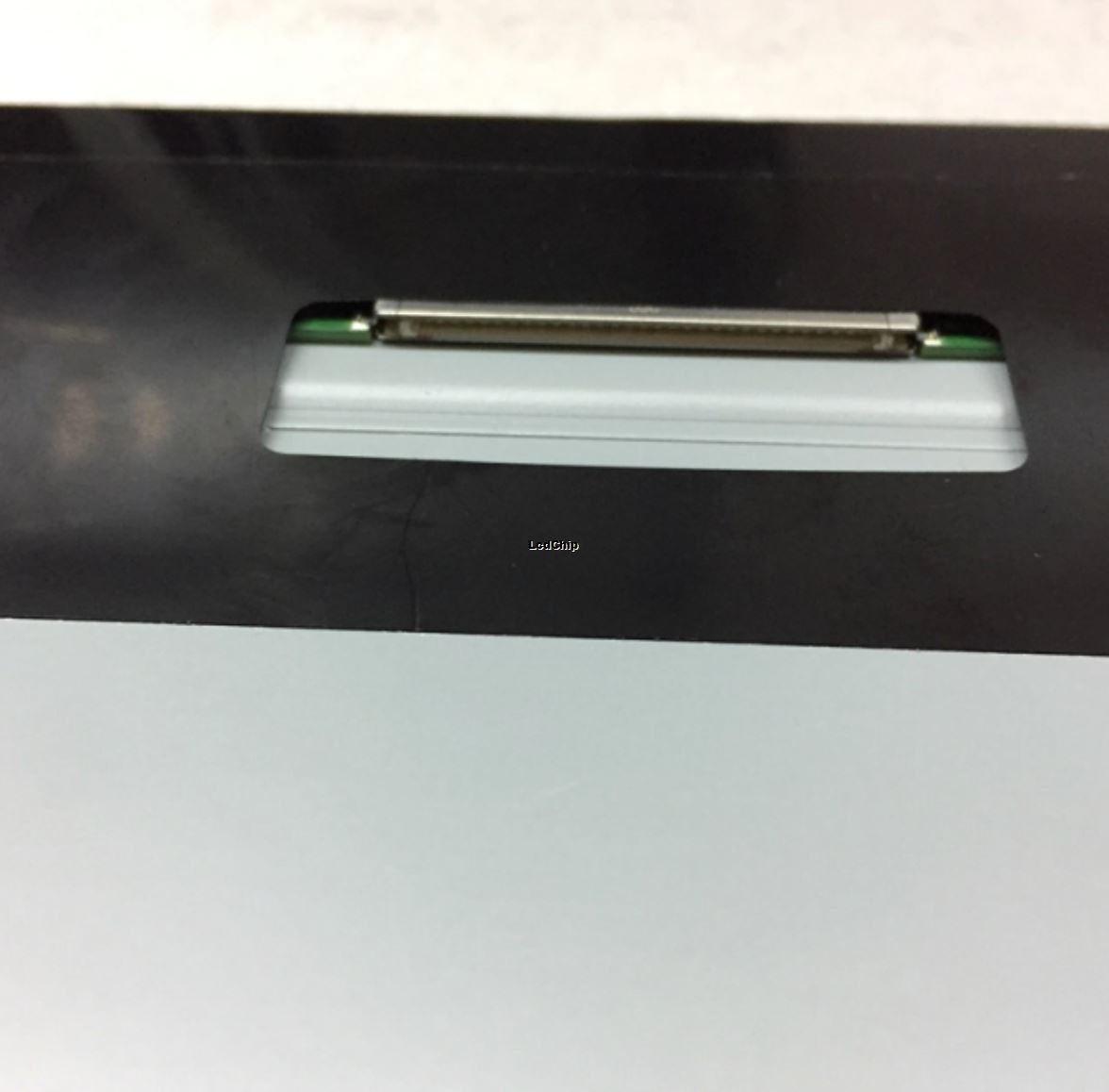

- LVDS (2 ch, 8-bit) , 30 pins Connector
