East Electronics TFM-23
- Part No.:
- TFM-23
- Manufacturer:
- East Electronics
- Category:
- Alarms, Buzzers, and Sirens
- Package:
- Datasheet:
-
TFM-23.pdf
- Description:
- BUZZER 9V 16.5MM WIRE
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TFM-23 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- East Electronics
- Series:
- -
- Packaging:
- Tray
- Product Status:
- Active
- Driver Circuitry:
- -
- Input Type:
- -
- Voltage - Rated:
- 9 V
- Voltage Range:
- 3 ~ 15V
- Frequency:
- 4kHz
- Technology:
- -
- Operating Mode:
- Continuous
- Duration:
- -
- Sound Pressure Level (SPL):
- 80dB @ 9V, 10cm
- Current - Supply:
- 3mA
- Port Location:
- -
- Operating Temperature:
- -20°C ~ 70°C
- Approval Agency:
- -
- Ratings:
- -
- Ingress Protection:
- -
- Mounting Type:
- Wire Lead
- Termination:
- Wire Leads
- Size / Dimension:
- 0.650" Dia (16.50mm)
| Image |  |
 |
 |
 |
 |

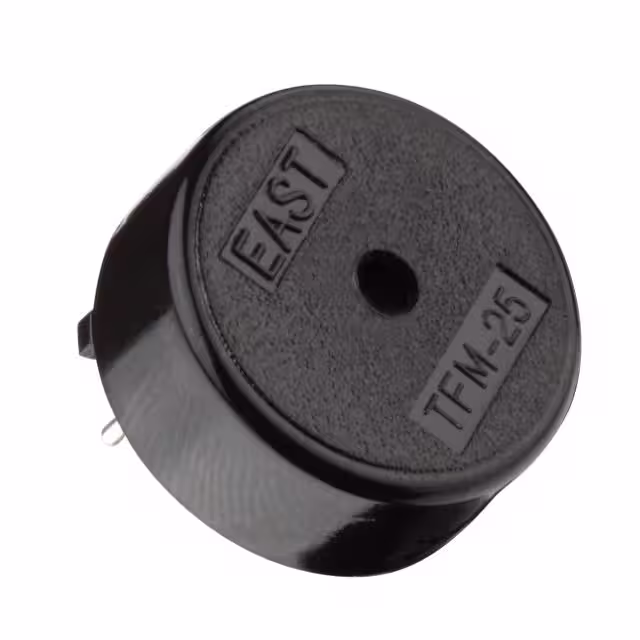

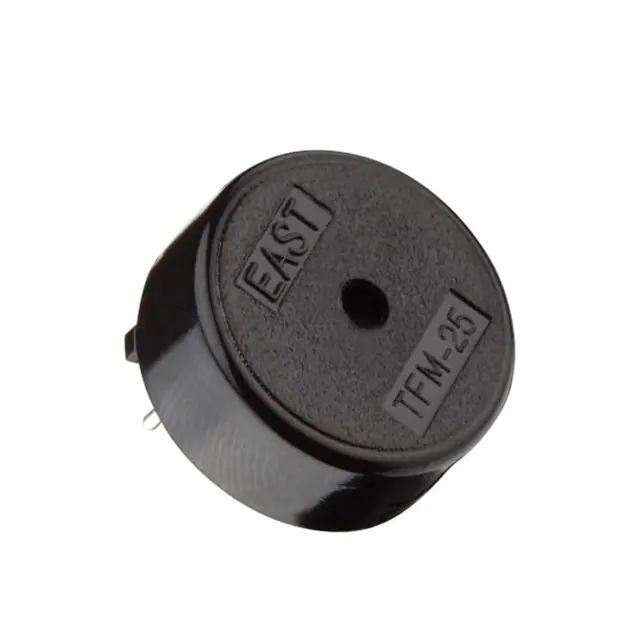

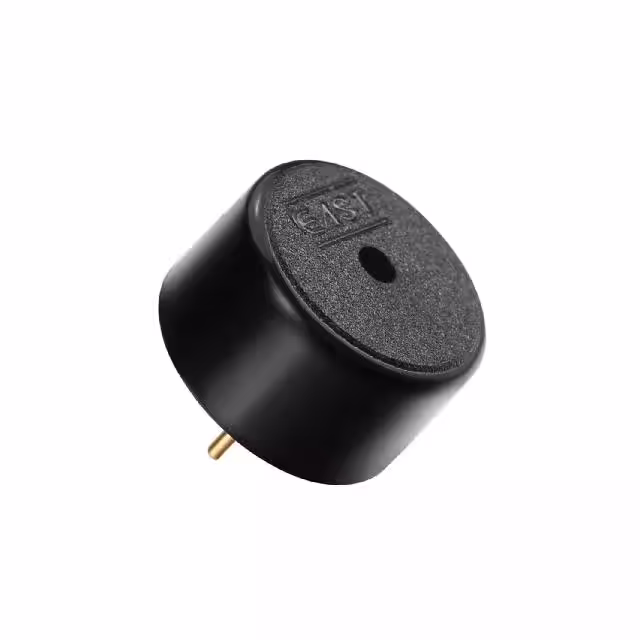

| Part Number | TFM-23 | TFM-59DA-5 | TFM-51 | TFM-25 | TFM-25E |
| Manufacturer | East Electronics | East Electronics | East Electronics | East Electronics | East Electronics |
| Series | - | - | - | - | TFM |
| Packaging | Tray | Tray | Tray | Tray | Box |
| Product Status | Active | Active | Active | Active | Active |
| Driver Circuitry | - | - | - | - | Transducer, Externally Driven |
| Input Type | - | - | - | - | Peak-Peak Signal |
| Voltage - Rated | 9 V | 3 V | 9 V | 9 V | 3 V |
| Voltage Range | 3 ~ 15V | 3 ~ 25V | 3 ~ 15V | 3 ~ 15V | 25V |
| Frequency | 4kHz | 4kHz | 4.1kHz | 4kHz | 2kHz |
| Technology | - | - | - | - | Piezo |
| Operating Mode | Continuous | Continuous | Continuous | Continuous | - |
| Duration | - | - | - | - | - |
| Sound Pressure Level (SPL) | 80dB @ 9V, 10cm | 70dB @ 3V, 10cm | 80dB @ 9V, 10cm | 80dB @ 9V, 10cm | 60.46dB @ 3V, 30cm |
| Current - Supply | 3mA | - | 3mA | 2.5mA | 3mA |
| Port Location | - | - | - | - | Top |
| Operating Temperature | -20°C ~ 70°C | -40°C ~ 85°C | -20°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 85°C |
| Approval Agency | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Ingress Protection | - | - | - | - | - |
| Mounting Type | Wire Lead | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Wire Leads | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | 0.650" Dia (16.50mm) | 0.480" Dia (12.20mm) | 0.866" Dia (22.00mm) | 0.661" Dia (16.80mm) | 0.669" Dia (17.00mm) |
