Soberton Inc. WT-1205
- Part No.:
- WT-1205
- Manufacturer:
- Soberton Inc.
- Category:
- Alarms, Buzzers, and Sirens
- Package:
- Datasheet:
-
WT-1205.pdf
- Description:
- BUZZER MAGNETIC 5V 12MM TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
WT-1205 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Soberton Inc.
- Series:
- WT
- Packaging:
- Bulk
- Product Status:
- Active
- Driver Circuitry:
- Transducer, Externally Driven
- Input Type:
- Zero-Peak Signal
- Voltage - Rated:
- 5 V
- Voltage Range:
- 4 ~ 6V
- Frequency:
- 2.4kHz
- Technology:
- Magnetic
- Operating Mode:
- Single Tone
- Duration:
- -
- Sound Pressure Level (SPL):
- 87dB @ 5V, 10cm
- Current - Supply:
- 50mA
- Port Location:
- Top
- Operating Temperature:
- -20°C ~ 70°C
- Approval Agency:
- -
- Ratings:
- Washable
- Ingress Protection:
- -
- Mounting Type:
- Through Hole
- Termination:
- PC Pins
- Size / Dimension:
- 0.472" Dia (12.00mm)
| Image |  |
 |
 |
 |
 |

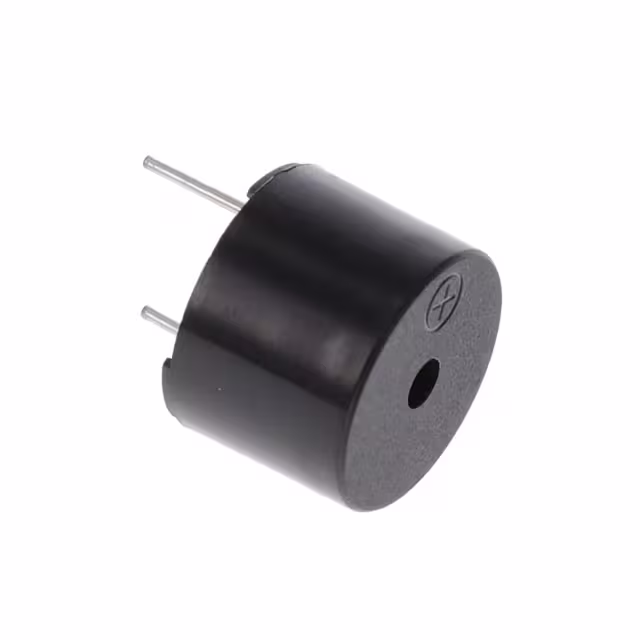

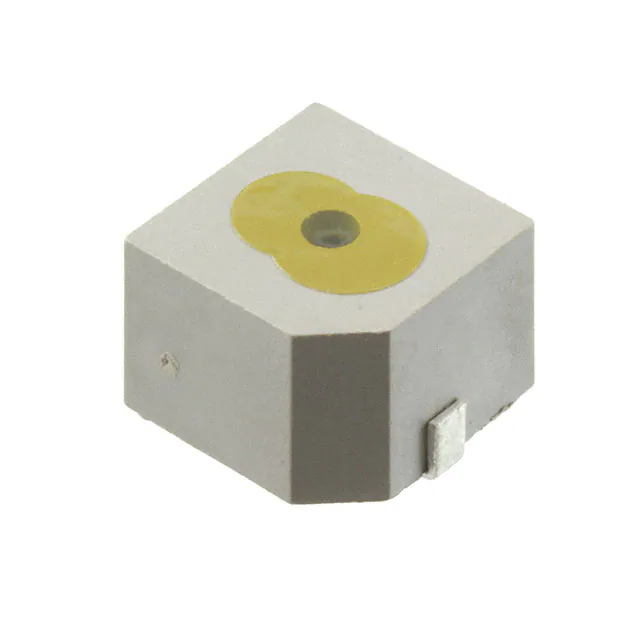

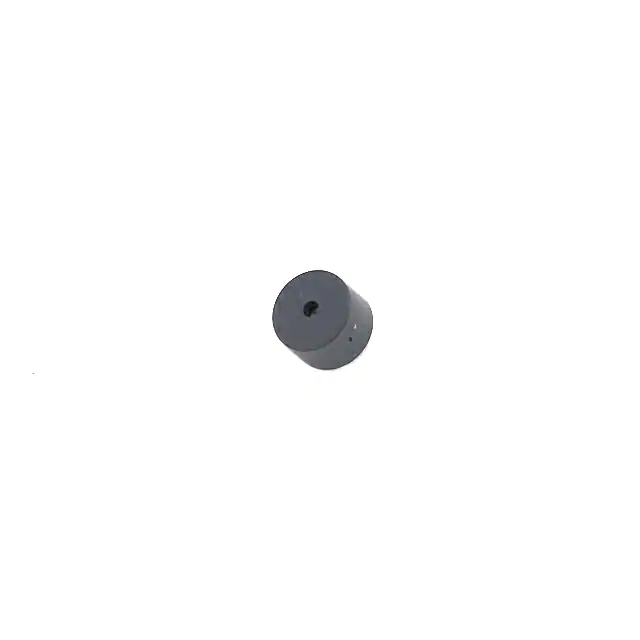

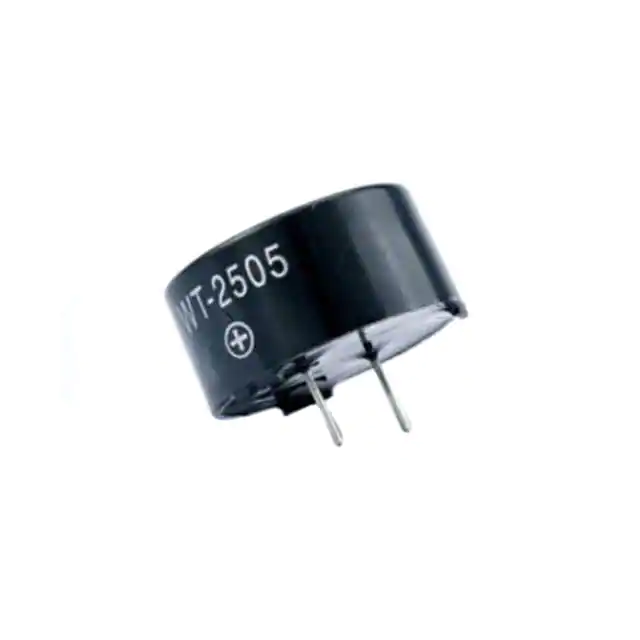

| Part Number | WT-1205 | WT-2505 | WT-0905P | WT-1310 | WT-1209T |
| Manufacturer | Soberton Inc. | Soberton Inc. | Soberton Inc. | Soberton Inc. | Soberton Inc. |
| Series | WT | WT | WT | WST | WT |
| Packaging | Bulk | Tray | Tray | Tape & Reel (TR) | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Driver Circuitry | Transducer, Externally Driven | Transducer, Externally Driven | Indicator, Internally Driven | Indicator, Internally Driven | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal | Zero-Peak Signal | Zero-Peak Signal | Zero-Peak Signal | - |
| Voltage - Rated | 5 V | 6 V | 5 V | 1.5 V | 5 V |
| Voltage Range | 4 ~ 6V | 3 ~ 7V | 4 ~ 6V | 1 ~ 3V | 4 ~ 7V |
| Frequency | 2.4kHz | 730Hz | 2.73kHz | 2.4kHz | 2.4kHz |
| Technology | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic |
| Operating Mode | Single Tone | Single Tone | Single Tone | Single Tone | - |
| Duration | - | - | - | - | - |
| Sound Pressure Level (SPL) | 87dB @ 5V, 10cm | 85dB @ 6V, 10cm | 85dB @ 5V, 10cm | 75dB @ 1.5V, 10cm | - |
| Current - Supply | 50mA | 80mA | 80mA | 30mA | 70mA |
| Port Location | Top | Top | Top | Top | - |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 60°C | -30°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Approval Agency | - | - | - | - | - |
| Ratings | Washable | Washable | Washable | Washable | - |
| Ingress Protection | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole |
| Termination | PC Pins | PC Pins | PC Pins | Solder Pads | PC Pins |
| Size / Dimension | 0.472" Dia (12.00mm) | 0.984" Dia (25.00mm) | 0.354" Dia (9.00mm) | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.472" Dia (12.00mm) |
- Include Parts
- Popular Search
The following parts include "WT-1205" in Silicon Labs WT-1205.
- Part Number
- Manufacturer
- Package
- Description
- WT-1205 Soberton Inc. BUZZER MAGNETIC 5V 12MM TH
- AT-1224-TWT-5V-2-R PUI Audio, Inc. BUZZER MAGNETIC 5V 12MM TH
- PS1240P02BT TDK Corporation BUZZER PIEZO 3V 12.2MM TH
- AT-1224-TWT-12V-2-R PUI Audio, Inc. BUZZER MAGNETIC 12V 12MM TH
- PKM22EPPH2001-B0 Murata Electronics BUZZER PIEZO 1.5V 22MM TH
- CEM-1203(42) Same Sky (Formerly CUI Devices) BUZZER MAGNETIC 3.5V 12.00MM TH
- PS1440P02BT TDK Corporation BUZZER PIEZO 3V 14MM TH
- PB-1226PEAQ Mallory Sonalert Products Inc. BUZZER MAGNETIC 1.5V 12MM TH
- CEM-1206S Same Sky (Formerly CUI Devices) BUZZER MAGNETIC 5V 12.00MM TH
- CMT-0904-83T Same Sky (Formerly CUI Devices) BUZZER MAGNETIC 3V 9MM TH
