DB Unlimited TE082703-2
- Part No.:
- TE082703-2
- Manufacturer:
- DB Unlimited
- Category:
- Alarms, Buzzers, and Sirens
- Package:
- Datasheet:
-
TE082703-2.pdf
- Description:
- BUZZER ELECTRO 3.6V 0.3X0.3 SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TE082703-2 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- DB Unlimited
- Series:
- -
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Driver Circuitry:
- Transducer, Externally Driven
- Input Type:
- Zero-Peak Signal
- Voltage - Rated:
- 3.6 V
- Voltage Range:
- 2.5 ~ 4.5V
- Frequency:
- 2.73kHz
- Technology:
- Electromechanical
- Operating Mode:
- -
- Duration:
- -
- Sound Pressure Level (SPL):
- 85dB @ 3.6V, 10cm
- Current - Supply:
- 90mA
- Port Location:
- Side
- Operating Temperature:
- -30°C ~ 80°C
- Approval Agency:
- -
- Ratings:
- -
- Ingress Protection:
- -
- Mounting Type:
- Surface Mount
- Termination:
- Solder Pads
- Size / Dimension:
- 0.335" L x 0.335" W (8.50mm x 8.50mm)

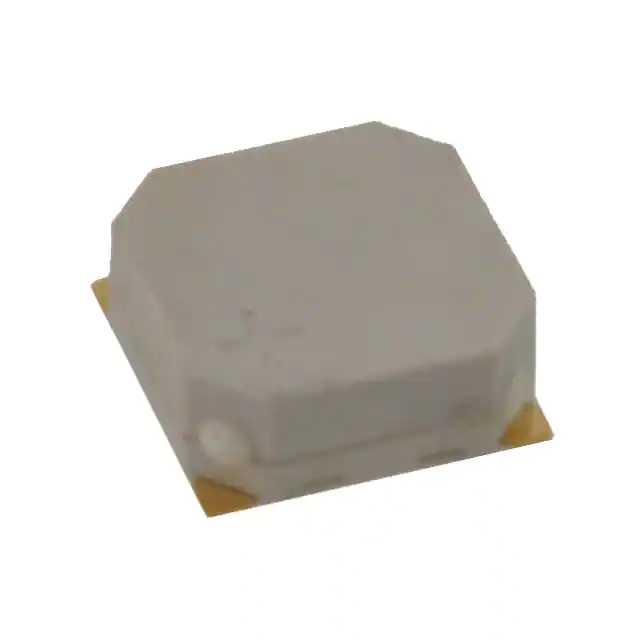

| Image |  |
 |
 |
 |
| Part Number | TE082703-2 | TE082703-3 | TE082703-8 | TE082703-1 |
| Manufacturer | DB Unlimited | DB Unlimited | DB Unlimited | DB Unlimited |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active |
| Driver Circuitry | Transducer, Externally Driven | Transducer, Externally Driven | Transducer, Externally Driven | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal | Zero-Peak Signal | Zero-Peak Signal | Zero-Peak Signal |
| Voltage - Rated | 3.6 V | 3.6 V | 3.6 V | 3.6 V |
| Voltage Range | 2.5 ~ 4.5V | 2.5 ~ 4.5V | 3 ~ 5V | 2.5 ~ 4.5V |
| Frequency | 2.73kHz | 2.73kHz | 2.73kHz | 2.73kHz |
| Technology | Electromechanical | Electromechanical | Electromechanical | Electromechanical |
| Operating Mode | - | - | - | - |
| Duration | - | - | - | - |
| Sound Pressure Level (SPL) | 85dB @ 3.6V, 10cm | 85dB @ 3.6V, 10cm | 90dB @ 3.6V, 5cm | 85dB @ 3.6V, 10cm |
| Current - Supply | 90mA | 100mA | 80mA | 100mA |
| Port Location | Side | Top | Side | Side |
| Operating Temperature | -30°C ~ 80°C | -30°C ~ 70°C | -30°C ~ 70°C | -40°C ~ 105°C |
| Approval Agency | - | - | - | - |
| Ratings | - | - | - | - |
| Ingress Protection | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination | Solder Pads | Solder Pads | Solder Pads | Solder Pads |
| Size / Dimension | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) |
