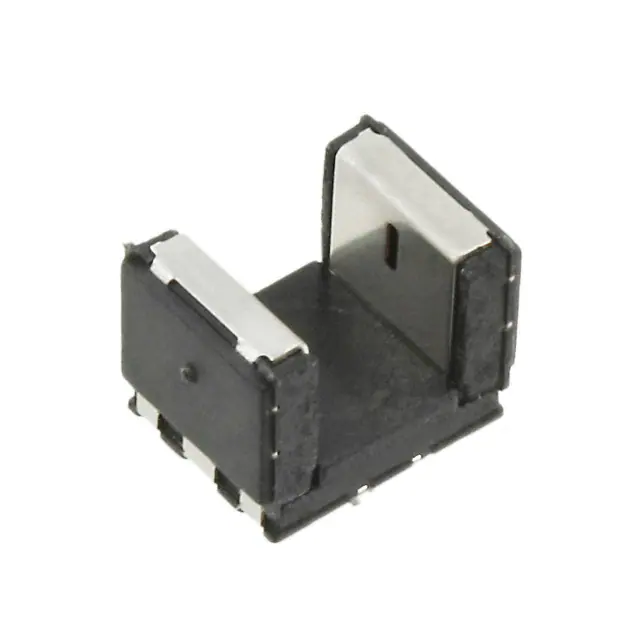

Vishay Semiconductor Opto Division TCPT1300X01
- Part No.:
- TCPT1300X01
- Manufacturer:
- Vishay Semiconductor Opto Division
- Package:
- 6-SMD
- Datasheet:
-
TCPT1300X01.pdf
- Description:
- SENSOR OPT SLOT PHOTOTRANS 6SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TCPT1300X01 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Vishay Semiconductor Opto Division
- Series:
- -
- Package/Case:
- 6-SMD
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Sensing Distance:
- 0.118" (3mm)
- Sensing Method:
- Through-Beam
- Output Configuration:
- Phototransistor
- Current - DC Forward (If) (Max):
- 25 mA
- Current - Collector (Ic) (Max):
- 20 mA
- Voltage - Collector Emitter Breakdown (Max):
- 20 V
- Response Time:
- 20µs, 30µs
- Operating Temperature:
- -40°C ~ 105°C
- Grade:
- Automotive
- Qualification:
- AEC-Q101
- Mounting Type:
- Surface Mount
| Image |  |
| Part Number | TCPT1300X01 |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Package/Case | 6-SMD |
| Packaging | Tape & Reel (TR) |
| Product Status | Active |
| Sensing Distance | 0.118" (3mm) |
| Sensing Method | Through-Beam |
| Output Configuration | Phototransistor |
| Current - DC Forward (If) (Max) | 25 mA |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 20 V |
| Response Time | 20µs, 30µs |
| Operating Temperature | -40°C ~ 105°C |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
