Microchip Technology APTM20UM03FAG
- Part No.:
- APTM20UM03FAG
- Manufacturer:
- Microchip Technology
- Category:
- Single FETs, MOSFETs
- Package:
- SP6
- Description:
- MOSFET N-CH 200V 580A SP6
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
APTM20UM03FAG - Microsemi 200V 515A Full Bridge MOSFET Power Module
The APTM20UM03FAG is a high-power Full Bridge MOSFET module from Microsemi (a Microchip brand), built with advanced Linear MOSFET technology. Designed for high-efficiency power conversion, it features an ultra-low on-resistance of 3.5 mΩ and handles a continuous current of up to 515A at 200V. This module is the benchmark for industrial systems requiring compact integration and extreme power density.
Key Specification: This module integrates four MOSFETs in a full-bridge configuration within a specialized SP6 Package, offering high thermal performance and simplified busbar connection.
Product Overview
The APTM20UM03FAG is engineered for high-current applications where space and thermal management are critical constraints. By integrating a complete full-bridge power stage into a single module, it drastically reduces parasitic inductance compared to discrete solutions, enabling faster switching and higher system efficiency.
This module is particularly favored in Motor Control and Uninterruptible Power Supplies (UPS) due to its ruggedness and ease of mounting. The internal layout is optimized for symmetrical current sharing, ensuring long-term reliability in demanding 24/7 industrial environments.
About Microsemi (Microchip Technology)
Microsemi Corporation, a wholly-owned subsidiary of Microchip Technology Inc., is a premier supplier of high-performance semiconductor solutions. They are globally recognized for their leadership in power electronics, particularly in high-reliability aerospace, defense, and industrial markets.
Microsemi's power modules are known for their advanced packaging technology and high-current silicon integration, helping engineers solve complex thermal and mechanical challenges in modern power system design.
Key Advantages
Minimizes conduction losses, significantly improving overall system efficiency and reducing cooling requirements.
Simplifies PCB layout and reduces component count by housing four high-power MOSFETs in one module.
Supports up to 515A (Tc=25°C), making it suitable for heavy-duty industrial welding and motor drives.
Improves switching performance and reduces noise interference by providing a dedicated return path for the gate signal.

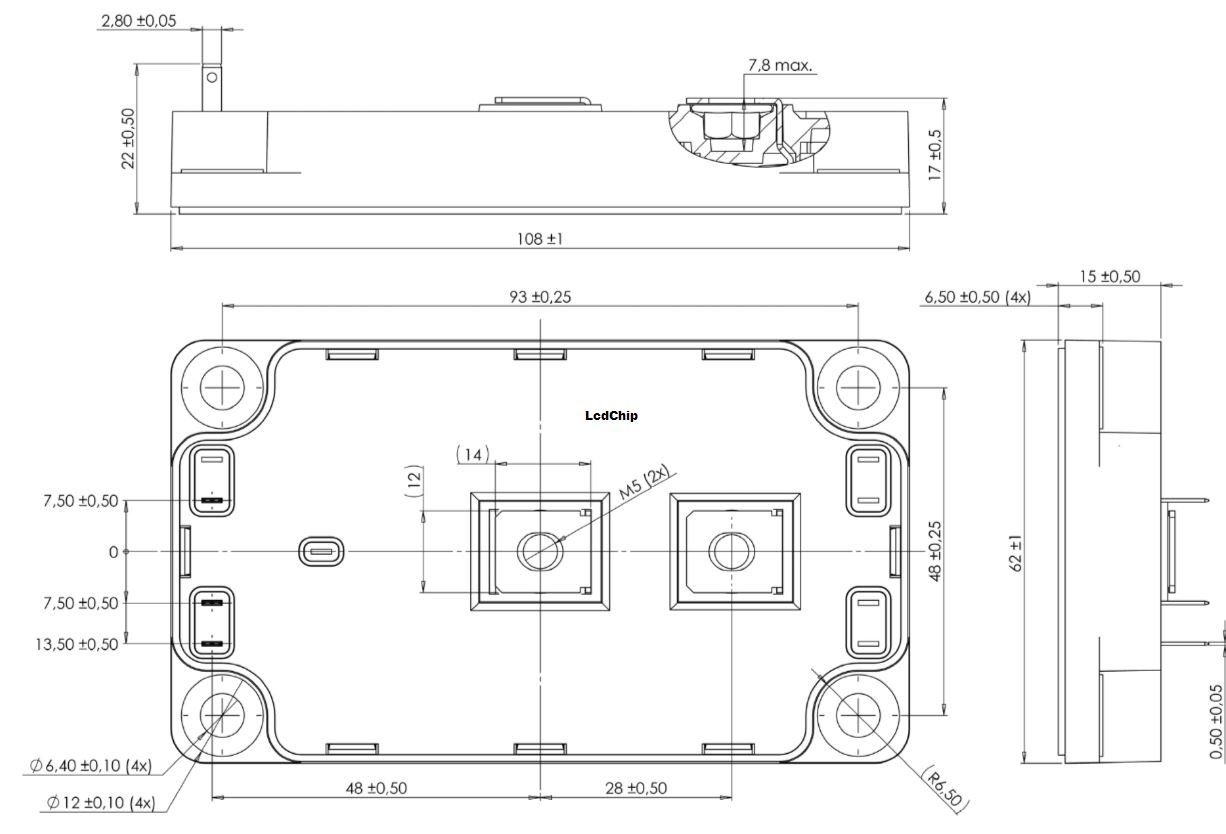

Package & Mechanical Details
The APTM20UM03FAG utilizes the SP6 Package (often referred to as SP6-P). This package is designed for high-power density with an AlN substrate for superior thermal conductivity.
- Mounting: Low profile package for direct heatsink mounting with optimized screw positions.
- Isolation: Features 2500V isolation voltage from terminals to the baseplate.
- Terminals: High-current screw terminals for reliable busbar or heavy-gauge wire connections.
Pin Functions & Terminal Map
As a Full Bridge module, the APTM20UM03FAG provides dedicated terminals for the DC input, AC output, and gate control signals.
Key Specifications (@ Tj = 25°C)
| Part Number | APTM20UM03FAG |
|---|---|
| Manufacturer | Microsemi (Microchip) |
| Drain-Source Voltage ($V_{DSS}$) | 200 V |
| Continuous Drain Current ($I_D$) | 515 A (@ Tc=25°C) |
| On-Resistance ($R_{DS(on)}$) | 3.5 mΩ (Max) |
| Total Gate Charge ($Q_g$) | 1120 nC |
| Configuration | Full Bridge |
| Package Style | SP6 (SP6-P) |
Equivalent & Replacement Guide
Based on image_f93018.jpg, several functional equivalents exist for the APTM20UM03FAG. Engineers should verify terminal spacing and gate drive characteristics before selection.
- MD680SGN100B3S (Starpower): A high-performance Functional Equivalent MOSFET module from Starpower, widely used in industrial motor drives.
- MD630HFN150B3S (Starpower): Suitable for applications requiring different voltage/current trade-offs in a similar module footprint.
- XNM700B03KA (Xiner): A compatible Chinese-domestic alternative for cost-sensitive power conversion projects.
Typical Applications

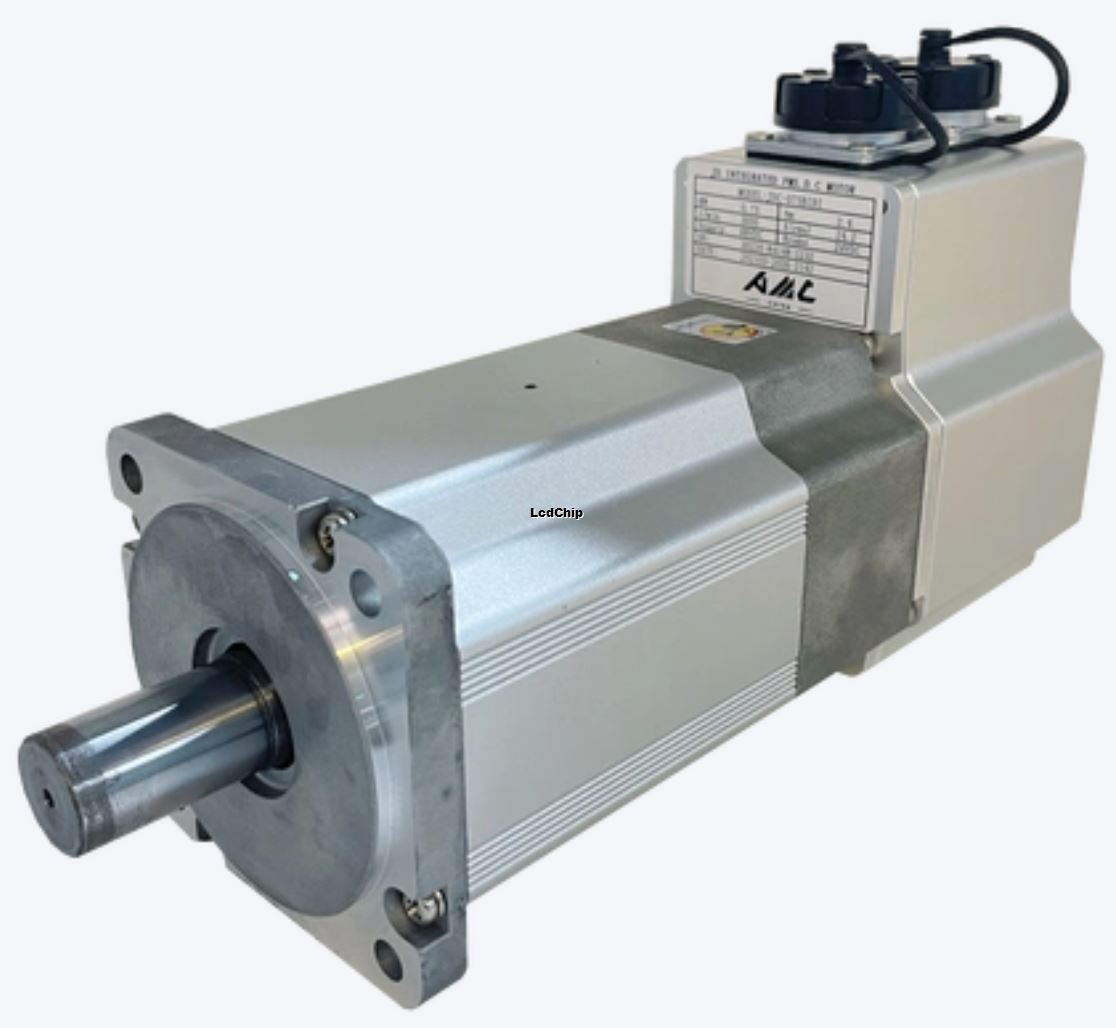

AC/DC Motor Drives
Ideal for high-current traction motors and heavy-duty industrial fans/pumps.
Industrial Welding
Provides stable and high-current output for arc welding and plasma cutting machines.

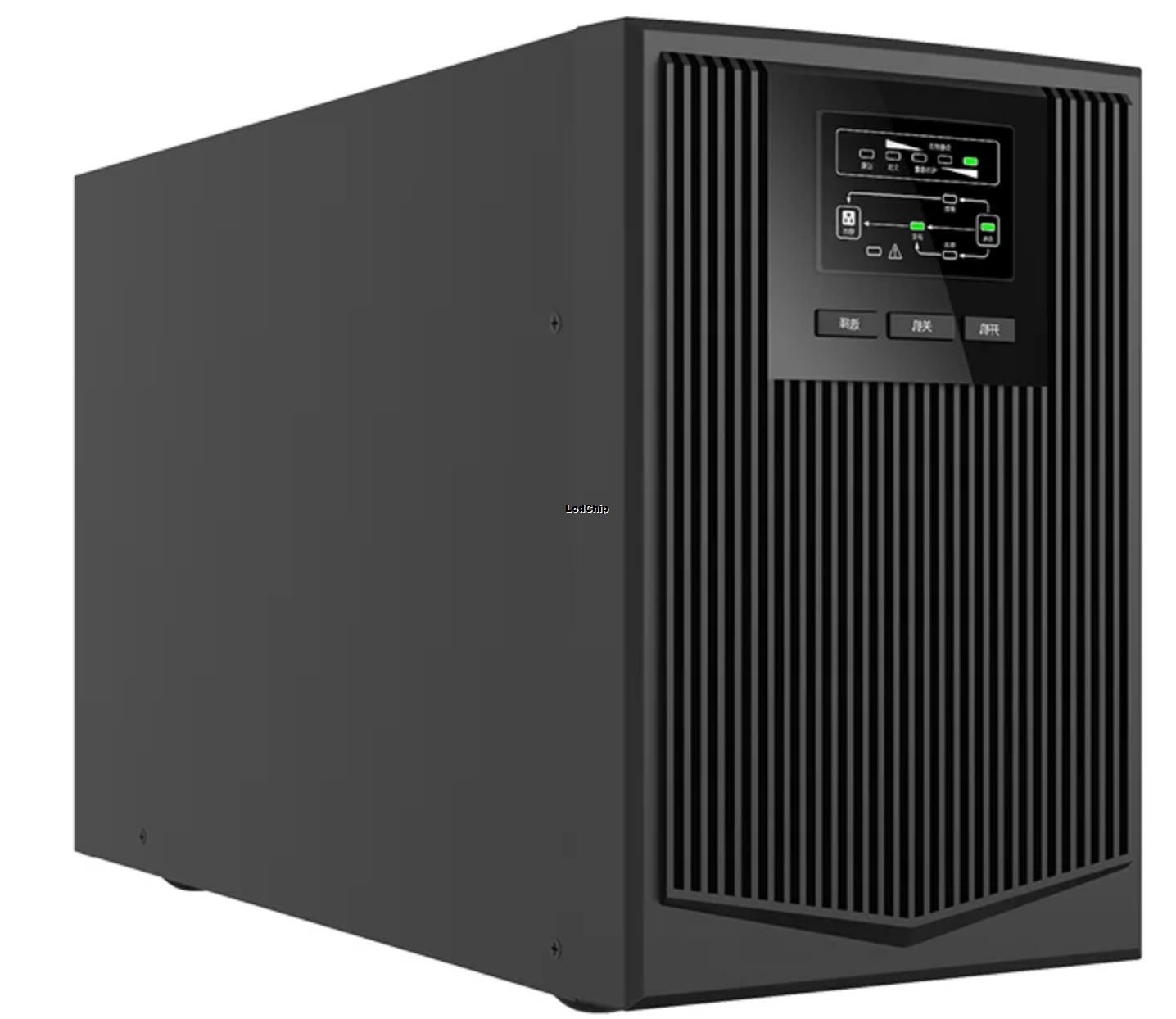

UPS Systems
Core power stage for high-capacity uninterruptible power supplies in data centers.
Quality & Authenticity
- Traceability: Full manufacturer lot code and date code tracking to ensure genuine Microsemi hardware.
- Thermal Testing: 100% tested for isolation voltage and thermal contact integrity.
- Packaging: Shipped in anti-static, shock-resistant industrial module trays.
Technical FAQ
Does this module include internal thermistors for temperature monitoring?
Can I parallel multiple APTM20UM03FAG modules?
Disclaimer
APTM20UM03FAG Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Microchip Technology
- Series:
- POWER MOS 7®
- Package/Case:
- SP6
- Packaging:
- Bulk
- Product Status:
- Active
- FET Type:
- N-Channel
- Technology:
- MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):
- 200 V
- Current - Continuous Drain (Id) @ 25°C:
- 580A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):
- 10V
- Rds On (Max) @ Id, Vgs:
- 3.6mOhm @ 290A, 10V
- Vgs(th) (Max) @ Id:
- 5V @ 15mA
- Gate Charge (Qg) (Max) @ Vgs:
- 840 nC @ 10 V
- Vgs (Max):
- ±30V
- Input Capacitance (Ciss) (Max) @ Vds:
- 43300 pF @ 25 V
- FET Feature:
- -
- Power Dissipation (Max):
- 2270W (Tc)
- Operating Temperature:
- -40°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Chassis Mount
- Supplier Device Package:
- SP6
