QST QT252S-20.000MAHV-T
- Part No.:
- QT252S-20.000MAHV-T
- Manufacturer:
- QST
- Category:
- Crystals
- Package:
- 4-SMD, No Lead
- Datasheet:
-
QT252S-20.000MAHV-T.pdf
- Description:
- 2.5x2.0 XTAL 30ppm 30ppm 8pF
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
QT252S-20.000MAHV-T Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- QST
- Series:
- QT252S
- Package/Case:
- 4-SMD, No Lead
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- MHz Crystal
- Frequency:
- 20 MHz
- Frequency Stability:
- ±30ppm
- Frequency Tolerance:
- ±30ppm
- Load Capacitance:
- 8pF
- ESR (Equivalent Series Resistance):
- 100 Ohms
- Operating Mode:
- Fundamental
- Operating Temperature:
- -40°C ~ 85°C
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- -
- Size / Dimension:
- 0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max):
- 0.022" (0.55mm)
| Image |  |
 |
 |
|
|

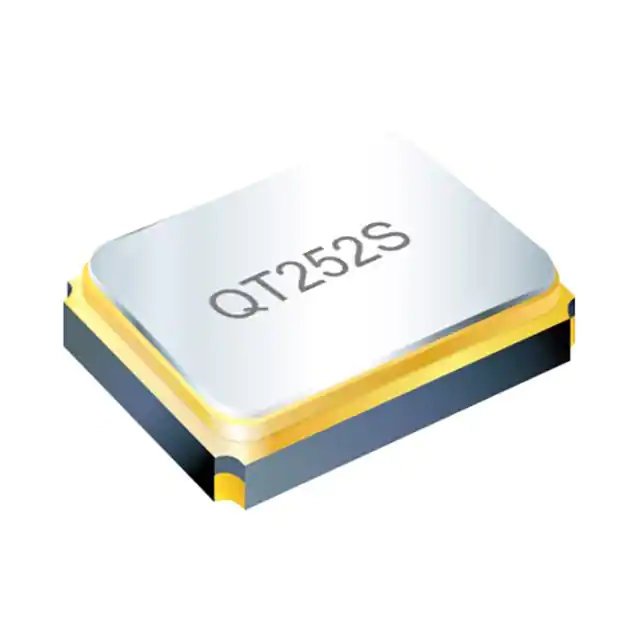

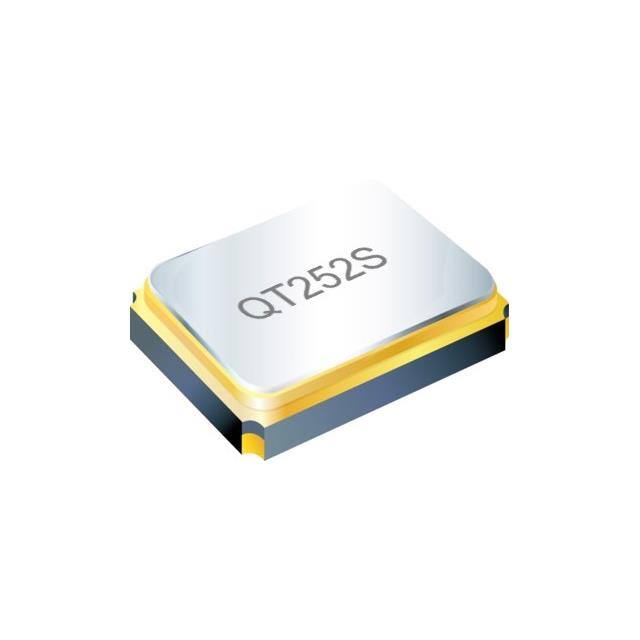

| Part Number | QT252S-24.576MAAJ-T | QT252S-38.400MAAV-T | QT252S-40.000MAAE-T | QT252S-30.000MAAV-T | QT252S-26.000MAAV-T |
| Manufacturer | QST | QST | QST | QST | QST |
| Series | QT252S | QT252S | QT252S | QT252S | QT252S |
| Package/Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Type | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal |
| Frequency | 24.576 MHz | 38.4 MHz | 40 MHz | 30 MHz | 26 MHz |
| Frequency Stability | ±30ppm | ±30ppm | ±30ppm | ±30ppm | ±30ppm |
| Frequency Tolerance | ±30ppm | ±30ppm | ±30ppm | ±30ppm | ±30ppm |
| Load Capacitance | 18pF | 8pF | 12pF | 8pF | 8pF |
| ESR (Equivalent Series Resistance) | 100 Ohms | 60 Ohms | 60 Ohms | 60 Ohms | 100 Ohms |
| Operating Mode | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) |
