Bourns Inc. PWR220T-20-10R0F
- Part No.:
- PWR220T-20-10R0F
- Manufacturer:
- Bourns Inc.
- Category:
- Through Hole Resistors
- Package:
- TO-220-2, Variant
- Description:
- RES 10 OHM 1% 20W TO220-2
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PWR220T-20-10R0F Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Bourns Inc.
- Series:
- PWR220T-20
- Packaging:
- Tube
- Product Status:
- Active
- Resistance:
- 10 Ohms
- Tolerance:
- ±1%
- Power (Watts):
- 20W
- Composition:
- Thick Film
- Features:
- Automotive AEC-Q200, Current Sense, Pulse Withstanding
- Temperature Coefficient:
- ±100ppm/°C
- Operating Temperature:
- -55°C ~ 155°C
- Supplier Device Package:
- TO-220-2
- Size / Dimension:
- 0.398" L x 0.157" W (10.10mm x 4.00mm)
- Height - Seated (Max):
- 0.575" (14.60mm)
- Number of Terminations:
- 2
- Failure Rate:
- -

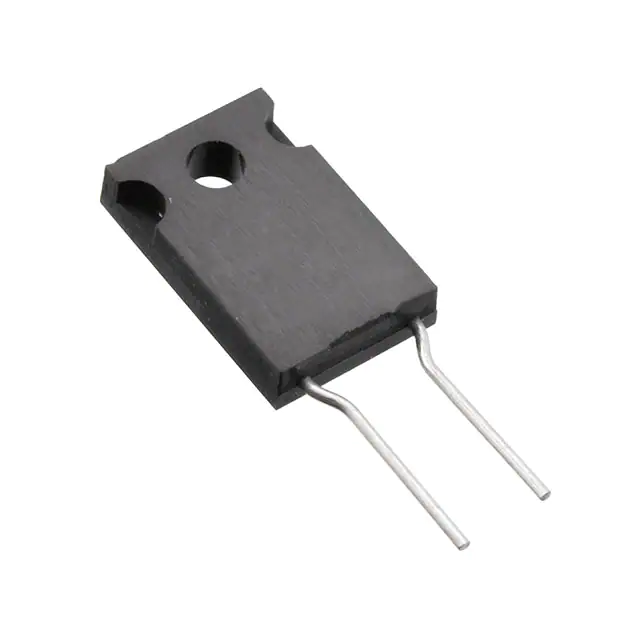

| Image |  |
|
|
 |
 |
| Part Number | PWR220T-20-3300F | PWR220T-20-10R0F | PWR220T-20-R100F | PWR220T-20-R500J | PWR220T-35-2R50F |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Series | PWR220T-20 | PWR220T-20 | PWR220T-20 | PWR220T-20 | PWR220T-35 |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Resistance | 330 Ohms | 10 Ohms | 100 mOhms | 500 mOhms | 2.5 Ohms |
| Tolerance | ±1% | ±1% | ±1% | ±5% | ±1% |
| Power (Watts) | 20W | 20W | 20W | 20W | 35W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | Automotive AEC-Q200, Current Sense, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Pulse Withstanding |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Supplier Device Package | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 |
| Size / Dimension | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.398" L x 0.157" W (10.10mm x 4.00mm) |
| Height - Seated (Max) | 0.575" (14.60mm) | 0.575" (14.60mm) | 0.575" (14.60mm) | 0.575" (14.60mm) | 0.575" (14.60mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - |
