Eaton - Electronics Division PHB-5R0H505-R
- Part No.:
- PHB-5R0H505-R
- Manufacturer:
- Eaton - Electronics Division
- Package:
- Datasheet:
-
PHB-5R0H505-R.pdf
- Description:
- CAP 5F -10% +30% 5V T/H
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PHB-5R0H505-R Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Eaton - Electronics Division
- Series:
- PHB
- Packaging:
- Bulk
- Product Status:
- Active
- Capacitance:
- 5 F
- Tolerance:
- -10%, +30%
- Voltage - Rated:
- 5 V
- ESR (Equivalent Series Resistance):
- 130mOhm @ 100Hz
- Lifetime @ Temp.:
- 1000 Hrs @ 70°C
- Termination:
- PC Pins
- Mounting Type:
- Through Hole
- Package / Case:
- Radial, Can, Horizontal
- Lead Spacing:
- 0.209" (5.30mm)
- Size / Dimension:
- 1.280" L x 0.839" W (32.50mm x 21.30mm)
- Height - Seated (Max):
- 0.433" (11.00mm)
- Operating Temperature:
- -25°C ~ 70°C
| Image |  |
 |
 |
 |
 |

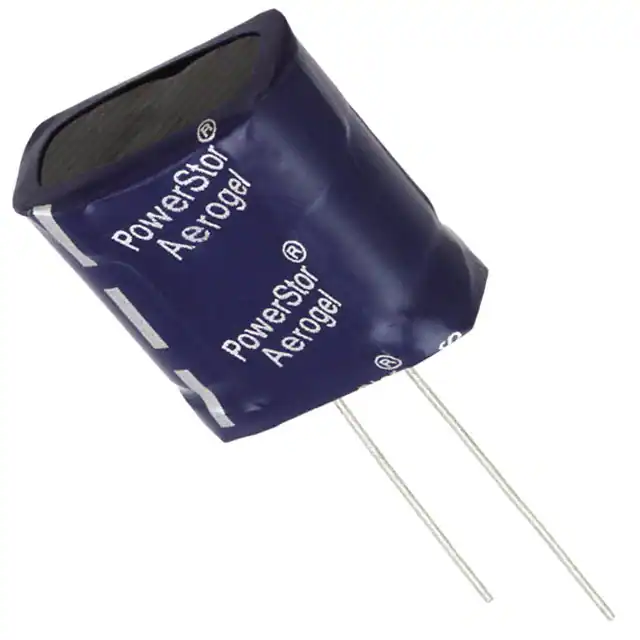

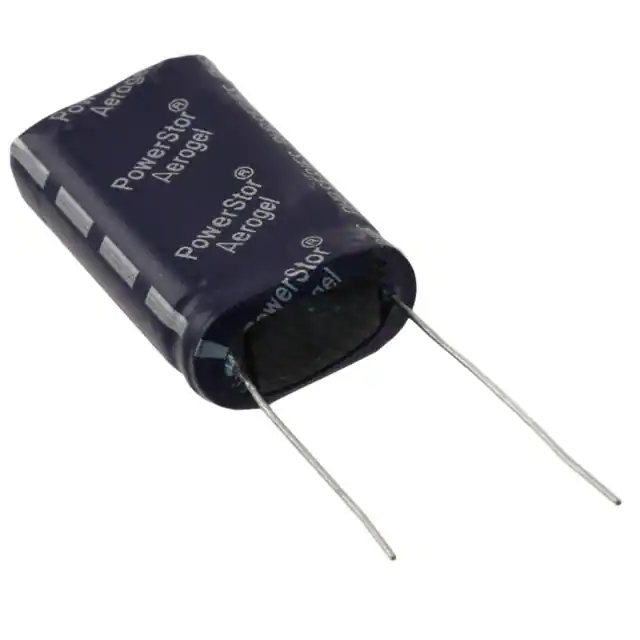

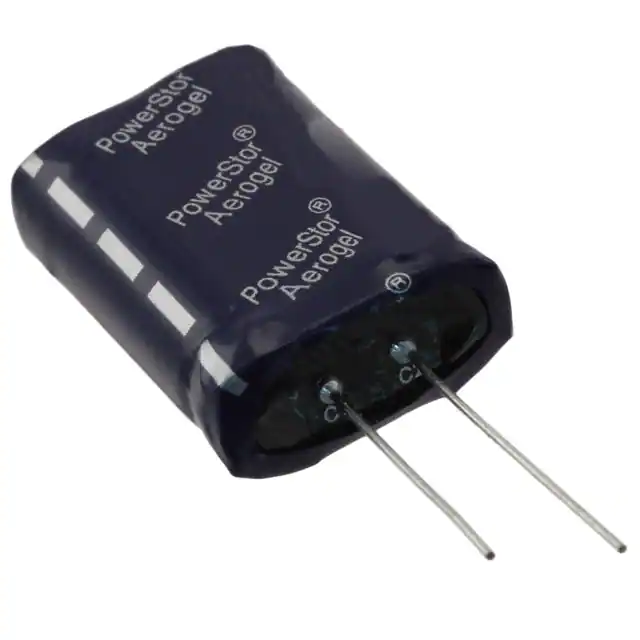

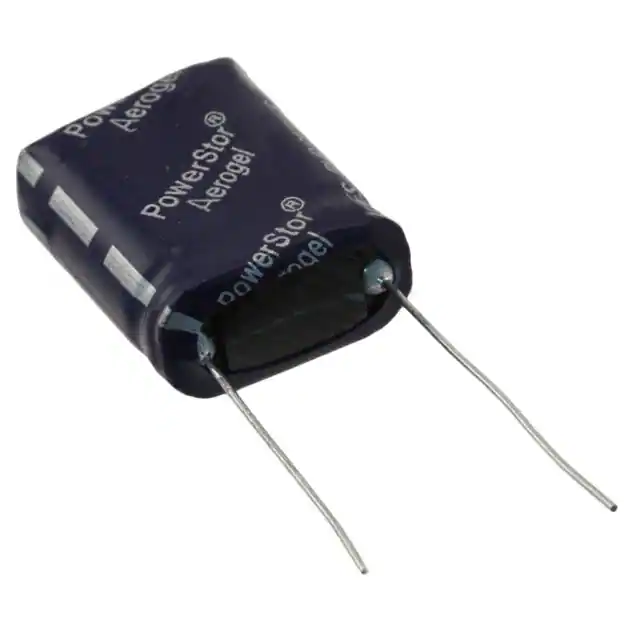

| Part Number | PHB-5R0H505-R | PHB-5R0V505-R | PHB-5R0V305-R | PHB-5R0V255-R | PHB-5R0H155-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Series | PHB | PHB | PHB | PHB | PHB |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 5 F | 5 F | 3 F | 2.5 F | 1.5 F |
| Tolerance | -10%, +30% | -10%, +30% | -10%, +30% | -10%, +30% | -10%, +30% |
| Voltage - Rated | 5 V | 5 V | 5 V | 5 V | 5 V |
| ESR (Equivalent Series Resistance) | 130mOhm @ 100Hz | 130mOhm @ 100Hz | 200mOhm @ 100Hz | 200mOhm @ 100Hz | 330mOhm @ 100Hz |
| Lifetime @ Temp. | 1000 Hrs @ 70°C | 1000 Hrs @ 70°C | 1000 Hrs @ 70°C | 1000 Hrs @ 70°C | 1000 Hrs @ 70°C |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can, Horizontal | Radial, Can | Radial, Can | Radial, Can | Radial, Can, Horizontal |
| Lead Spacing | 0.209" (5.30mm) | 0.209" (5.30mm) | 0.465" (11.80mm) | 0.209" (5.30mm) | 0.465" (11.80mm) |
| Size / Dimension | 1.280" L x 0.839" W (32.50mm x 21.30mm) | 0.839" L x 0.433" W (21.30mm x 11.00mm) | 0.681" L x 0.354" W (17.30mm x 9.00mm) | 0.839" L x 0.433" W (21.30mm x 11.00mm) | 0.866" L x 0.681" W (22.00mm x 17.30mm) |
| Height - Seated (Max) | 0.433" (11.00mm) | 1.280" (32.50mm) | 1.280" (32.50mm) | 0.906" (23.00mm) | 0.354" (9.00mm) |
| Operating Temperature | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C |
