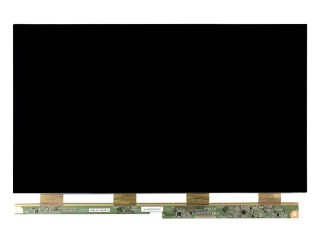

BOE MV238FHB-N30
- Part No.:
- MV238FHB-N30
- Manufacturer:
- BOE
- Category:
- TFT CELL Shipment Type
- Package:
- Description:
- BOE 23.8" IPS CELL FOB 1920×1080 LVDS 75Hz
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
MV238FHB-N30 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 23.8"
- TNVAIPS:
- ADS
- Resolution:
- 1920×1080
- Viewing Area:
- 527.04×296.46
- Outline Size:
- 534.04(W)×307.76(H)×1.32(D) mm
- Treatment:
- Brightness:
- 0 cd/m²
- Contrast Ratio:
- 1000:1 (Typ.) (TM)
- View Direction:
- Symmetry
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- Best View on:
- Symmetry
- Work Mode:
- ADS, Normally Black, Transmissive
- Glass Thickness:
- 0.50+0.50 mm ([Panelook copyright, copy is strictly prohibited] It's Depth of CF Depth + Array Depth CELL Depth = CF Depth + Array Depth)
- Transmissivity:
- Color Depth:
- 16.7M 74% NTSC
- Backlight:
- Mass:
- 538g (Typ.)
- Touch Screen:
- Without
- Refresh Rate:
- 75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
- Driver IC list:
- Built-in COF 4 source chips
- Signal Type:
- LVDS (2 ch, 8-bit) , 30 pins Connector
| Image |  |
 |
 |
 |
 |

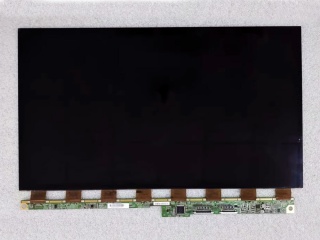

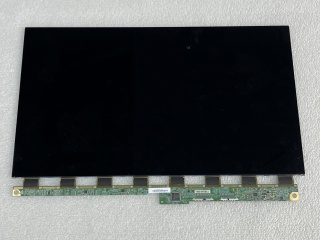

| Part Number | MV238FHB-N30 | MV238FHB-NF1 | MV238FHB-N20 | MV238FHB-NG0 | MV238FHB-N10 |
| Manufacturer | BOE | BOE | BOE | BOE | BOE |
| Panel Size | 23.8" | 23.8" | 23.8" | 23.8" | 23.8" |
| TNVAIPS | ADS | ADS | ADS | ADS | ADS |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 |
| Viewing Area | 527.04×296.46 | 527.04×296.46 | 527.04×296.46 | 527.04×296.46 | 527.04×296.46 |
| Outline Size | 534.04(W)×307.76(H)×1.32(D) mm | 534.84(H)×308.16(V) mm | 534.84(W)×308.16(H)×1.32(D) | 543.84(W)×308.07(H)×1.34(D) mm | 535.9(W)×306.8(H) ×1.7(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) | ||
| Brightness | 0 cd/m² | 0 cd/m² | 0 (cd/m²) | 0 cd/m² | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | 1000 : 1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | |
| View Direction | Symmetry | Symmetry | |||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) |
| Response Time | 5 (Typ.)(G to G) | 14 (Typ.)(G to G) ms | 14 (Typ.)(G to G) | ||
| Best View on | Symmetry | Symmetry | Symmetry | Symmetry | |
| Work Mode | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | |
| Glass Thickness | 0.50+0.50 mm ([Panelook copyright, copy is strictly prohibited] It's Depth of CF Depth + Array Depth CELL Depth = CF Depth + Array Depth) | - | 0.50+0.50 mm | 0.50+0.50 mm ([Panelook copyright, copy is strictly prohibited] It's Depth of CF Depth + Array Depth CELL Depth = CF Depth + Array Depth) | 0.70+0.70 mm |
| Transmissivity | 4.9% (Typ.)(with Polarizer) | 4.55% (Typ.)(with Polarizer) | - | ||
| Color Depth | 16.7M 74% NTSC | 16.7M 100% sRGB | 16.7M 72% NTSC | 16.7M 99% sRGB | 16.7M 72% NTSC |
| Backlight | No B/L , W/O Driver | No B/L , No Driver | No B/L , Without Driver | ||
| Mass | 538g (Typ.) | 540g (Typ.) | 480g (Typ.) | TBD | 635g (Typ.) |
| Touch Screen | Without | Without | Without | Without | |
| Refresh Rate | 75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 180Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 75Hz | 144Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 75Hz |
| Driver IC list | Built-in COF 4 source chips | COF Built-in 4 source chips | Built-in COF 8 source chips | Built-in COF 8 source chips | COF Built-in 6 source + 4 gate chips |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector | LVDS (4 ch, 8-bit) , 92 pins Connector | LVDS (2 ch, 8-bit) , 30 pins Connector | LVDS (4 ch, 8-bit) , 92 pins Connector | LVDS (2 ch, 8-bit) , 30 pins Connector |
