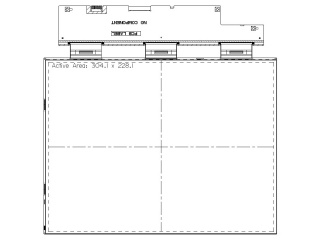

Innolux G150XJE-P01
- Part No.:
- G150XJE-P01
- Manufacturer:
- Innolux
- Category:
- TFT CELL Shipment Type
- Package:
- Description:
- Innolux 15" VA CELL FOB 1024×768 LVDS
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
G150XJE-P01 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Innolux
- Panel Size:
- 15"
- TNVAIPS:
- NPVA
- Resolution:
- 1024×768
- Viewing Area:
- 304.128×228.096
- Outline Size:
- 314.6(H)×237.55(V) ×1.29(D) mm
- Treatment:
- Brightness:
- 0 cd/m²
- Contrast Ratio:
- View Direction:
- Symmetry
- Viewing Angle:
- 88/88/88/88 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- Best View on:
- Work Mode:
- Glass Thickness:
- 0.50+0.50 mm ([Panelook copyright, copy is strictly prohibited] It's Depth of CF Depth + Array Depth CELL Depth = CF Depth + Array Depth)
- Transmissivity:
- Color Depth:
- 262K/16.7M 71% NTSC
- Backlight:
- Mass:
- -
- Touch Screen:
- Refresh Rate:
- 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
- Driver IC list:
- Built-in 3 source COF + 2 gate COG chips
- Signal Type:
- LVDS (1 ch, 6/8-bit) , 20 pins Connector
| Image |  |
 |
| Part Number | G150XJE-P01 | G150XJE-DM1 |
| Manufacturer | Innolux | Innolux |
| Panel Size | 15" | 15" |
| TNVAIPS | NPVA | NPVA |
| Resolution | 1024×768 | 1024×768 |
| Viewing Area | 304.128×228.096 | 304.128×228.096 |
| Outline Size | 314.6(H)×237.55(V) ×1.29(D) mm | 314.6(W)×237.55(H) ×1.29(D) mm |
| Treatment | Antiglare, Hard coating (3H) | |
| Brightness | 0 cd/m² | 0 cd/m² |
| Contrast Ratio | 2500:1 (Typ.) (TM) | |
| View Direction | Symmetry | |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) (Left / Right / Up / Down) | 88/88/88/88 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 16/7 (Typ.)(Tr/Td) | |
| Best View on | Symmetry | |
| Work Mode | NPVA, Normally Black, Transmissive | |
| Glass Thickness | 0.50+0.50 mm ([Panelook copyright, copy is strictly prohibited] It's Depth of CF Depth + Array Depth CELL Depth = CF Depth + Array Depth) | - |
| Transmissivity | 4.5% (Typ.)(with Polarizer) | |
| Color Depth | 262K/16.7M 71% NTSC | 16.7M 71% NTSC |
| Backlight | No B/L | |
| Mass | - | - |
| Touch Screen | Without | |
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
| Driver IC list | Built-in 3 source COF + 2 gate COG chips | |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector | eDP (1 Lane) , 30 pins Connector |
