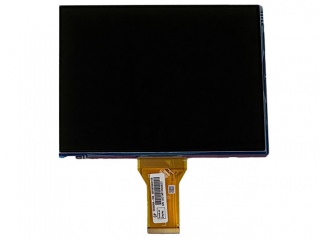

Innolux EE080NA-06A
- Part No.:
- EE080NA-06A
- Manufacturer:
- Innolux
- Category:
- TFT CELL Shipment Type
- Package:
- Description:
- Innolux 8" TN CELL FOG 800×600 TTL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
EE080NA-06A Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Innolux
- Panel Size:
- 8"
- TNVAIPS:
- TN
- Resolution:
- 800×600
- Viewing Area:
- 162×121.5
- Outline Size:
- 171(W)×132.7(H) ×1.43(D) mm
- Treatment:
- Brightness:
- 0 cd/m²
- Contrast Ratio:
- View Direction:
- Viewing Angle:
- 70/70/50/70 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- Best View on:
- 6 o'clock
- Work Mode:
- Glass Thickness:
- 0.50+0.50 mm ([Panelook copyright, copy is strictly prohibited] It's Depth of CF Depth + Array Depth CELL Depth = CF Depth + Array Depth)
- Transmissivity:
- Color Depth:
- 16.7M 50% NTSC
- Backlight:
- Mass:
- 68.0±3.40g
- Touch Screen:
- Refresh Rate:
- 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
- Driver IC list:
- Signal Type:
- Parallel RGB (1 ch, 8-bit) , 50 pins FPC
| Image |  |
 |
| Part Number | EE080NA-06A | EE080NA-04C |
| Manufacturer | Innolux | Innolux |
| Panel Size | 8" | 8" |
| TNVAIPS | TN | TN |
| Resolution | 800×600 | 1024×768 |
| Viewing Area | 162×121.5 | 162.048×121.536 |
| Outline Size | 171(W)×132.7(H) ×1.43(D) mm | 170.9(H)×132.4(V) ×1.43(D) mm |
| Treatment | Hard coating | |
| Brightness | 0 cd/m² | 0 cd/m² |
| Contrast Ratio | 700:1 (Typ.) (TM) | |
| View Direction | 4:30 o'clock | |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) (Left / Right / Up / Down) | 75/75/75/75 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 6/14 (Typ.)(Tr/Td) | |
| Best View on | 6 o'clock | |
| Work Mode | TN, Normally White, Transmissive | |
| Glass Thickness | 0.50+0.50 mm ([Panelook copyright, copy is strictly prohibited] It's Depth of CF Depth + Array Depth CELL Depth = CF Depth + Array Depth) | 0.50+0.50 mm ([Panelook copyright, copy is strictly prohibited] It's Depth of CF Depth + Array Depth CELL Depth = CF Depth + Array Depth) |
| Transmissivity | 4.2% (Typ.)(with Polarizer) | |
| Color Depth | 16.7M 50% NTSC | 262K/16.7M 50% NTSC |
| Backlight | No B/L , W/O Driver | |
| Mass | 68.0±3.40g | TBD |
| Touch Screen | Without | |
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
| Driver IC list | COG Built-in 1 source + 2 gate chips | |
| Signal Type | Parallel RGB (1 ch, 8-bit) , 50 pins FPC | LVDS (1 ch, 6/8-bit) , 40 pins FPC |
