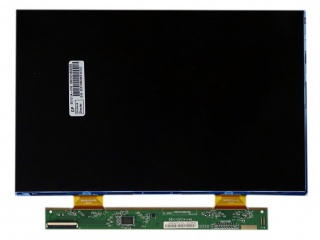

Innolux EE101IA-01D

Name: EE101IA-01D
Brand: Innolux
SKU: EE101IA-01D
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: EE101IA-01D

Manufacturer:: Innolux

Category:: TFT CELL Shipment Type

Package:

Description:: Innolux 10.1" IPS CELL FOB 1280×800 LVDS

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

EE101IA-01D Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Innolux

Panel Size:: 10.1"

TNVAIPS:: IPS

Resolution:: 1280×800

Viewing Area:: 216.96×135.6

Outline Size:: 223.95(H)×144.24(V) ×1.06(D) mm

Treatment:

Brightness:: 0 cd/m²

Contrast Ratio:

View Direction:: Symmetry

Viewing Angle:: 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)

Response Time:

Best View on:

Work Mode:

Glass Thickness:: 0.40+0.40 mm ([Panelook copyright, copy is strictly prohibited] It's Depth of CF Depth + Array Depth CELL Depth = CF Depth + Array Depth)

Transmissivity:

Color Depth:: 16.7M 50% NTSC

Backlight:

Mass:: 80.0g (Typ.)

Touch Screen:: Without

Refresh Rate:: 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

Driver IC list:: COG Built-in EK79202

Signal Type:: LVDS (1 ch, 8-bit) , 40 pins Connector

Part Number	EE101IA-01D	EE101IA-01C
Manufacturer	Innolux	Innolux
Panel Size	10.1"	10.1"
TNVAIPS	IPS	IPS
Resolution	1280×800	1280×800
Viewing Area	216.96×135.6	216.96×135.6
Outline Size	223.95(H)×144.24(V) ×1.06(D) mm	223.95(W)×144.24(H) ×0.87(D) mm
Treatment		Hard coating
Brightness	0 cd/m²	0 cd/m²
Contrast Ratio		800:1 (Typ.) (TM)
View Direction	Symmetry
Viewing Angle	85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)	85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)
Response Time		10/15 (Typ.)(Tr/Td)
Best View on		Symmetry
Work Mode		IPS, Normally Black, Transmissive
Glass Thickness	0.40+0.40 mm ([Panelook copyright, copy is strictly prohibited] It's Depth of CF Depth + Array Depth CELL Depth = CF Depth + Array Depth)	0.30+0.30 mm ([Panelook copyright, copy is strictly prohibited] It's Depth of CF Depth + Array Depth CELL Depth = CF Depth + Array Depth)
Transmissivity		5.6% (Typ.)(with Polarizer)
Color Depth	16.7M 50% NTSC	16.7M
Backlight		No B/L , Without Driver
Mass	80.0g (Typ.)	TBD
Touch Screen	Without	Without
Refresh Rate	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
Driver IC list	COG Built-in EK79202	COG Built-in 4 source + 1 gate chips
Signal Type	LVDS (1 ch, 8-bit) , 40 pins Connector	LVDS (1 ch, 8-bit) , 40 pins Connector
