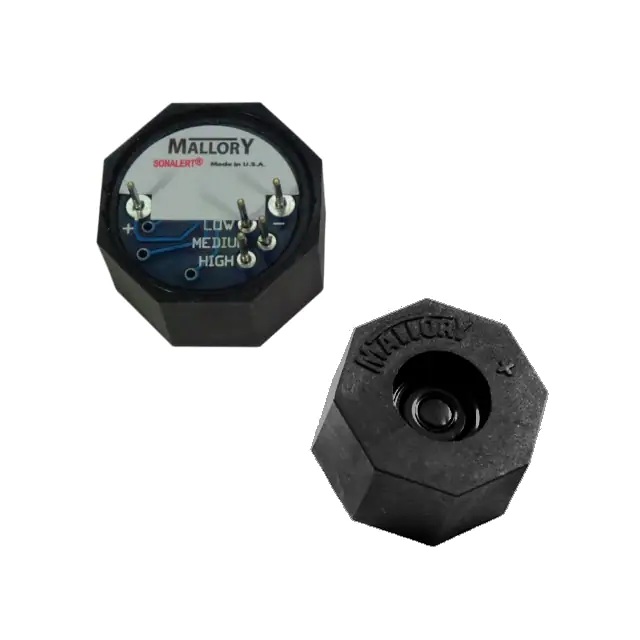

Mallory Sonalert Products Inc. MSS5G

Name: MSS5G
Brand: Mallory Sonalert Products Inc.
SKU: MSS5G
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: MSS5G

Manufacturer:: Mallory Sonalert Products Inc.

Category:: Alarms, Buzzers, and Sirens

Package:

Description:: BUZZER MAGN 5V 23X23MM TH

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

MSS5G Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Mallory Sonalert Products Inc.

Series:: MSS

Packaging:: Bulk

Product Status:: Active

Driver Circuitry:: Indicator, Internally Driven

Input Type:: DC

Voltage - Rated:: 5 V

Voltage Range:: 4.5 ~ 5.5V

Frequency:: 150Hz ~ 4kHz

Technology:: Magnetic

Operating Mode:: Pin Selectable

Duration:: Variable

Sound Pressure Level (SPL):: 85dB @ 5V, 10cm

Current - Supply:: 20 ~ 150mA

Port Location:: Top

Operating Temperature:: -30°C ~ 55°C

Approval Agency:: cUL, UL

Ratings:: Medical

Ingress Protection:: -

Mounting Type:: Through Hole

Termination:: PC Pins

Size / Dimension:: 0.906" L x 0.906" W (23.00mm x 23.00mm)

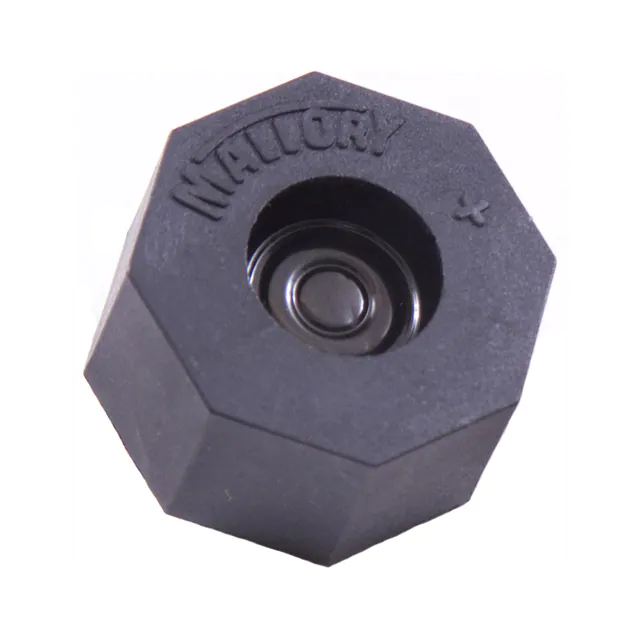

Part Number	MSS5G	MSS5GH	MSS5GM	MSS5GL	MSS5GMHCT
Manufacturer	Mallory Sonalert Products Inc.	Mallory Sonalert Products Inc.	Mallory Sonalert Products Inc.	Mallory Sonalert Products Inc.	Mallory Sonalert Products Inc.
Series	MSS	MSS	MSS	MSS	MSS
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Product Status	Active	Active	Active	Active	Active
Driver Circuitry	Indicator, Internally Driven	Indicator, Internally Driven	Indicator, Internally Driven	Indicator, Internally Driven	Indicator, Internally Driven
Input Type	DC	DC	DC	DC	DC
Voltage - Rated	5 V	5 V	5 V	5 V	5 V
Voltage Range	4.5 ~ 5.5V	4.5 ~ 5.5V	4.5 ~ 5.5V	4.5 ~ 5.5V	4.5 ~ 5.5V
Frequency	150Hz ~ 4kHz	150Hz ~ 4kHz	150Hz ~ 4kHz	150Hz ~ 4kHz	150Hz ~ 4kHz
Technology	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic
Operating Mode	Pin Selectable	-	-	-	Pin Selectable
Duration	Variable	Repeating every 2.5 Sec	Repeating every 7.5 Sec	Repeating every 30 Sec	Variable
Sound Pressure Level (SPL)	85dB @ 5V, 10cm	85dB @ 5V, 10cm	85dB @ 5V, 10cm	85dB @ 5V, 10cm	85dB @ 5V, 10cm
Current - Supply	20 ~ 150mA	200mA	200mA	200mA	20 ~ 150mA
Port Location	Top	Top	Top	Top	Top
Operating Temperature	-30°C ~ 55°C	-30°C ~ 55°C	-30°C ~ 55°C	-30°C ~ 55°C	-30°C ~ 55°C
Approval Agency	cUL, UL	cUL, UL	cUL, UL	cUL, UL	cUL, UL
Ratings	Medical	Medical	Medical	Medical	Medical
Ingress Protection	-	-	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	PC Pins	PC Pins	PC Pins	PC Pins	PC Pins
Size / Dimension	0.906" L x 0.906" W (23.00mm x 23.00mm)	0.906" L x 0.906" W (23.00mm x 23.00mm)	0.906" L x 0.906" W (23.00mm x 23.00mm)	0.906" L x 0.906" W (23.00mm x 23.00mm)	0.906" L x 0.906" W (23.00mm x 23.00mm)
