Omron Automation and Safety LY4N-AC200/220

Name: LY4N-AC200/220
Brand: Omron Automation and Safety
SKU: LY4N-AC200/220
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: LY4N-AC200/220

Manufacturer:: Omron Automation and Safety

Category:: Power Relays, Over 2 Amps

Package:

Datasheet:: LY4N-AC200/220.pdf

Description:: RELAY GEN PURPOSE 4PDT 10A 220V

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

LY4N-AC200/220 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Omron Automation and Safety

Series:: LY

Packaging:: Bulk

Product Status:: Active

Mounting Type:: Socketable

Coil Voltage:: 220VAC

Contact Form:: 4PDT (4 Form C)

Contact Rating (Current):: 10 A

Switching Voltage:: 250VAC, 125VDC - Max

Load - Max Switching:: 2500VA, 1250W

Coil Current:: 11.2 mA

Coil Type:: Non Latching

Features:: Lighted Indicator

Termination Style:: Plug In

Seal Rating:: -

Coil Insulation:: -

Must Operate Voltage:: 176 VAC

Must Release Voltage:: 66 VAC

Operate Time:: 25 ms

Release Time:: 25 ms

Operating Temperature:: -25°C ~ 40°C

Contact Material:: Silver Alloy

Relay Type:: General Purpose

Grade:: -

Qualification:: -

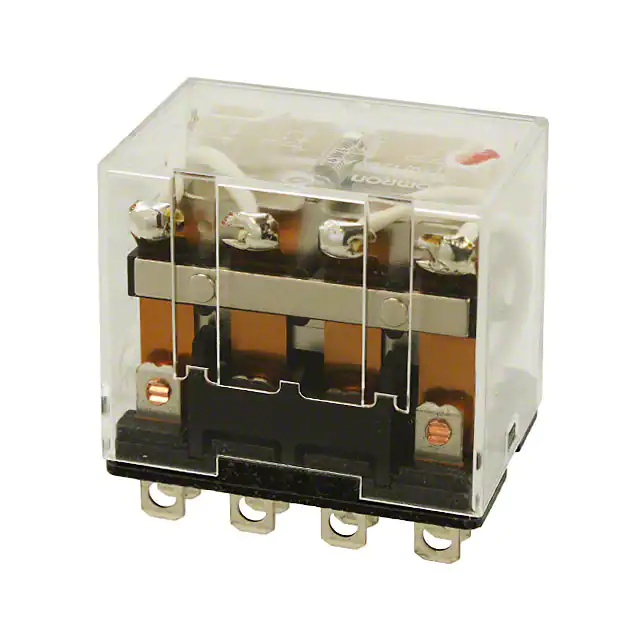

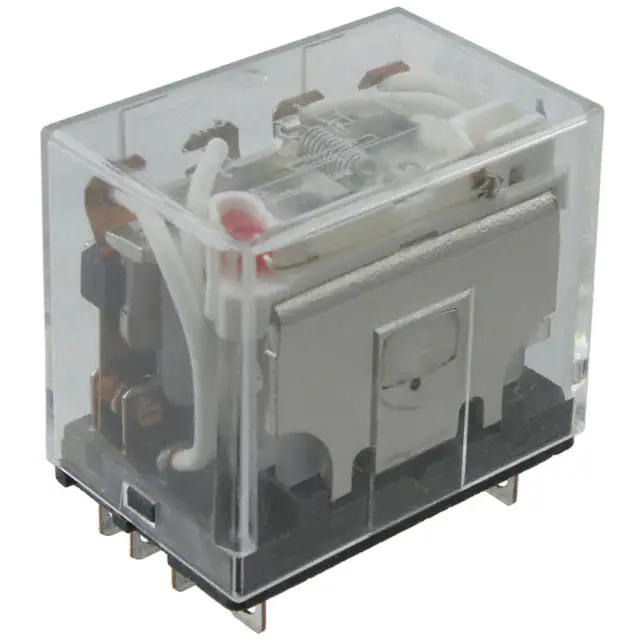

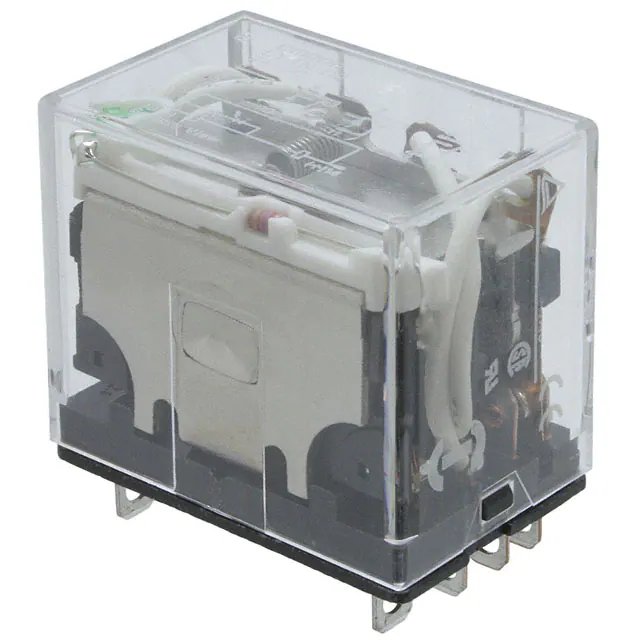

Part Number	LY4N-AC200/220	LY4N-DC24	LY4N AC110/120	LY4N-D2-DC24	LY4N-AC24
Manufacturer	Omron Automation and Safety	Omron Automation and Safety	Omron Automation and Safety	Omron Automation and Safety	Omron Automation and Safety
Series	LY	LY	LY	LY	LY
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Product Status	Active	Active	Active	Active	Active
Mounting Type	Socketable	Socketable	Socketable	Socketable	Socketable
Coil Voltage	220VAC	24VDC	120VAC	24VDC	24VAC
Contact Form	4PDT (4 Form C)	4PDT (4 Form C)	4PDT (4 Form C)	4PDT (4 Form C)	4PDT (4 Form C)
Contact Rating (Current)	10 A	10 A	10 A	10 A	10 A
Switching Voltage	250VAC, 125VDC - Max	250VAC, 125VDC - Max	250VAC, 125VDC - Max	250VAC, 125VDC - Max	250VAC, 125VDC - Max
Load - Max Switching	2500VA, 1250W	2500VA, 1250W	2500VA, 1250W	2500VA, 1250W	2500VA, 1250W
Coil Current	11.2 mA	69 mA	16.4 mA	69 mA	80 mA
Coil Type	Non Latching	Non Latching	Non Latching	Non Latching	Non Latching
Features	Lighted Indicator	Lighted Indicator	Lighted Indicator	Lighted Indicator	Lighted Indicator
Termination Style	Plug In	Plug In	Plug In	Plug In	Plug In
Seal Rating	-	-	-	-	-
Coil Insulation	-	-	-	-	-
Must Operate Voltage	176 VAC	19.2 VDC	96 VAC	19.2 VDC	19.2 VAC
Must Release Voltage	66 VAC	2.4 VDC	36 VAC	2.4 VDC	7.2 VAC
Operate Time	25 ms	25 ms	25 ms	25 ms	25 ms
Release Time	25 ms	25 ms	25 ms	25 ms	25 ms
Operating Temperature	-25°C ~ 40°C	-25°C ~ 40°C	-25°C ~ 40°C	-25°C ~ 40°C	-25°C ~ 40°C
Contact Material	Silver Alloy	Silver Alloy	Silver Alloy	Silver Alloy	Silver Alloy
Relay Type	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
