CIT Relay and Switch J1021CS312VDC.20
- Part No.:
- J1021CS312VDC.20
- Manufacturer:
- CIT Relay and Switch
- Category:
- Power Relays, Over 2 Amps
- Package:
- Datasheet:
-
J1021CS312VDC.20.pdf
- Description:
- RELAY GEN PURPOSE SPDT 3A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
J1021CS312VDC.20 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- CIT Relay and Switch
- Series:
- J102
- Packaging:
- Tube
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 12VDC
- Contact Form:
- SPDT (1 Form C)
- Contact Rating (Current):
- 3 A
- Switching Voltage:
- 300VAC, 150VDC - Max
- Load - Max Switching:
- 900VA, 450W
- Coil Current:
- 16.7 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- Sealed - Fully
- Coil Insulation:
- -
- Must Operate Voltage:
- 9 VDC
- Must Release Voltage:
- 1.2 VDC
- Operate Time:
- 5 ms
- Release Time:
- 5 ms
- Operating Temperature:
- -40°C ~ 85°C
- Contact Material:
- Silver Nickel (AgNi)
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -

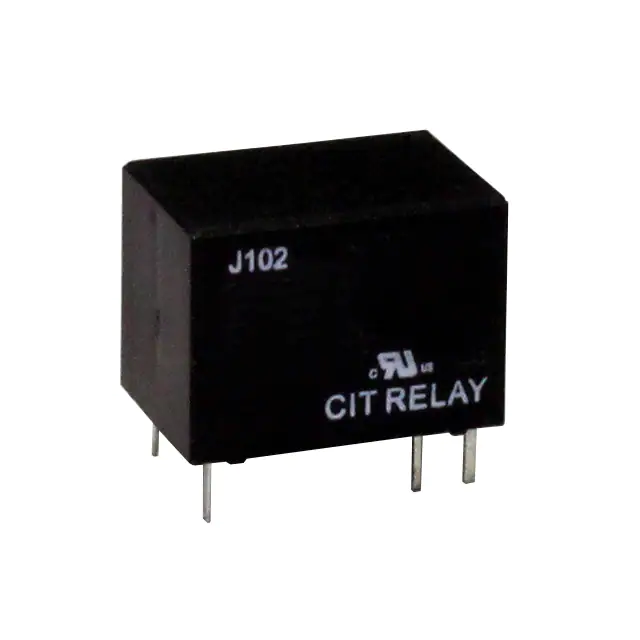

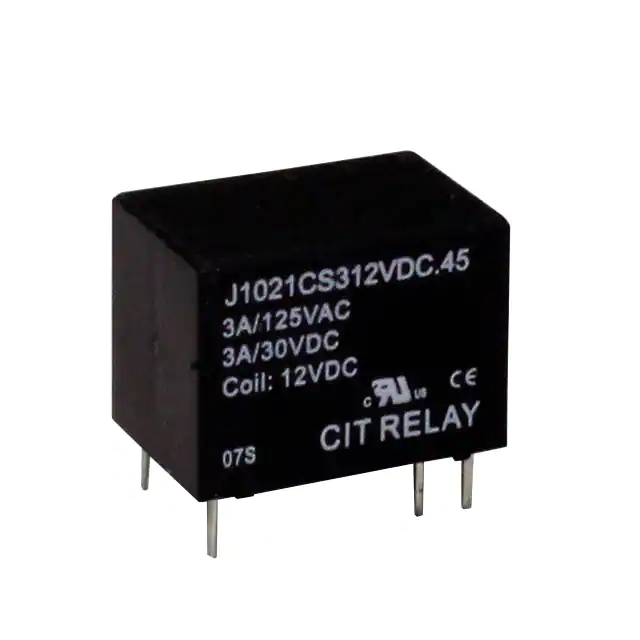

| Image |  |
 |
 |
| Part Number | J1021CS312VDC.20 | J1021CS312VDC.45 | J1021CS312VDC.36 |
| Manufacturer | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch |
| Series | J102 | J102 | J102 |
| Packaging | Tube | Tube | Tube |
| Product Status | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Coil Voltage | 12VDC | 12VDC | 12VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Rating (Current) | 3 A | 3 A | 3 A |
| Switching Voltage | 300VAC, 150VDC - Max | 300VAC, 150VDC - Max | 300VAC, 150VDC - Max |
| Load - Max Switching | 900VA, 450W | 900VA, 450W | 900VA, 450W |
| Coil Current | 16.7 mA | 37.5 mA | 30 mA |
| Coil Type | Non Latching | Non Latching | Non Latching |
| Features | - | - | - |
| Termination Style | PC Pin | PC Pin | PC Pin |
| Seal Rating | Sealed - Fully | Sealed - Fully | Sealed - Fully |
| Coil Insulation | - | - | - |
| Must Operate Voltage | 9 VDC | 9 VDC | 9 VDC |
| Must Release Voltage | 1.2 VDC | 1.2 VDC | 1.2 VDC |
| Operate Time | 5 ms | 5 ms | 5 ms |
| Release Time | 5 ms | 5 ms | 5 ms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi) | Silver Nickel (AgNi) |
| Relay Type | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - |
| Qualification | - | - | - |
