LG Display LP133WQ1-SPK4
- Part No.:
- LP133WQ1-SPK4
- Manufacturer:
- LG Display
- Category:
- TFT-LCD Panel
- Package:
- Description:
- LG Display 13.3" IPS LCM 2560×1600 WLED eDP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
LP133WQ1-SPK4 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- LG Display
- Panel Size:
- 13.3"
- TNVAIPS:
- IPS
- Resolution:
- 2560×1600
- CR:
- 1900/2/19 0:01:00
- Viewing Angle:
- 85/85/85/85
- Colors:
- 16.7M
- Outline Size:
- Treatment:
- Brightness:
- -
- Contrast Ratio:
- 1200:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 85/85/85/85 (Typ.)(CR≥10)
- Response Time:
- 30 (Typ.)(Tr+Td)
- Best View on:
- Symmetry
- Work Mode:
- IPS, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M
- Mass:
- Used for:
- Touch Screen:
- -
- Refresh Rate:
- 60Hz
| Image |  |
 |
 |
 |
 |

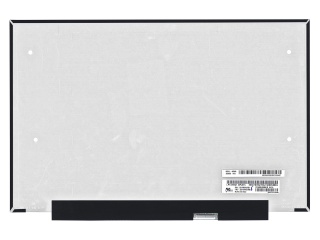

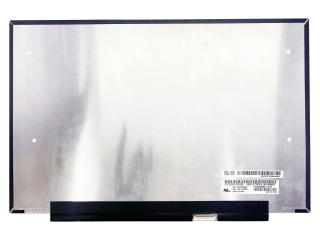

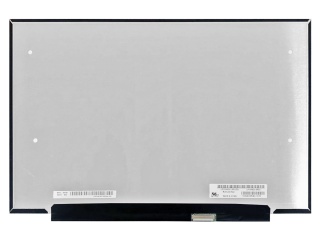

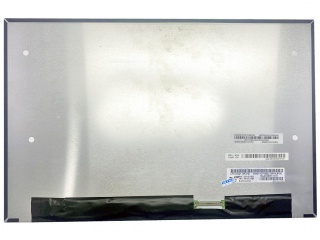

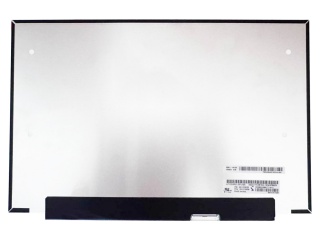

| Part Number | LP133WQ1-SPH2 | LP133WQ1-SPB1 | LP133WQ1-SPB2 | LP133WQ1-SPD2 | LP133WQ1-SPF2 |
| Manufacturer | LG Display | LG Display | LG Display | LG Display | LG Display |
| Panel Size | 13.3" | 13.3" | 13.3" | 13.3" | 13.3" |
| TNVAIPS | IPS | IPS | IPS | IPS | IPS |
| Resolution | 2560×1600 | 2560×1600 | 2560×1600 | 2560×1600 | 2560×1600 |
| CR | 1900/2/23 4:01:00 | 1900/2/23 4:01:00 | 1900/2/23 4:01:00 | 1900/2/23 4:01:00 | 1900/2/23 4:01:00 |
| Viewing Angle | 85/85/85/85 | 85/85/85/85 | 85/85/85/85 | 85/85/85/85 | 89/89/89/89 |
| Colors | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Outline Size | 291.08(H)×195.3(V)×2.4(D) mm | 291.08(H)×195.3(V) ×2.4(D) mm | 291.08(W)×195.3(H)×2.5(D) mm | 291.08(W)×187.4(H) ×4.1(D) mm | |
| Treatment | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | ||
| Brightness | - | 300 cd/m² (Typ.) | 300 cd/m² (Typ.) | 300 cd/m² (Typ.) | 400 cd/m² (Typ.) |
| Contrast Ratio | 1300:1 (Typ.) (TM) | 1300:1 (Typ.) (TM) | 1300:1 (Typ.) (TM) | ||
| View Direction | Symmetry | Symmetry | Symmetry | ||
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/85/85 (Typ.)(CR≥10) | 89/89/89/89 (Typ.)(CR≥10) |
| Response Time | 30 (Typ.)(Tr+Td) | 30 (Typ.)(Tr+Td) | 30 (Typ.)(Tr+Td) | ||
| Best View on | Symmetry | Symmetry | |||
| Work Mode | IPS, Normally Black, Transmissive | IPS, Normally Black, Transmissive | IPS, Normally Black, Transmissive | ||
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | 16.7M | 16.7M 99% sRGB | 16.7M 100% sRGB | 16.7M 99% sRGB | 16.7M 100% sRGB |
| Mass | |||||
| Used for | Laptop; Industrial | ||||
| Touch Screen | Without | Without | Without | ||
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz | 60Hz |
