LG Display LM270WQA-SSL1
- Part No.:
- LM270WQA-SSL1
- Manufacturer:
- LG Display
- Category:
- TFT-LCD Panel
- Package:
- Description:
- LG Display 27" IPS LCM 2560×1440 WLED eDP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
LM270WQA-SSL1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- LG Display
- Panel Size:
- 27"
- TNVAIPS:
- IPS
- Resolution:
- 2560×1440
- CR:
- 1900/2/10 16:01:00
- Viewing Angle:
- 89/89/89/89
- Colors:
- 1.07B
- Outline Size:
- 608.8(W)×355.1(H) ×15.7(D) mm
- Treatment:
- Antiglare (Haze 25%), Hard coating (3H)
- Brightness:
- -
- Contrast Ratio:
- 1000:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10)
- Response Time:
- -
- Best View on:
- Symmetry
- Work Mode:
- IPS, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 1.07B
- Mass:
- -
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- -
| Image |  |
 |
 |
 |
 |

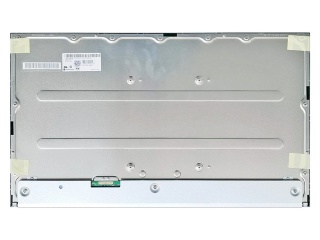

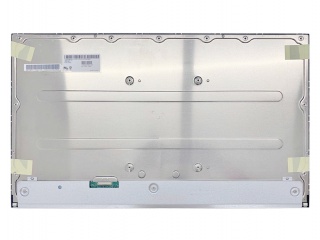

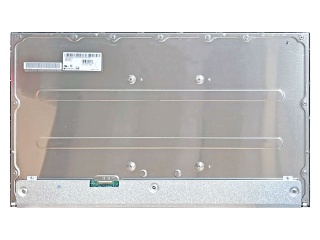

| Part Number | LM270WQA-SSA2 | LM270WQA-SSA1 | LM270WQA-SSC2 | LM270WQA-SSC1 | LM270WQA-SSB1 |
| Manufacturer | LG Display | LG Display | LG Display | LG Display | LG Display |
| Panel Size | 27" | 27" | 27" | 27" | 27" |
| TNVAIPS | IPS | IPS | IPS | IPS | IPS |
| Resolution | 2560×1440 | 2560×1440 | 2560×1440 | 2560×1440 | 2560×1440 |
| CR | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Colors | 1.07B | 1.07B | 1.07B | 1.07B | 1.07B |
| Outline Size | 608.8(W)×355.1(H) ×15.7(D) mm | 608.8(H)×355.1(V) ×15.7(D) mm | 608.8 × 355.1 × 15.7 (H×V×D) | 608.8(H)×355.1(V)×15.7(D) mm | 608.8×355.1×15.7 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) | |
| Brightness | 400 cd/m² (Typ.) | 350 cd/m² (Typ.) | 400 cd/m² (Typ.) | 400 cd/m² (Typ.) | 400 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) | 1000 : 1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | 1000 : 1 (Typ.) (TM) | |
| View Direction | Symmetry | Symmetry | |||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 5 (Typ.)(G to G) | 4 (Typ.)(G to G) ms | 4 (Typ.)(G to G) | 5 (Typ.)(G to G) ms | |
| Best View on | Symmetry | Symmetry | Symmetry | ||
| Work Mode | IPS, Normally Black, Transmissive | IPS, Normally Black, Transmissive | IPS, Normally Black, Transmissive | IPS, Normally Black, Transmissive | |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | 1.07B 95% DCI-P3 | 1.07B | 1.07B 95% DCI-P3 | 1.07B 95% DCI-P3 | 1.07B 100% sRGB |
| Mass | 2.55/2.68Kgs (Typ./Max.) | 2.55/2.68Kgs (Typ./Max.) | 2.55/2.68Kgs (Typ./Max.) | 2.55/2.68Kgs (Typ./Max.) | 2.55/2.68Kgs (Typ./Max.) |
| Used for | Desktop Monitor; Gaming | Desktop Monitor; Gaming | Desktop Monitor; Gaming | ||
| Touch Screen | Without | Without | Without | Without | |
| Refresh Rate | 165Hz | 165Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 165Hz | 165Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 165Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
