LG Display LM215WF3-SDD3
- Part No.:
- LM215WF3-SDD3
- Manufacturer:
- LG Display
- Category:
- TFT-LCD Panel
- Package:
- Description:
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
LM215WF3-SDD3 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- LG Display
- Panel Size:
- 21.5"
- TNVAIPS:
- IPS
- Resolution:
- 1920×1080
- CR:
- 1900/2/10 16:01:00
- Viewing Angle:
- 89/89/89/89
- Colors:
- 16.7M
- Outline Size:
- Treatment:
- Brightness:
- -
- Contrast Ratio:
- 1000:1 (Typ.) (TM)
- View Direction:
- Symmetry
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 6.5/7.5 (Typ.)(Tr/Td)
- Best View on:
- Work Mode:
- IPS, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 100% sRGB
- Mass:
- -
- Used for:
- Desktop Monitor
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
| Image |  |
 |
 |
 |
 |

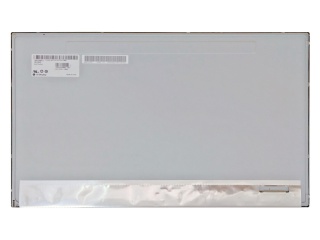

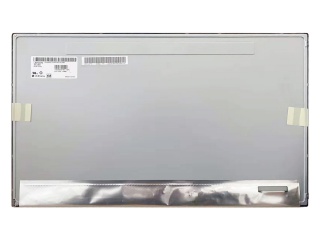

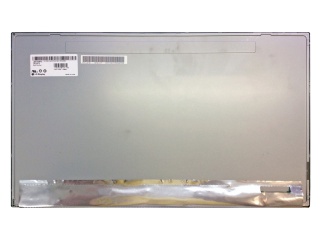

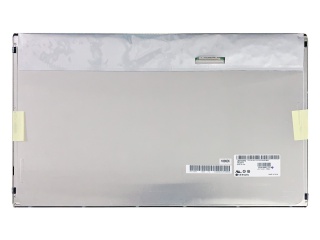

| Part Number | LM215WF3-SLS2 | LM215WF3-SLS1 | LM215WF3-SLC1 | LM215WF3-SLN1 | LM215WF3-SLK1 |
| Manufacturer | LG Display | LG Display | LG Display | LG Display | LG Display |
| Panel Size | 21.5" | 21.5" | 21.5" | 21.5" | 21.5" |
| TNVAIPS | IPS | IPS | IPS | IPS | IPS |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 |
| CR | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Colors | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Outline Size | 497.6(H)×292.2(V) ×11(D) mm | 497.6×292.2×11 (H×V×D) | 495.6×292.2×10.7 (H×V×D) | 497.6 × 292.2 × 11 (H×V×D) | 497.6(W)×292.2(H) ×11(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) | 250 cd/m² (Typ.) | 250 cd/m² (Typ.) | 250 cd/m² (Typ.) | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) | 1000 : 1 (Typ.) (TM) | 1000 : 1 (Typ.) (TM) | 1000 : 1 (Typ.) (TM) | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry | ||||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR＞10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 14 (Typ.)(G to G) | 14 (Typ.)(G to G) ms | 14 (Typ.)(G to G) ms | 14 (Typ.)(G to G) ms | 14 (Typ.)(G to G) |
| Best View on | Symmetry | Symmetry | Symmetry | Symmetry | |
| Work Mode | IPS, Normally Black, Transmissive | IPS, Normally Black, Transmissive | IPS, Normally Black, Transmissive | IPS, Normally Black, Transmissive | IPS, Normally Black, Transmissive |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | 16.7M 72% NTSC | 16.7M 72% NTSC | 16.7M 72% NTSC | 16.7M 72% NTSC | 16.7M 72% NTSC |
| Mass | 1.69/1.77Kgs (Typ./Max.) | 1.69/1.77Kgs (Typ./Max.) | 1.19/1.25Kgs (Typ./Max.) | 1.68/1.77Kgs (Typ./Max.) | 1.92/2.02Kgs (Typ./Max.) |
| Used for | Desktop Monitor; Industrial; Healthcare | Desktop Monitor; Industrial; Medical Imaging; Digital Signage | Desktop Monitor; Industrial; Medical Imaging | Desktop Monitor | Desktop Monitor; Industrial |
| Touch Screen | Without | Without | Without | Without | Without |
| Refresh Rate | 75Hz | 75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 75Hz | 75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
