Visaton GmbH & Co. KG K 50 - 8 OHM
- Part No.:
- K 50 - 8 OHM
- Manufacturer:
- Visaton GmbH & Co. KG
- Category:
- Speakers
- Package:
- Datasheet:
-
K 50 - 8 OHM.pdf
- Description:
- SPEAKER 8OHM 2W TOP PORT 83DB
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
K 50 - 8 OHM Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Visaton GmbH & Co. KG
- Series:
- Miniature Speaker
- Packaging:
- Bulk
- Product Status:
- Active
- Technology:
- -
- Type:
- General Purpose
- Frequency Range:
- 250 Hz ~ 10 kHz
- Frequency - Self Resonant:
- 400Hz
- Impedance:
- 8 Ohms
- Efficiency - dBA:
- 83.00
- Efficiency - Testing:
- 1W/1M
- Efficiency - Type:
- Sound Pressure Level (SPL)
- Power - Rated:
- 2 W
- Power - Max:
- 3 W
- Port Location:
- Top
- Shape:
- Round
- Material - Cone:
- Polyester, Polyethylene Terephthalate (PET)
- Material - Magnet:
- -
- Ingress Protection:
- -
- Ratings:
- -
- Termination:
- Solder Pads
- Size / Dimension:
- 1.969" Dia (50.00mm)
| Image |  |
 |
 |
|
 |

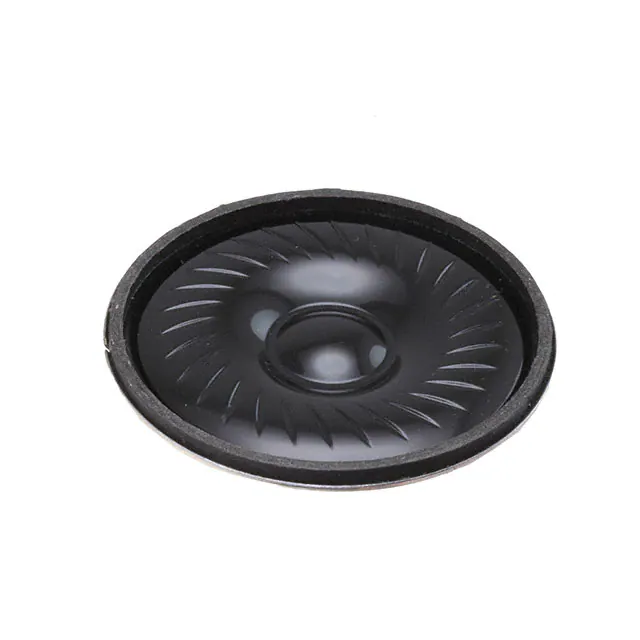

| Part Number | K 50 - 8 OHM | K 50 WP - 8 OHM | K 50 SQ - 8 OHM | K 50 - 50 OHM | K 50 FL - 8 OHM |
| Manufacturer | Visaton GmbH & Co. KG | Visaton GmbH & Co. KG | Visaton GmbH & Co. KG | Visaton GmbH & Co. KG | Visaton GmbH & Co. KG |
| Series | Miniature Speaker | Miniature Speaker | Miniature Speaker | Miniature Speaker | Miniature Speaker |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Technology | - | - | - | - | - |
| Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Frequency Range | 250 Hz ~ 10 kHz | 180 Hz ~ 17 kHz | 250 Hz ~ 10 kHz | 250 Hz ~ 12 kHz | 150 Hz ~ 20 kHz |
| Frequency - Self Resonant | 400Hz | 300Hz | 480Hz | 500Hz | - |
| Impedance | 8 Ohms | 8 Ohms | 8 Ohms | 50 Ohms | 8 Ohms |
| Efficiency - dBA | 83.00 | 84.00 | 83.00 | 83.00 | 80.00 |
| Efficiency - Testing | 1W/1M | 1W/1M | 1W/1M | 1W/1M | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) |
| Power - Rated | 2 W | 2 W | 2 W | 2 W | 1 W |
| Power - Max | 3 W | 3 W | 3 W | 3 W | 2 W |
| Port Location | Top | Top | Top | Top | Top |
| Shape | Round | Round | Round, Square Frame | Round | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) | Polyester, Polyethylene Terephthalate (PET) | Plastic | Polyester, Polyethylene Terephthalate (PET) | Plastic |
| Material - Magnet | - | - | - | - | - |
| Ingress Protection | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Termination | Solder Pads | Quick Connect | Quick Connect | Solder Pads | Solder Pads |
| Size / Dimension | 1.969" Dia (50.00mm) | 1.969" Dia (50.00mm) | 2.008" L x 2.008" W (51.00mm x 51.00mm) | 1.969" Dia (50.00mm) | 1.969" Dia (50.00mm) |
