Soberton Inc. SP-1504
- Part No.:
- SP-1504
- Manufacturer:
- Soberton Inc.
- Category:
- Speakers
- Package:
- Datasheet:
-
SP-1504.pdf
- Description:
- SPEAKER 8OHM 800MW TOP PORT 93DB
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SP-1504 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Soberton Inc.
- Series:
- SP Micro Speaker
- Packaging:
- Tray
- Product Status:
- Active
- Technology:
- Magnetic
- Type:
- General Purpose
- Frequency Range:
- 300 Hz ~ 8 kHz
- Frequency - Self Resonant:
- 1000Hz
- Impedance:
- 8 Ohms
- Efficiency - dBA:
- 93.00
- Efficiency - Testing:
- 100mW/100mm
- Efficiency - Type:
- Sound Pressure Level (SPL)
- Power - Rated:
- 800 mW
- Power - Max:
- 800 mW
- Port Location:
- Top
- Shape:
- Round
- Material - Cone:
- Polyethylene Naphthalate (PEN)
- Material - Magnet:
- Nd-Fe-B-N38
- Ingress Protection:
- -
- Ratings:
- -
- Termination:
- Wire Leads
- Size / Dimension:
- 0.591" Dia (15.00mm)
| Image |  |
 |
 |
 |
 |

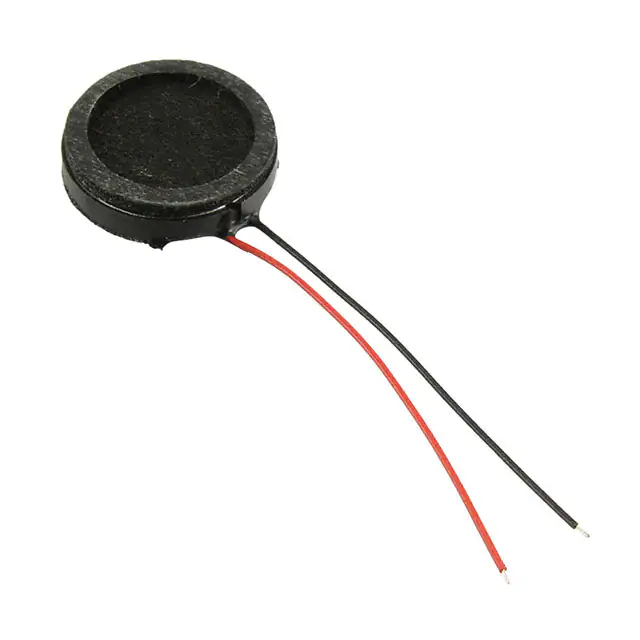

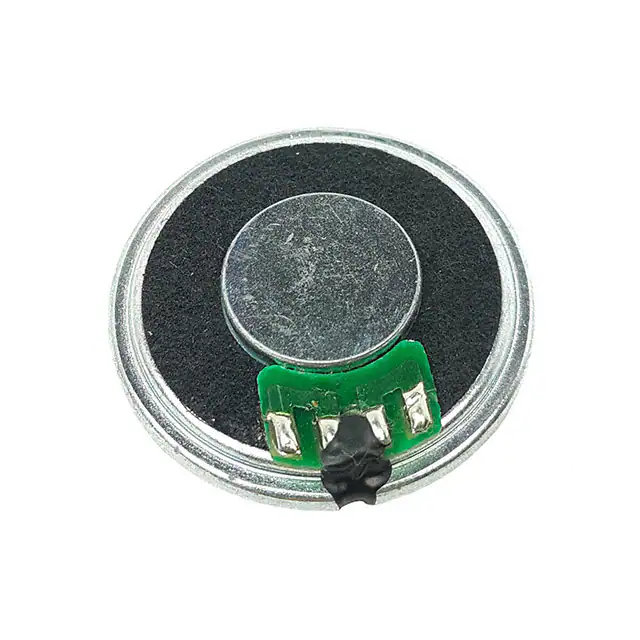

| Part Number | SP-1504 | SP-1609S | SP-1605 | SP-2804Y | SP-2305L |
| Manufacturer | Soberton Inc. | Soberton Inc. | Soberton Inc. | Soberton Inc. | Soberton Inc. |
| Series | SP Micro Speaker | SP Micro Speaker | SP Micro Speaker | SP Micro Speaker | SP |
| Packaging | Tray | Tray | Tray | Tray | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Technology | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic |
| Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Frequency Range | 300 Hz ~ 8 kHz | 200 Hz ~ 5 kHz | 300 Hz ~ 8 kHz | 600 Hz ~ 8 kHz | 750 Hz ~ 20 kHz |
| Frequency - Self Resonant | 1000Hz | 850Hz | 1000Hz | 600Hz | 750Hz |
| Impedance | 8 Ohms | 8 Ohms | 8 Ohms | 8 Ohms | 8 Ohms |
| Efficiency - dBA | 93.00 | 92.00 | 88.00 | 85.00 | 89.00 |
| Efficiency - Testing | 100mW/100mm | 100mW | 100mW/100mm | 1W/500mm | 500mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) |
| Power - Rated | 800 mW | 700 mW | 800 mW | 500 mW | 500 mW |
| Power - Max | 800 mW | 1 W | 800 mW | 1 W | 800 mW |
| Port Location | Top | Top | Top | Top | Top |
| Shape | Round | Rectangular | Round | Round | Round |
| Material - Cone | Polyethylene Naphthalate (PEN) | - | Polyethylene Naphthalate (PEN) | - | Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B-N38 | Nd-Fe-B | Nd-Fe-B-N38 | Nd-Fe-B | Nd-Fe-B |
| Ingress Protection | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Termination | Wire Leads | Spring Type | Wire Leads | Solder Eyelet(s) | Wire Leads |
| Size / Dimension | 0.591" Dia (15.00mm) | 0.630" L x 0.354" W (16.00mm x 9.00mm) | 0.630" Dia (16.00mm) | 1.102" Dia (28.00mm) | 0.906" Dia (23.00mm) |
