Mallory Sonalert Products Inc. PSR-28N08A-JQ
- Part No.:
- PSR-28N08A-JQ
- Manufacturer:
- Mallory Sonalert Products Inc.
- Category:
- Speakers
- Package:
- Datasheet:
-
PSR-28N08A-JQ.pdf
- Description:
- SPEAKER 8OHM 250MW TOP PORT 89DB
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PSR-28N08A-JQ Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Mallory Sonalert Products Inc.
- Series:
- PSR
- Packaging:
- Bulk
- Product Status:
- Active
- Technology:
- Magnetic
- Type:
- General Purpose
- Frequency Range:
- 700 Hz ~ 8 kHz
- Frequency - Self Resonant:
- 700Hz
- Impedance:
- 8 Ohms
- Efficiency - dBA:
- 89.00
- Efficiency - Testing:
- 1W/1M
- Efficiency - Type:
- Sound Pressure Level (SPL)
- Power - Rated:
- 250 mW
- Power - Max:
- 500 mW
- Port Location:
- Top
- Shape:
- Round
- Material - Cone:
- Polyester, Polyethylene Terephthalate (PET)
- Material - Magnet:
- Ferrite
- Ingress Protection:
- -
- Ratings:
- -
- Termination:
- Solder Pads
- Size / Dimension:
- 1.102" Dia (28.00mm)
| Image |  |
 |
 |
 |
 |

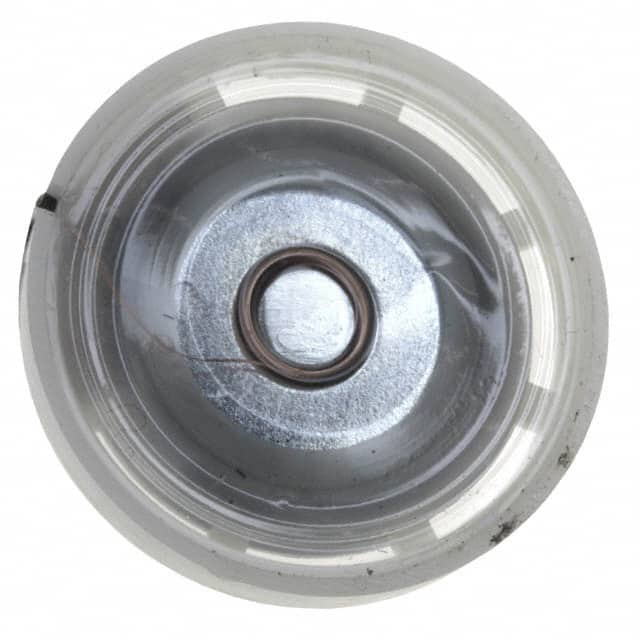

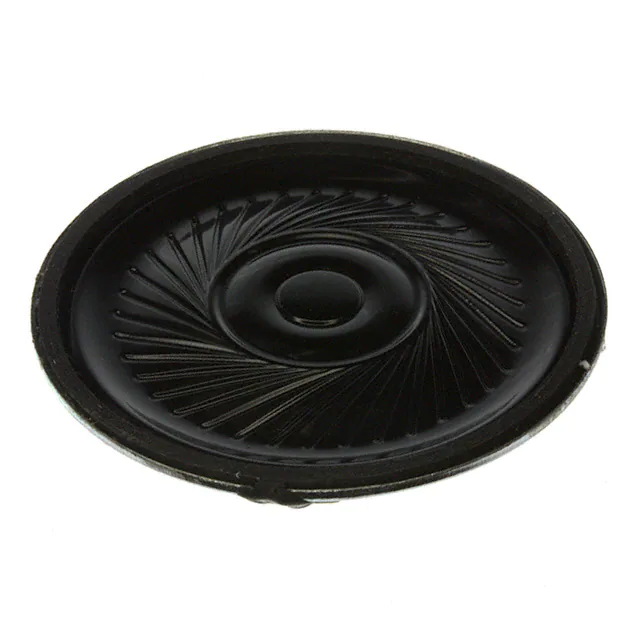

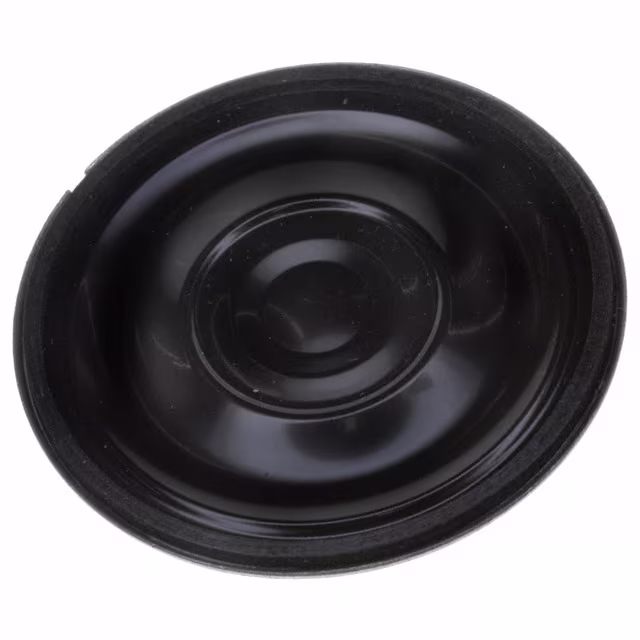

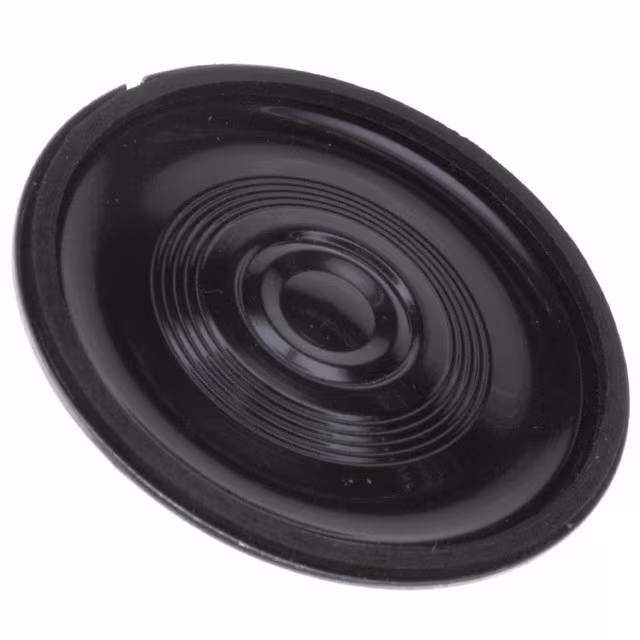

| Part Number | PSR-28N08A-JQ | PSR-29F08S02-JQ | PSR-40N08A05-JQ | PSR-45N08A-JQ | PSR-36N08A-JQ |
| Manufacturer | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. |
| Series | PSR | PSR | PSR | PSR | PSR |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Technology | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic |
| Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Frequency Range | 700 Hz ~ 8 kHz | 800 Hz ~ 4.5 kHz | 500 Hz ~ 5 kHz | 400 Hz ~ 6 kHz | 550 Hz ~ 7 kHz |
| Frequency - Self Resonant | 700Hz | 800Hz | 500Hz | 400Hz | 550Hz |
| Impedance | 8 Ohms | 8 Ohms | 8 Ohms | 8 Ohms | 8 Ohms |
| Efficiency - dBA | 89.00 | 84.00 | 89.00 | 88.00 | 89.00 |
| Efficiency - Testing | 1W/1M | 1W/1M | 1W/1M | 1W/1M | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) |
| Power - Rated | 250 mW | 250 mW | 250 mW | 250 mW | 250 mW |
| Power - Max | 500 mW | 500 mW | 500 mW | 300 mW | 500 mW |
| Port Location | Top | Top | Top | Top | Top |
| Shape | Round | Round | Round | Round | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) | Polyester, Polyethylene Terephthalate (PET) | Polyester, Polyethylene Terephthalate (PET) | Polyester, Polyethylene Terephthalate (PET) | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Ingress Protection | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Termination | Solder Pads | Solder Pads | Solder Pads | Solder Pads | Solder Pads |
| Size / Dimension | 1.102" Dia (28.00mm) | 1.142" Dia (29.00mm) | 1.575" Dia (40.00mm) | 1.772" Dia (45.00mm) | 1.417" Dia (36.00mm) |
