TDK Corporation HHM1517
- Part No.:
- HHM1517
- Manufacturer:
- TDK Corporation
- Category:
- Balun
- Package:
- 0805 (2012 Metric)
- Datasheet:
-
HHM1517.pdf
- Description:
- BALUN 2.4GHZ-2.5GHZ 50/50 0805
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
HHM1517 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TDK Corporation
- Series:
- HHM
- Package/Case:
- 0805 (2012 Metric)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Not For New Designs
- Frequency Range:
- 2.4GHz ~ 2.5GHz
- Impedance - Unbalanced/Balanced:
- 50 / 50Ohm
- Phase Difference:
- 180° ±10°
- Insertion Loss (Max):
- 1.2dB
- Return Loss (Min):
- 10dB
- Mounting Type:
- Surface Mount

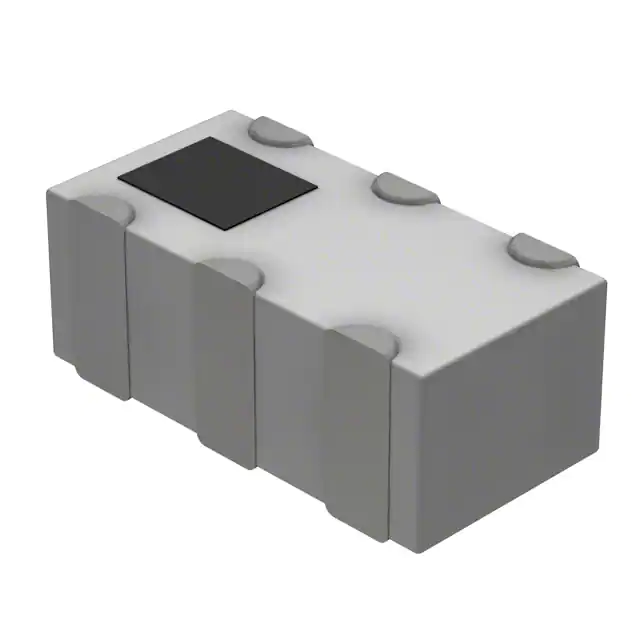

| Image |  |
 |
| Part Number | HHM1517 | HHM1517A2 |
| Manufacturer | TDK Corporation | TDK Corporation |
| Series | HHM | HHM |
| Package/Case | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Not For New Designs | Obsolete |
| Frequency Range | 2.4GHz ~ 2.5GHz | 2.3GHz ~ 2.5GHz |
| Impedance - Unbalanced/Balanced | 50 / 50Ohm | 50 / 50Ohm |
| Phase Difference | 180° ±10° | 180° ±10° |
| Insertion Loss (Max) | 1.2dB | 1.2dB |
| Return Loss (Min) | 10dB | 10dB |
| Mounting Type | Surface Mount | Surface Mount |
