Same Sky (Formerly CUI Devices) GF1004
- Part No.:
- GF1004
- Manufacturer:
- Same Sky (Formerly CUI Devices)
- Category:
- Speakers
- Package:
- Datasheet:
-
GF1004.pdf
- Description:
- SPEAKER 8OHM 6W TOP PORT 93DB
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
GF1004 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Same Sky (Formerly CUI Devices)
- Series:
- GF
- Packaging:
- Box
- Product Status:
- Active
- Technology:
- Magnetic
- Type:
- General Purpose
- Frequency Range:
- 145 Hz ~ 17 kHz
- Frequency - Self Resonant:
- 145Hz
- Impedance:
- 8 Ohms
- Efficiency - dBA:
- 93.00
- Efficiency - Testing:
- 1W/500mm
- Efficiency - Type:
- Sound Pressure Level (SPL)
- Power - Rated:
- 6 W
- Power - Max:
- 10 W
- Port Location:
- Top
- Shape:
- Round, Square Frame
- Material - Cone:
- Paper
- Material - Magnet:
- Ferrite
- Ingress Protection:
- -
- Ratings:
- -
- Termination:
- Solder Eyelet(s)
- Size / Dimension:
- 4.032" L x 4.032" W (102.40mm x 102.40mm)

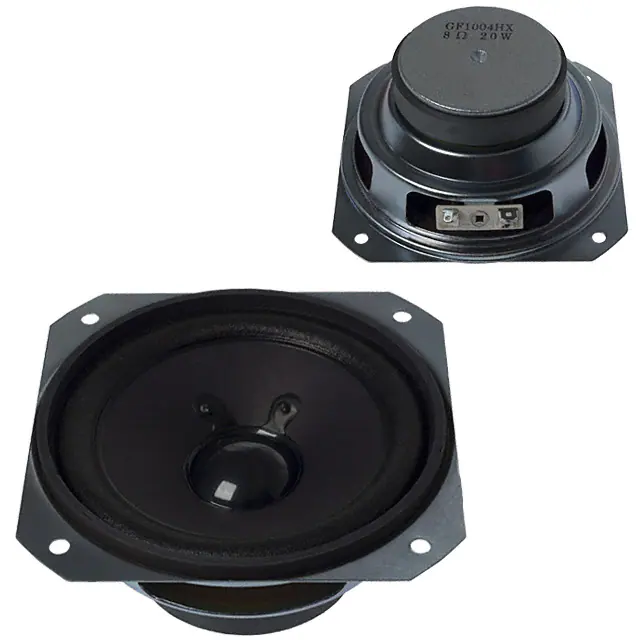

| Image |  |
 |
 |
| Part Number | GF1004 | GF1004M | GF1004H |
| Manufacturer | Same Sky (Formerly CUI Devices) | Same Sky (Formerly CUI Devices) | Same Sky (Formerly CUI Devices) |
| Series | GF | GF | GF |
| Packaging | Box | Box | Box |
| Product Status | Active | Active | Active |
| Technology | Magnetic | Magnetic | Magnetic |
| Type | General Purpose | General Purpose | General Purpose |
| Frequency Range | 145 Hz ~ 17 kHz | 230 Hz ~ 14 kHz | 100 Hz ~ 10 kHz |
| Frequency - Self Resonant | 145Hz | 230Hz | 100Hz |
| Impedance | 8 Ohms | 8 Ohms | 8 Ohms |
| Efficiency - dBA | 93.00 | 93.00 | 90.00 |
| Efficiency - Testing | 1W/500mm | 1W/500mm | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) |
| Power - Rated | 6 W | 6 W | 20 W |
| Power - Max | 10 W | 10 W | 40 W |
| Port Location | Top | Top | Top |
| Shape | Round, Square Frame | Round, Square Frame | Round, Square Frame |
| Material - Cone | Paper | Polyester, Polyethylene Terephthalate (PET) | Paper |
| Material - Magnet | Ferrite | Ferrite | Ferrite |
| Ingress Protection | - | - | - |
| Ratings | - | - | - |
| Termination | Solder Eyelet(s) | Solder Eyelet(s) | Solder Eyelet(s) |
| Size / Dimension | 4.032" L x 4.032" W (102.40mm x 102.40mm) | 4.016" L x 4.016" W (102.00mm x 102.00mm) | 4.016" L x 4.016" W (102.00mm x 102.00mm) |
