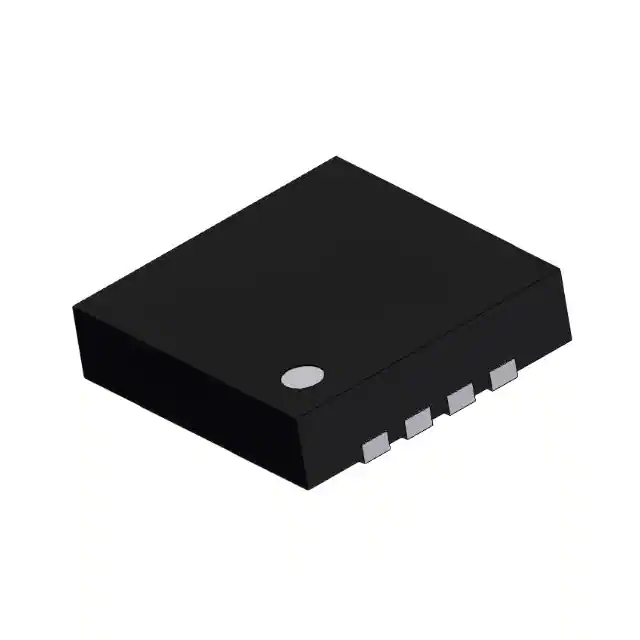

onsemi FDPC1012S-P

Product attributes

Attribute value

Manufacturer:

onsemi

Series:

PowerTrench®

Package/Case:

8-PowerWDFN

Packaging:

Bulk

Product Status:

Discontinued at Digi-Key

Technology:

MOSFET (Metal Oxide)

Configuration:

2 N-Channel

FET Feature:

-

Drain to Source Voltage (Vdss):

25V

Current - Continuous Drain (Id) @ 25°C:

13A (Ta), 35A (Tc), 26A (Ta), 88A (Tc)

Rds On (Max) @ Id, Vgs:

7mOhm @ 12A, 4.5V, 2.2mOhm @ 23A, 4.5V

Vgs(th) (Max) @ Id:

2.2V @ 250µA, 2.2V @ 1mA

Gate Charge (Qg) (Max) @ Vgs:

8nC @ 4.5V, 25nC @ 4.5V

Input Capacitance (Ciss) (Max) @ Vds:

1075pF @ 13V, 3456pF @ 13V

Power - Max:

1.6W (Ta), 2W (Ta)

Operating Temperature:

-55°C ~ 150°C (TJ)

Grade:

-

Qualification:

-

Mounting Type:

Surface Mount

Supplier Device Package:

Powerclip-33
