ECS Inc. ECS-UPO-3X5
- Part No.:
- ECS-UPO-3X5
- Manufacturer:
- ECS Inc.
- Category:
- Programmable Oscillators
- Package:
- 4-SMD, No Lead
- Datasheet:
-
ECS-UPO-3X5.pdf
- Description:
- XTAL OSC PROG BLANK 1MHZ-125MHZ
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ECS-UPO-3X5 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- ECS Inc.
- Package/Case:
- 4-SMD, No Lead
- Series:
- -
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Base Resonator:
- Crystal
- Type:
- XO (Standard)
- Programmable Type:
- Blank (User Must Program)
- Available Frequency Range:
- 1 MHz ~ 125 MHz
- Function:
- Enable/Disable
- Output:
- CMOS
- Voltage - Supply:
- 3.3V, 5V
- Frequency Stability:
- ±50ppm, ±100ppm
- Frequency Stability (Total):
- -
- Operating Temperature:
- -40°C ~ 85°C, 0° ~ 70°C
- Spread Spectrum Bandwidth:
- -
- Current - Supply (Max):
- 50mA
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- -
- Size / Dimension:
- 0.197" L x 0.124" W (5.00mm x 3.15mm)
- Height - Seated (Max):
- 0.043" (1.09mm)
| Image |  |
 |
 |
|
 |

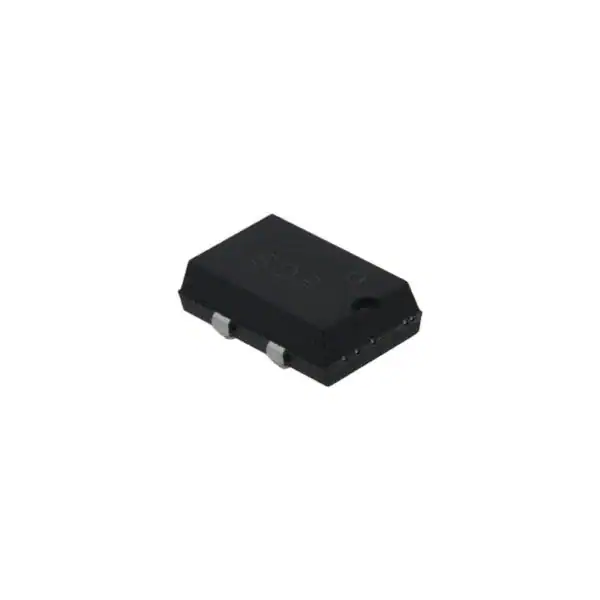

| Part Number | ECS-UPO-5X7-2 | ECS-UPO-3X5 | ECS-UPO-8PIN | ECS-UPO-8PINX | ECS-P8F3-A |
| Manufacturer | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| Package/Case | 4-SMD, No Lead | 4-SMD, No Lead | 8-DIP, 4 Leads (Half Size, Metal Can) | 8-DIP, 4 Leads (Half Size, Metal Can) | 4-SOJ, 5.08mm pitch |
| Series | - | - | - | - | ECS-P8F3X |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tube | Tube |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Base Resonator | Crystal | Crystal | Crystal | Crystal | Crystal |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Programmable Type | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) | Programmed by Digi-Key (Enter your frequency in Web Order Notes) |
| Available Frequency Range | 1 MHz ~ 150 MHz | 1 MHz ~ 125 MHz | 1 MHz ~ 150 MHz | 1 MHz ~ 150 MHz | 1 MHz ~ 125 MHz |
| Function | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable |
| Output | CMOS | CMOS | CMOS | CMOS | HCMOS |
| Voltage - Supply | 3.3V, 5V | 3.3V, 5V | 3.3V, 5V | 3.3V, 5V | 3.3V |
| Frequency Stability | ±50ppm, ±100ppm | ±50ppm, ±100ppm | ±50ppm, ±100ppm | ±50ppm, ±100ppm | - |
| Frequency Stability (Total) | - | - | - | - | ±100ppm |
| Operating Temperature | -40°C ~ 85°C, 0° ~ 70°C | -40°C ~ 85°C, 0° ~ 70°C | -40°C ~ 85°C | -40°C ~ 85°C | -10°C ~ 70°C |
| Spread Spectrum Bandwidth | - | - | - | - | - |
| Current - Supply (Max) | 45mA | 50mA | 45mA | 45mA | 28mA |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Through Hole | Through Hole | Surface Mount |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.197" L x 0.124" W (5.00mm x 3.15mm) | 0.520" L x 0.520" W (13.20mm x 13.20mm) | 0.520" L x 0.520" W (13.20mm x 13.20mm) | 0.551" L x 0.341" W (14.00mm x 8.65mm) |
| Height - Seated (Max) | 0.067" (1.70mm) | 0.043" (1.09mm) | 0.213" (5.40mm) | 0.213" (5.40mm) | 0.185" (4.70mm) |
