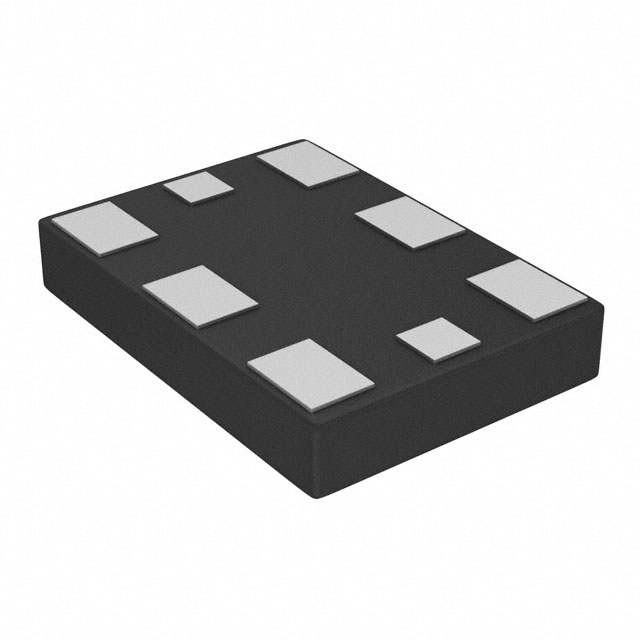

Texas Instruments LMK61E2BAA-SIAT
- Part No.:
- LMK61E2BAA-SIAT
- Manufacturer:
- Texas Instruments
- Category:
- Programmable Oscillators
- Package:
- 8-SMD Module
- Datasheet:
-
LMK61E2BAA-SIAT.pdf
- Description:
- IC OSC CLOCK 1GHZ 8QFM
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LMK61E2BAA-SIAT Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Texas Instruments
- Package/Case:
- 8-SMD Module
- Series:
- LMK61E2
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Base Resonator:
- Silicon
- Type:
- VCXO
- Programmable Type:
- Factory-Configured
- Available Frequency Range:
- 10 MHz ~ 1 GHz
- Function:
- Enable/Disable
- Output:
- HCSL, LVDS, LVPECL
- Voltage - Supply:
- 3.3V
- Frequency Stability:
- -
- Frequency Stability (Total):
- ±50ppm
- Operating Temperature:
- -40°C ~ 85°C
- Spread Spectrum Bandwidth:
- -
- Current - Supply (Max):
- 208mA
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 8-QFM (7x5)
- Size / Dimension:
- 0.276" L x 0.197" W (7.00mm x 5.00mm)
- Height - Seated (Max):
- 0.045" (1.15mm)
| Image |  |
|
| Part Number | LMK61E2BAA-SIAT | LMK61E2BAA-SIAR |
| Manufacturer | Texas Instruments | Texas Instruments |
| Package/Case | 8-SMD Module | 8-SMD Module |
| Series | LMK61E2 | LMK61E2 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active |
| Base Resonator | Silicon | Silicon |
| Type | VCXO | VCXO |
| Programmable Type | Factory-Configured | Factory-Configured |
| Available Frequency Range | 10 MHz ~ 1 GHz | 10 MHz ~ 1 GHz |
| Function | Enable/Disable | Enable/Disable |
| Output | HCSL, LVDS, LVPECL | HCSL, LVDS, LVPECL |
| Voltage - Supply | 3.3V | 3.3V |
| Frequency Stability | - | - |
| Frequency Stability (Total) | ±50ppm | ±50ppm |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - |
| Current - Supply (Max) | 208mA | 208mA |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 8-QFM (7x5) | 8-QFM (7x5) |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.045" (1.15mm) | 0.045" (1.15mm) |
