TDK Corporation ECO2420SEO-D04V0110
- Part No.:
- ECO2420SEO-D04V0110
- Manufacturer:
- TDK Corporation
- Category:
- Switching Converter, SMPS Transformers
- Package:
- Datasheet:
-
ECO2420SEO-D04V0110.pdf
- Description:
- XFMR FLYBCK AC/DC CONV 1.54MH TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ECO2420SEO-D04V0110 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TDK Corporation
- Series:
- ECO
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- For AC/DC Converters
- Applications:
- Flyback Converters
- Intended Chipset:
- -
- Chipset Manufacturer:
- -
- Voltage - Primary:
- 214 ~ 404V
- Voltage - Auxiliary:
- 12V @ 1.25A, 14V @ 250mA
- Voltage - Isolation:
- 1500Vrms
- Inductance @ Frequency:
- 1.54mH @ 10kHz
- Frequency:
- -
- Operating Temperature:
- -30°C ~ 120°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Size / Dimension:
- 1.240" L x 0.984" W (31.50mm x 25.00mm)
- Height - Seated (Max):
- 1.043" (26.50mm)
- Footprint:
- 1.240" L x 0.984" W (31.50mm x 25.00mm)
- Style:
- -
| Image |  |
 |
 |
 |

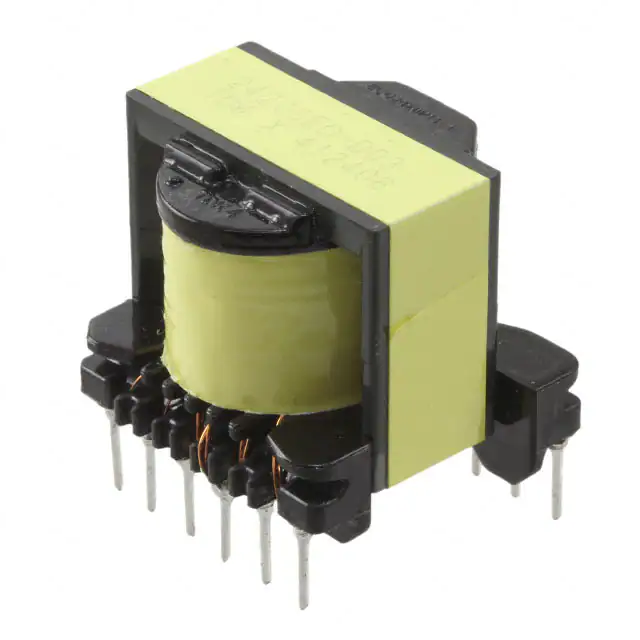

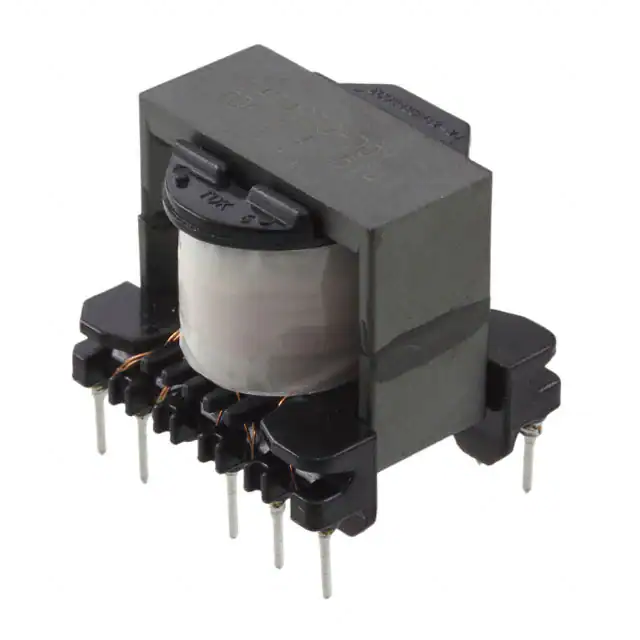

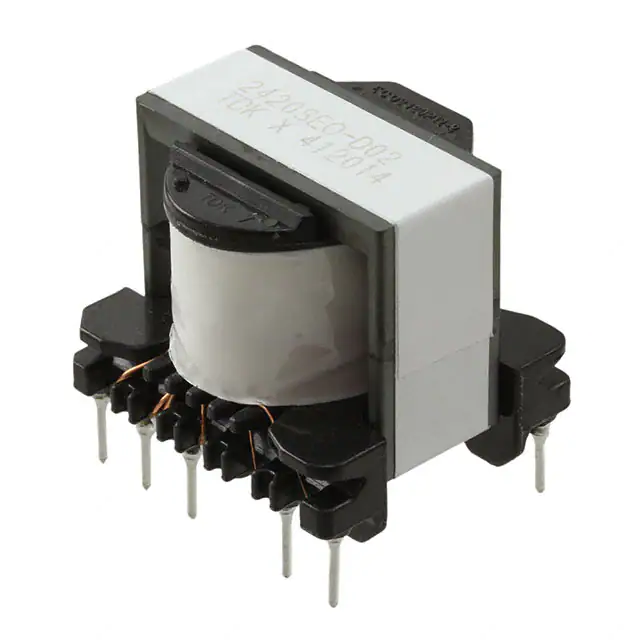

| Part Number | ECO2420SEO-D04V0110 | ECO2420SEO-D01V019 | ECO2420SEO-D02V019 | ECO2420SEO-D03V018 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Series | ECO | ECO | ECO | ECO |
| Packaging | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active |
| Type | For AC/DC Converters | For AC/DC Converters | For AC/DC Converters | For AC/DC Converters |
| Applications | Flyback Converters | Flyback Converters | Flyback Converters | Flyback Converters |
| Intended Chipset | - | - | - | - |
| Chipset Manufacturer | - | - | - | - |
| Voltage - Primary | 214 ~ 404V | 200 ~ 300V | 85 ~ 138V | 169 ~ 312V |
| Voltage - Auxiliary | 12V @ 1.25A, 14V @ 250mA | 5V @ 200mA, 12V @ 800mA, 17V @ 20mA, 17V @ 170mA | 12.3V @ 3.3A | 5V @ 200mA, 12V @ 2.5A |
| Voltage - Isolation | 1500Vrms | 2000Vrms | 3000Vrms | 3000Vrms |
| Inductance @ Frequency | 1.54mH @ 10kHz | 4.72mH @ 10kHz | 278µH @ 10kHz | 750µH @ 100kHz |
| Frequency | - | - | 33kHz | 60kHz |
| Operating Temperature | -30°C ~ 120°C | -30°C ~ 120°C | -30°C ~ 120°C | -30°C ~ 120°C |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Size / Dimension | 1.240" L x 0.984" W (31.50mm x 25.00mm) | 1.122" L x 0.945" W (28.50mm x 24.00mm) | 1.122" L x 0.945" W (28.50mm x 24.00mm) | 1.240" L x 0.984" W (31.50mm x 25.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) | 1.043" (26.50mm) | 1.043" (26.50mm) | 1.043" (26.50mm) |
| Footprint | 1.240" L x 0.984" W (31.50mm x 25.00mm) | 1.122" L x 0.945" W (28.50mm x 24.00mm) | 1.122" L x 0.945" W (28.50mm x 24.00mm) | 1.240" L x 0.984" W (31.50mm x 25.00mm) |
| Style | - | - | - | - |
