BOE DV550FHM-NVV
- Part No.:
- DV550FHM-NVV
- Manufacturer:
- BOE
- Category:
- TFT-LCD Panel
- Package:
- Description:
- BOE 55" Video Wall IPS LCM 1920×1080 500nits WLED LVDS 51pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
DV550FHM-NVV Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 55"
- TNVAIPS:
- IPS
- Resolution:
- 1920×1080
- CR:
- 1900/2/19 0:01:00
- Viewing Angle:
- 89/89/89/89
- Colors:
- 16.7M
- Outline Size:
- 1210.8(H)×681.6(V) ×59.3(D) mm
- Treatment:
- Antiglare (Haze 25%), Hard coating (3H)
- Brightness:
- 500 cd/m² (Typ.)
- Contrast Ratio:
- 1200:1 (Typ.) (TM)
- View Direction:
- Symmetry
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 8 (Typ.)(G to G)
- Best View on:
- Work Mode:
- ADS, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 97% sRGB
- Mass:
- Used for:
- Video Wall
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz
| Image |  |
 |
 |
 |
 |

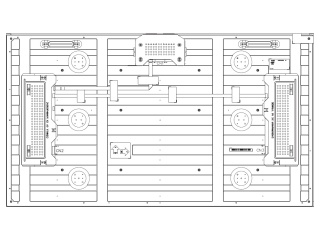

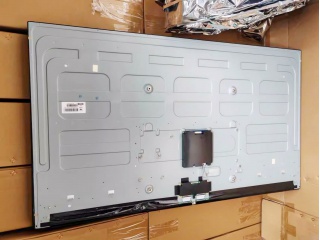

| Part Number | DV550FHM-NN0 | DV550FHM-NVD | DV550FHM-NN1 | DV550FHM-NV8 | DV550FHM-NVH |
| Manufacturer | BOE | BOE | BOE | BOE | BOE |
| Panel Size | 55" | 55" | 55" | 55" | 55" |
| TNVAIPS | IPS | IPS | IPS | IPS | IPS |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 |
| CR | 1900/2/19 0:01:00 | 1900/2/19 0:01:00 | 1900/2/19 0:01:00 | 1900/2/19 0:01:00 | 1900/2/19 0:01:00 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Colors | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Outline Size | 1230.4(H)×706.8(V) ×40.2(D) mm | 1210.48(W)×681.28(H) ×56.44(D) mm | 1230.4(W)×706.8(H) ×31.7(D) mm | 1213.5(H)×684.3(V) ×61(D) mm | 1211.3(W)×682.1(H) ×57.2(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 1%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (2H) | ||
| Brightness | 350 cd/m² (Typ.) | 500 cd/m² (Typ.) | 400 cd/m² (Typ.) | 500 cd/m² (Typ.) | 500 cd/m² (Min.) |
| Contrast Ratio | 1200:1 (Typ.) (TM) | 1200:1 (Typ.) (TM) | 1200:1 (Typ.) (TM) | ||
| View Direction | Symmetry | Symmetry | |||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) |
| Response Time | 8 (Typ.)(G to G) | 8 (Typ.)(G to G) | 8 (Typ.)(G to G) | ||
| Best View on | Symmetry | Symmetry | Symmetry | ||
| Work Mode | ADS, Normally Black, Transmissive | ADSDS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | ||
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | 16.7M 72% NTSC | 16.7M 72% NTSC | 16.7M 70% NTSC | 16.7M 72% NTSC | 16.7M 72% NTSC |
| Mass | 13.3Kgs (Typ.) | 15.0Kgs (Typ.) | |||
| Used for | Digital Signage | ||||
| Touch Screen | Without | Without | Without | ||
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz |
