Microchip Technology ATSHA204A-SSHDA-T
- Part No.:
- ATSHA204A-SSHDA-T
- Manufacturer:
- Microchip Technology
- Category:
- Specialized ICs
- Package:
- 8-SOIC (0.154", 3.90mm Width)
- Description:
- IC AUTHENTICATION CHIP 8SOIC
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details

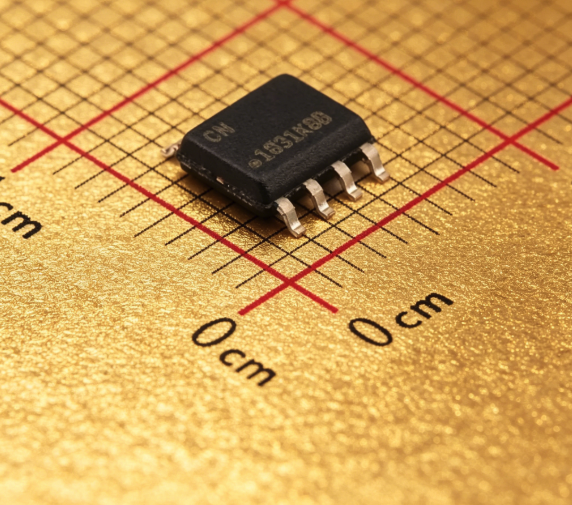

ATSHA204A-SSHDA-T - Microchip SHA-256 CryptoAuthentication™ IC (SOIC-8)
The ATSHA204A-SSHDA-T is a high-security CryptoAuthentication™ device from Microchip Technology. It provides advanced hardware-based security for SHA-256 hash algorithm applications, including message authentication code (MAC) and hash-based message authentication code (HMAC). Housed in a standard SOIC-8 package, it is designed for easy integration into industrial, consumer, and automotive systems to prevent cloning and unauthorized hardware tampering.
Product Focus: This version utilizes the SOIC-8 footprint, making it ideal for systems where ease of assembly and high-reliability soldering are prioritized.
Overview & Security Architecture
The ATSHA204A-SSHDA-T is an ideal solution for protecting intellectual property (IP) and ensuring brand integrity. It features a secure 4.5Kb EEPROM that can store keys, certificates, and non-volatile data, protected by sophisticated hardware-level anti-tamper mechanisms.
Unlike software-based security, the ATSHA204A executes the SHA-256 algorithm in a dedicated hardware zone, shielding sensitive keys from being read even if the host microcontroller is compromised. It supports a high-quality Random Number Generator (RNG) to ensure the uniqueness of every challenge-response session.
About Microchip Technology
Microchip Technology Inc. is a leading provider of smart, connected, and secure embedded control solutions. Their hardware security portfolio, centered around the CryptoAuthentication™ brand, is the industry leader for root-of-trust implementations.
By providing low-cost, low-power, and easy-to-implement security ICs, Microchip enables developers to defend their systems against increasingly sophisticated cyber and physical threats.
Key Advantages
Delivers ultra-secure message authentication that is immune to software-based eavesdropping and extraction.
Standard leaded package simplifies PCB design and is highly resilient to thermal and mechanical stress.
Protects up to 16 keys in an encrypted EEPROM zone that is physically shielded from probing.
Supports dual-interface options for maximum flexibility, requiring as few as one GPIO for operation.

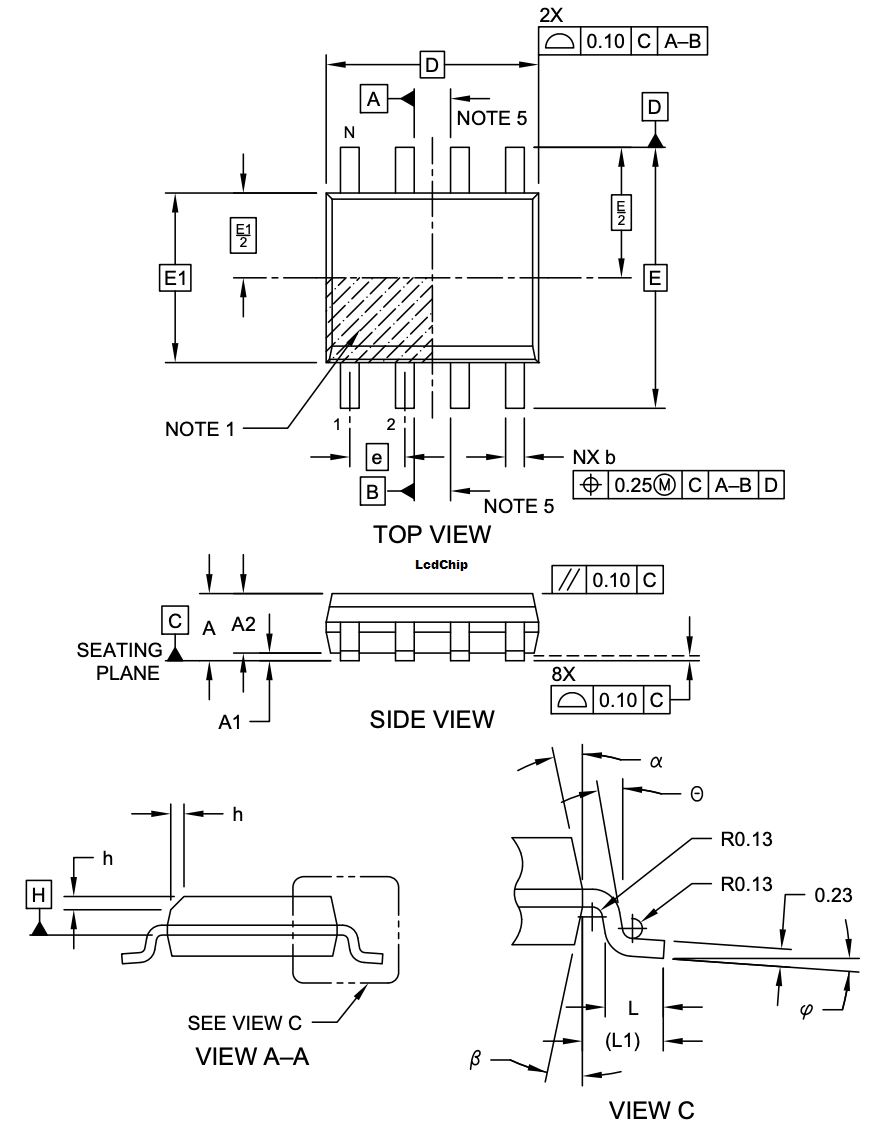

Package & Mechanical Specs
The ATSHA204A-SSHDA-T is supplied in the widely used 8-lead SOIC (Small Outline Integrated Circuit) package.
- Package Code: SS (8S1 standard).
- Dimensions: 3.90 mm x 4.90 mm body.
- Operating Temp: -40°C to +85°C.
- Storage Temp: -65°C to +150°C.
Pin Functions
The 8-lead SOIC pinout is optimized for standard I2C or Single-Wire communication.
Technical Specifications
| Manufacturer | Microchip Technology |
|---|---|
| Algorithm | SHA-256 |
| Secure Storage | 4.5 Kb EEPROM |
| Voltage Supply | 2.0V to 5.5V |
| Interface | I2C / Single-Wire |
| Package | SOIC-8 |
| Sleep Current | < 150 nA |
| Unique ID | 72-bit Serial Number |
Equivalent & Replacement Guide
Replacement for the ATSHA204A-SSHDA-T should prioritize pin-compatibility and interface logic.
- ATSHA204A-MAHDA-T: Functional equivalent in a smaller UDFN (2x3) package.
- ATECC608B-SSHDA-T: Pin-compatible upgrade with ECC (Elliptic Curve Cryptography) support for enhanced cloud security.
- DS28E15 (Analog Devices): Alternative authentication IC (Note: Different command set and interface logic).
Typical Application Fields
Medical Accessories
Validating the authenticity of disposable probes and surgical attachments to ensure patient safety.
Industrial Control
Protecting PLC firmware and preventing uncertified modules from entering industrial networks.
Consumer Electronics
Anti-cloning for batteries, cables, and smart home peripherals.
Network Equipment
Providing hardware root-of-trust for routers, switches, and edge computing gateways.
Quality & Authenticity
- Tamper Evidence: Integrated active shields and environmental sensors protect internal data.
- FIPS-Standard Support: High-quality RNG compliant with FIPS SP800-90A/B/C.
- Authorized Distribution: We provide full Lot Date Code (LDC) traceability for all Microchip security components.
Technical FAQ
Is the ATSHA204A-SSHDA-T pin-compatible with standard 24C series EEPROMs?
What is the benefit of the SOIC package over UDFN?
Disclaimer
ATSHA204A-SSHDA-T Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Microchip Technology
- Series:
- CryptoAuthentication™
- Package/Case:
- 8-SOIC (0.154", 3.90mm Width)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Programmable:
- Not Verified
- Type:
- Authentication Chip
- Applications:
- Networking and Communications
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 8-SOIC
- Grade:
- -
- Qualification:
- -
- Include Parts
- Popular Search
The following parts include "ATSHA204A-SSHDA-T" in Silicon Labs ATSHA204A-SSHDA-T.
- Part Number
- Manufacturer
- Package
- Description
- CAP200DG-TL Power Integrations 8-SOIC (0.154", 3.90mm Width) IC AUTOMATIC DISCHARGE 8SO
- ATSHA204A-MAHDA-T Microchip Technology 8-UFDFN Exposed Pad IC AUTHENTICATION CHIP 8UDFN
- ATSHA204A-SSHDA-T Microchip Technology 8-SOIC (0.154", 3.90mm Width) IC AUTHENTICATION CHIP 8SOIC
- ATSHA204A-STUCZ-T Microchip Technology TO-236-3, SC-59, SOT-23-3 IC AUTHENTICATION CHIP SOT23-3
- ATECC608B-MAHDA-T Microchip Technology 8-UFDFN Exposed Pad IC AUTHENTICATION CHIP 8UDFN
- ATECC608B-MAHCZ-S Microchip Technology 8-UFDFN Exposed Pad IC AUTHENTICATION CHIP 8UDFN
- ATECC608B-SSHDA-T Microchip Technology 8-SOIC (0.154", 3.90mm Width) IC AUTHENTICATION CHIP 8SOIC
- ATECC608B-MAHDA-S Microchip Technology 8-UFDFN Exposed Pad IC AUTHENTICATION CHIP 8UDFN
- ATECC608A-MAHDA-S Microchip Technology 8-UFDFN Exposed Pad IC AUTHENTICATION CHIP 8UDFN
- ATECC608B-MAVDA-T Microchip Technology 8-UFDFN Exposed Pad IC AUTHENTICATION CHIP 8UDFN
