Eaton - Electronics Division DRQ125-100-R

Name: DRQ125-100-R
Brand: Eaton - Electronics Division
SKU: DRQ125-100-R
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: DRQ125-100-R

Manufacturer:: Eaton - Electronics Division

Category:: Arrays, Signal Transformers

Package:: Nonstandard

Datasheet:: DRQ125-100-R.pdf

Description:: INDUCT ARRAY 2 COIL 9.654UH SMD

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

DRQ125-100-R Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Eaton - Electronics Division

Series:: DRQ

Package/Case:: Nonstandard

Packaging:: Tape & Reel (TR)

Product Status:: Active

Number of Coils:: 2

Inductance - Connected In Parallel:: 9.654 µH

Inductance - Connected In Series:: 38.62 µH

Tolerance:: ±20%

Current Rating - Parallel:: 5.35 A

Current Rating - Series:: 2.67 A

Current Saturation - Parallel:: 7.17 A

Current Saturation - Series:: 3.59 A

DC Resistance (DCR) - Parallel:: 18.9mOhm

DC Resistance (DCR) - Series:: 75.7mOhm

Shielding:: Shielded

Ratings:: -

Operating Temperature:: -40°C ~ 125°C

Mounting Type:: Surface Mount

Size / Dimension:: 0.492" L x 0.492" W (12.50mm x 12.50mm)

Height:: 0.236" (6.00mm)

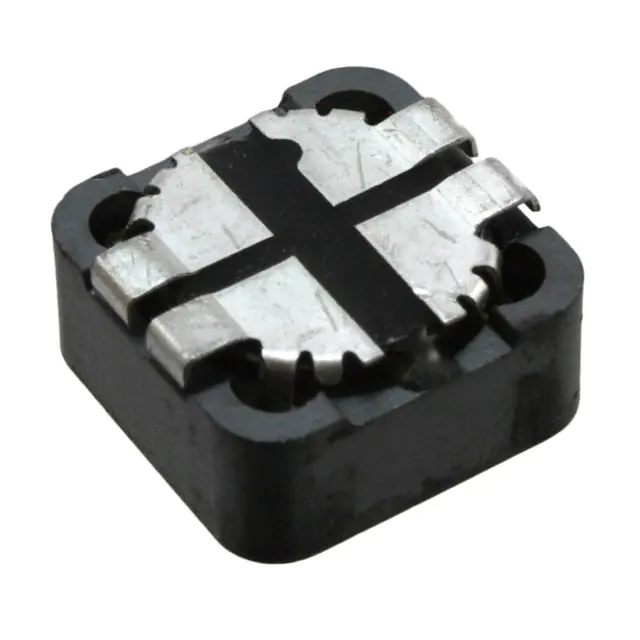

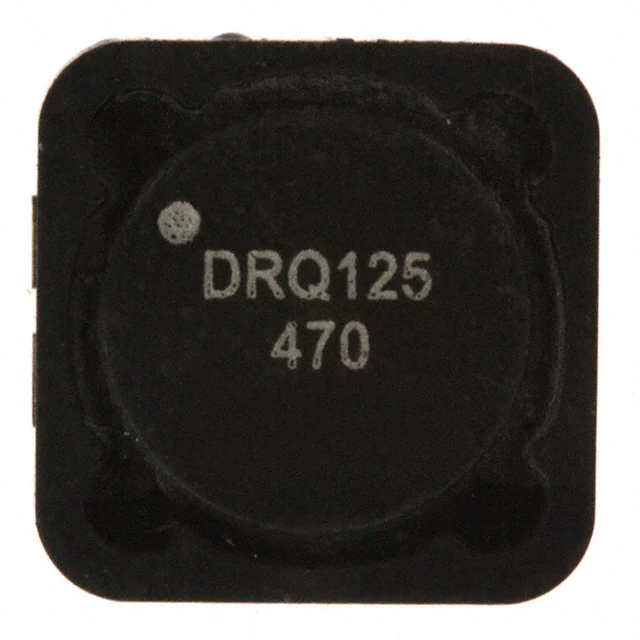

Part Number	DRQ125-100-R	DRQ125-220-R	DRQ125-330-R	DRQ125-470-R	DRQ125-3R3-R
Manufacturer	Eaton - Electronics Division	Eaton - Electronics Division	Eaton - Electronics Division	Eaton - Electronics Division	Eaton - Electronics Division
Series	DRQ	DRQ	DRQ	DRQ	DRQ
Package/Case	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Product Status	Active	Active	Active	Active	Active
Number of Coils	2	2	2	2	2
Inductance - Connected In Parallel	9.654 µH	22.36 µH	33.74 µH	47.47 µH	3.084 µH
Inductance - Connected In Series	38.62 µH	89.44 µH	135 µH	189.9 µH	12.34 µH
Tolerance	±20%	±20%	±20%	±20%	±20%
Current Rating - Parallel	5.35 A	3.7 A	3.28 A	2.71 A	9.26 A
Current Rating - Series	2.67 A	1.84 A	1.64 A	1.35 A	4.63 A
Current Saturation - Parallel	7.17 A	4.71 A	3.84 A	3.24 A	12.7 A
Current Saturation - Series	3.59 A	2.36 A	1.92 A	1.62 A	6.35 A
DC Resistance (DCR) - Parallel	18.9mOhm	39.6mOhm	50.5mOhm	74mOhm	6.3mOhm
DC Resistance (DCR) - Series	75.7mOhm	159mOhm	203mOhm	297mOhm	25.3mOhm
Shielding	Shielded	Shielded	Shielded	Shielded	Shielded
Ratings	-	-	-	-	-
Operating Temperature	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Size / Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)
