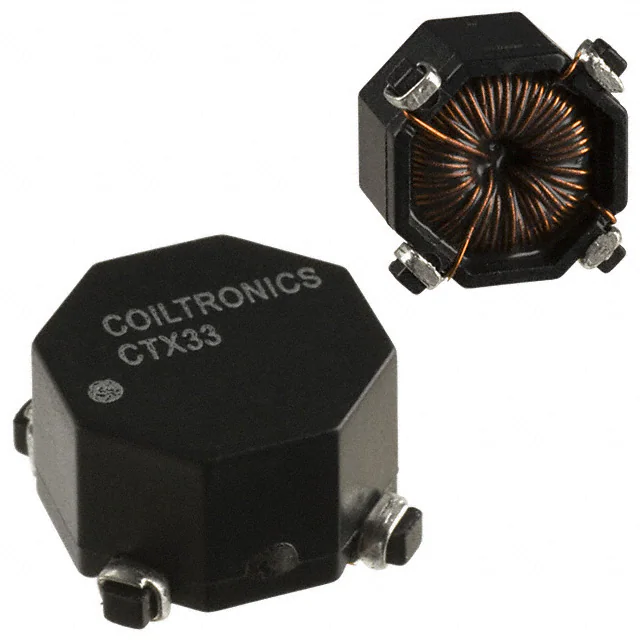

Eaton - Electronics Division CTX33-2P-R

Name: CTX33-2P-R
Brand: Eaton - Electronics Division
SKU: CTX33-2P-R
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: CTX33-2P-R

Manufacturer:: Eaton - Electronics Division

Category:: Arrays, Signal Transformers

Package:: Nonstandard

Datasheet:: CTX33-2P-R.pdf

Description:: INDUCT ARRAY 2 COIL 32.67UH SMD

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

CTX33-2P-R Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Eaton - Electronics Division

Series:: Econo-Pac™

Package/Case:: Nonstandard

Packaging:: Tape & Reel (TR)

Product Status:: Active

Number of Coils:: 2

Inductance - Connected In Parallel:: 32.67 µH

Inductance - Connected In Series:: 130.7 µH

Tolerance:: ±20%

Current Rating - Parallel:: 1.3 A

Current Rating - Series:: 650 mA

Current Saturation - Parallel:: -

Current Saturation - Series:: -

DC Resistance (DCR) - Parallel:: 126mOhm Max

DC Resistance (DCR) - Series:: 503mOhm Max

Shielding:: Unshielded

Ratings:: -

Operating Temperature:: -40°C ~ 85°C

Mounting Type:: Surface Mount

Size / Dimension:: 0.450" L x 0.450" W (11.43mm x 11.43mm)

Height:: 0.235" (5.97mm)

Part Number	CTX33-3P-R	CTX33-2P-R	CTX33-2-R	CTX33-3-R	CTX33-1P-R
Manufacturer	Eaton - Electronics Division	Eaton - Electronics Division	Eaton - Electronics Division	Eaton - Electronics Division	Eaton - Electronics Division
Series	Econo-Pac™	Econo-Pac™	OCTA-PAC®	OCTA-PAC®	Econo-Pac™
Package/Case	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Product Status	Active	Active	Active	Active	Active
Number of Coils	2	2	2	2	2
Inductance - Connected In Parallel	32.63 µH	32.67 µH	31.77 µH	32.86 µH	32.33 µH
Inductance - Connected In Series	130.54 µH	130.7 µH	127.09 µH	131.42 µH	129.32 µH
Tolerance	±20%	±20%	±20%	±20%	±20%
Current Rating - Parallel	1.3 A	1.3 A	1.4 A	960 mA	800 mA
Current Rating - Series	650 mA	650 mA	700 mA	480 mA	400 mA
Current Saturation - Parallel	-	-	-	-	-
Current Saturation - Series	-	-	-	-	-
DC Resistance (DCR) - Parallel	146mOhm Max	126mOhm Max	105mOhm Max	83mOhm Max	250mOhm Max
DC Resistance (DCR) - Series	571mOhm Max	503mOhm Max	420mOhm Max	331mOhm Max	1.001Ohm Max
Shielding	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded
Ratings	-	-	-	-	-
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Size / Dimension	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.450" L x 0.450" W (11.43mm x 11.43mm)
Height	0.190" (4.83mm)	0.235" (5.97mm)	0.235" (5.97mm)	0.190" (4.83mm)	0.165" (4.19mm)
