Eaton - Electronics Division CTX100-2-R

Name: CTX100-2-R
Brand: Eaton - Electronics Division
SKU: CTX100-2-R
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: CTX100-2-R

Manufacturer:: Eaton - Electronics Division

Category:: Arrays, Signal Transformers

Package:: Nonstandard

Datasheet:: CTX100-2-R.pdf

Description:: INDUCT ARRAY 2 COIL 99.45UH SMD

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

CTX100-2-R Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Eaton - Electronics Division

Series:: OCTA-PAC®

Package/Case:: Nonstandard

Packaging:: Tape & Reel (TR)

Product Status:: Active

Number of Coils:: 2

Inductance - Connected In Parallel:: 99.45 µH

Inductance - Connected In Series:: 397.81 µH

Tolerance:: ±20%

Current Rating - Parallel:: 630 mA

Current Rating - Series:: 320 mA

Current Saturation - Parallel:: -

Current Saturation - Series:: -

DC Resistance (DCR) - Parallel:: 457mOhm Max

DC Resistance (DCR) - Series:: 1.828Ohm Max

Shielding:: Unshielded

Ratings:: -

Operating Temperature:: -40°C ~ 85°C

Mounting Type:: Surface Mount

Size / Dimension:: 0.450" L x 0.450" W (11.43mm x 11.43mm)

Height:: 0.235" (5.97mm)

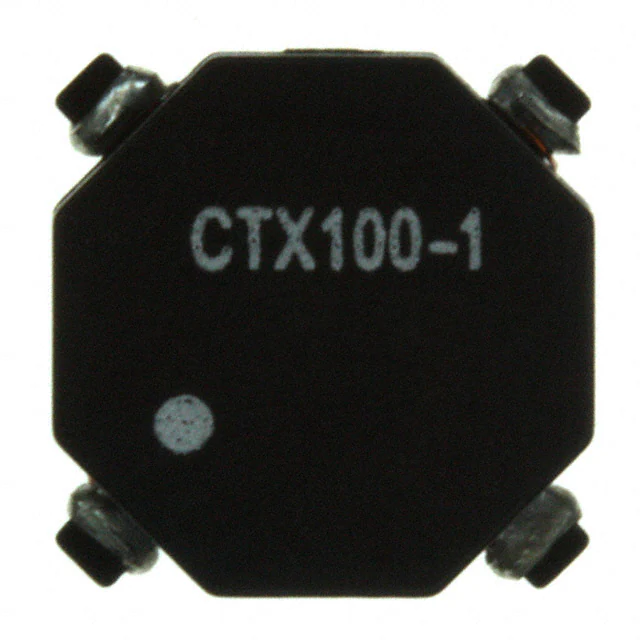

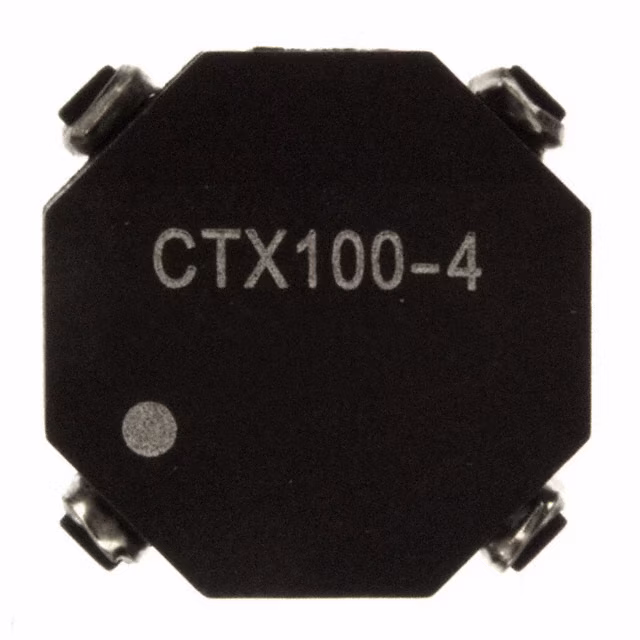

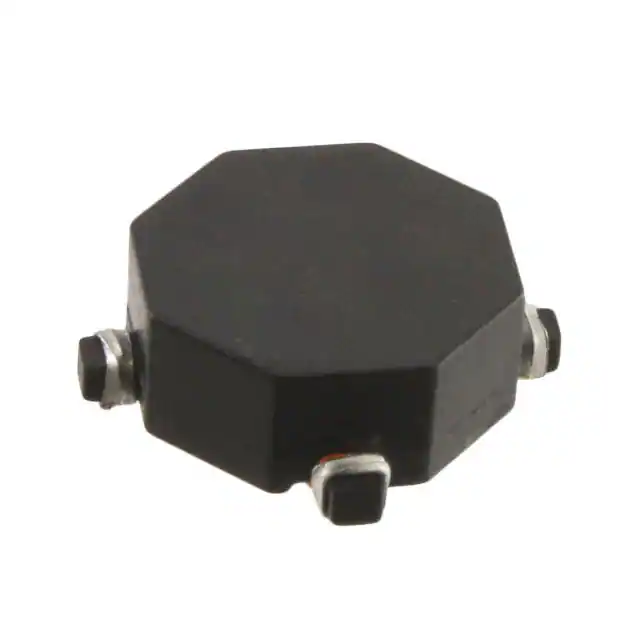

Part Number	CTX100-2-R	CTX100-4-R	CTX100-2P-R	CTX100-1P-R	CTX100-1-R
Manufacturer	Eaton - Electronics Division	Eaton - Electronics Division	Eaton - Electronics Division	Eaton - Electronics Division	Eaton - Electronics Division
Series	OCTA-PAC®	OCTA-PAC®	Econo-Pac™	Econo-Pac™	OCTA-PAC®
Package/Case	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Product Status	Active	Active	Active	Active	Active
Number of Coils	2	2	2	2	2
Inductance - Connected In Parallel	99.45 µH	99.23 µH	99.14 µH	99.01 µH	99.23 µH
Inductance - Connected In Series	397.81 µH	396.9 µH	396.58 µH	396.06 µH	396.9 µH
Tolerance	±20%	±20%	±20%	±20%	±20%
Current Rating - Parallel	630 mA	920 mA	620 mA	540 mA	440 mA
Current Rating - Series	320 mA	460 mA	310 mA	270 mA	220 mA
Current Saturation - Parallel	-	-	-	-	-
Current Saturation - Series	-	-	-	-	-
DC Resistance (DCR) - Parallel	457mOhm Max	302mOhm Max	541mOhm Max	557mOhm Max	784mOhm Max
DC Resistance (DCR) - Series	1.828Ohm Max	1.21Ohm Max	2.162Ohm Max	2.227Ohm Max	3.137Ohm Max
Shielding	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded
Ratings	-	-	-	-	-
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Size / Dimension	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.450" L x 0.450" W (11.43mm x 11.43mm)
Height	0.235" (5.97mm)	0.250" (6.35mm)	0.235" (5.97mm)	0.165" (4.19mm)	0.165" (4.19mm)
