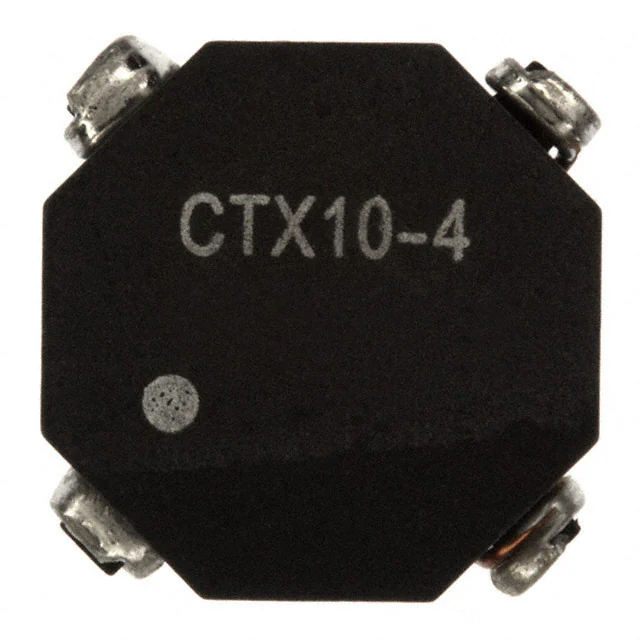

Eaton - Electronics Division CTX10-4-R

Name: CTX10-4-R
Brand: Eaton - Electronics Division
SKU: CTX10-4-R
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: CTX10-4-R

Manufacturer:: Eaton - Electronics Division

Category:: Arrays, Signal Transformers

Package:: Nonstandard

Datasheet:: CTX10-4-R.pdf

Description:: INDUCT ARRAY 2 COIL 9.6UH SMD

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

CTX10-4-R Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Eaton - Electronics Division

Series:: OCTA-PAC®

Package/Case:: Nonstandard

Packaging:: Tape & Reel (TR)

Product Status:: Active

Number of Coils:: 2

Inductance - Connected In Parallel:: 9.6 µH

Inductance - Connected In Series:: 38.42 µH

Tolerance:: ±20%

Current Rating - Parallel:: 3.4 A

Current Rating - Series:: 1.7 A

Current Saturation - Parallel:: -

Current Saturation - Series:: -

DC Resistance (DCR) - Parallel:: 19mOhm Max

DC Resistance (DCR) - Series:: 78mOhm Max

Shielding:: Unshielded

Ratings:: -

Operating Temperature:: -40°C ~ 85°C

Mounting Type:: Surface Mount

Size / Dimension:: 0.550" L x 0.550" W (13.97mm x 13.97mm)

Height:: 0.250" (6.35mm)

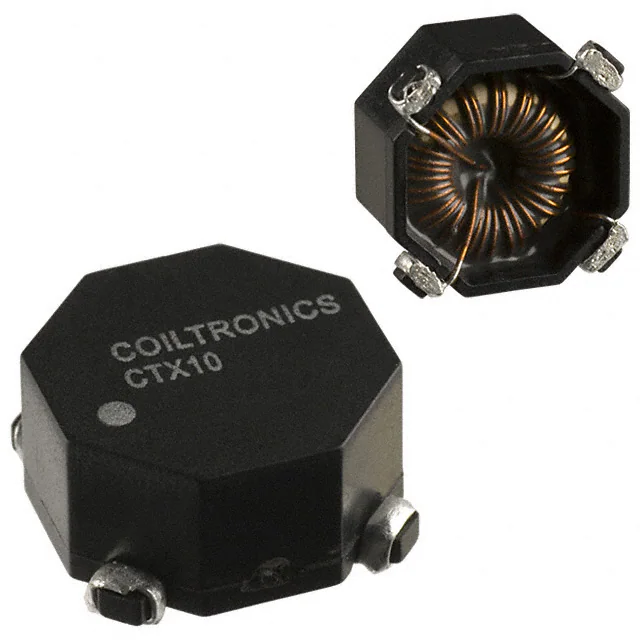

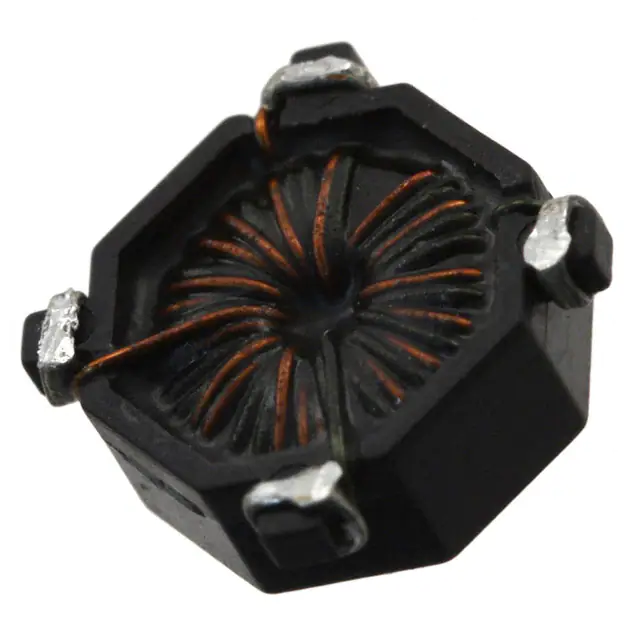

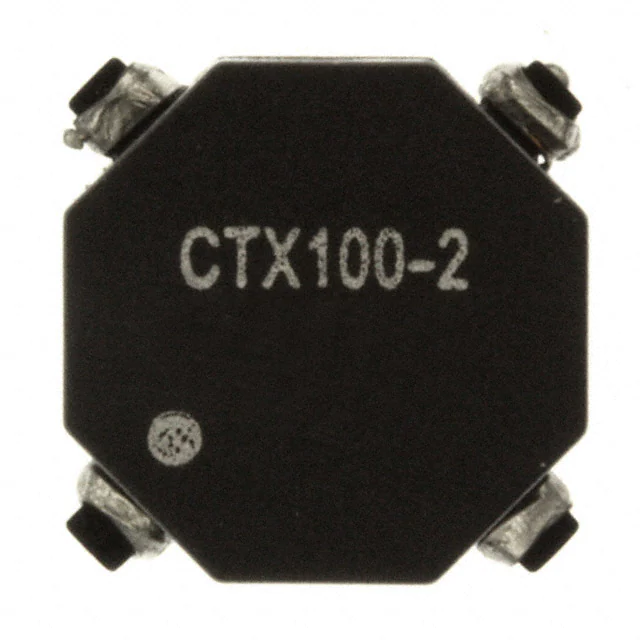

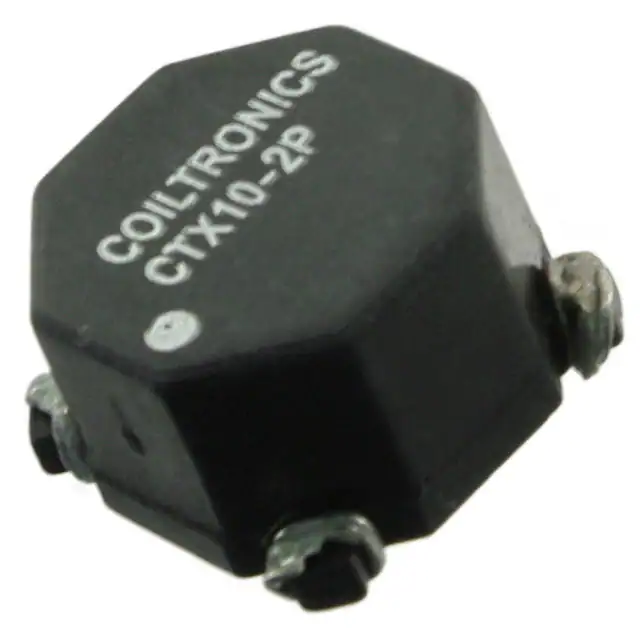

Part Number	CTX10-2P-R	CTX10-4-R	CTX100-2-R	CTX10-1-R	CTX10-4A-R
Manufacturer	Eaton - Electronics Division	Eaton - Electronics Division	Eaton - Electronics Division	Eaton - Electronics Division	Eaton - Electronics Division
Series	Econo-Pac™	OCTA-PAC®	OCTA-PAC®	OCTA-PAC®	OCTA-PAC® PLUS
Package/Case	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Product Status	Active	Active	Active	Active	Active
Number of Coils	2	2	2	2	2
Inductance - Connected In Parallel	9.83 µH	9.6 µH	99.45 µH	10 µH	10.53 µH
Inductance - Connected In Series	39.3 µH	38.42 µH	397.81 µH	40 µH	42.11 µH
Tolerance	±20%	±20%	±20%	±20%	±25%
Current Rating - Parallel	2.1 A	3.4 A	630 mA	1.9 A	4.67 A
Current Rating - Series	1.05 A	1.7 A	320 mA	950 mA	2.33 A
Current Saturation - Parallel	-	-	-	-	4.09 A
Current Saturation - Series	-	-	-	-	2.05 A
DC Resistance (DCR) - Parallel	45mOhm Max	19mOhm Max	457mOhm Max	44mOhm Max	20mOhm Max
DC Resistance (DCR) - Series	179mOhm Max	78mOhm Max	1.828Ohm Max	176mOhm Max	81mOhm Max
Shielding	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded
Ratings	-	-	-	-	-
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Size / Dimension	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.550" L x 0.550" W (13.97mm x 13.97mm)
Height	0.235" (5.97mm)	0.250" (6.35mm)	0.235" (5.97mm)	0.165" (4.19mm)	0.250" (6.35mm)
