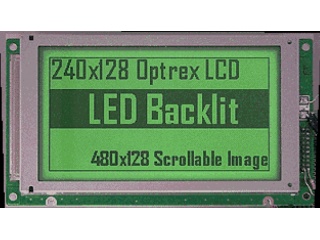

Kyocera Display DMF50773NF-FW
- Part No.:
- DMF50773NF-FW
- Manufacturer:
- Kyocera Display
- Category:
- STN Graphic Display
- Package:
- Description:
- Kyocera Display 5.4" 240×128 FSTN-LCD Black/White mode Transflective YG-LED T6963C-0101 CPU 22pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
DMF50773NF-FW Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Kyocera Display
- Panel Size:
- 5.4"
- Panel Type:
- FSTN-LCD
- Resolution:
- 240×128
- Viewing Area:
- 126.0×70.0
- Outline Size:
- 170(H)×95(V) ×16.7(D) mm
- Treatment:
- -
- Brightness:
- 40 cd/m² (Min.)
- Contrast Ratio:
- 6:1 (Typ.) (TM) 6:1 (Typ.) (RF)
- View Direction:
- 6 o'clock
- Viewing Angle:
- -
- Response Time:
- 200/300 (Typ.)(Tr/Td)
- Best View on:
- Work Mode:
- STN, Black/White mode, Transflective
- Glass Thickness:
- Transmissivity:
- Color Depth:
- Monochrome
- Backlight:
- YG-LED , W/O Driver
- Mass:
- 250g (Max.)
- Touch Screen:
- Without
- Refresh Rate:
- 70Hz
- Driver IC list:
- Signal Type:
- 8-bit parallel , 22 pins
| Image |  |
 |
| Part Number | DMF50773NF-FW | DMF50773NF-SLY |
| Manufacturer | Kyocera Display | Kyocera Display |
| Panel Size | 5.4" | 5.4" |
| Panel Type | FSTN-LCD | FSTN-LCD |
| Resolution | 240×128 | 240×128 |
| Viewing Area | 126.0×70.0 | 126.0×70.0 |
| Outline Size | 170(H)×95(V) ×16.7(D) mm | 170(W)×95(H) ×16.7(D) mm |
| Treatment | - | - |
| Brightness | 40 cd/m² (Min.) | 40 cd/m² (Min.) |
| Contrast Ratio | 6:1 (Typ.) (TM) 6:1 (Typ.) (RF) | 6:1 (Typ.) (TM) 6:1 (Typ.) (RF) |
| View Direction | 6 o'clock | |
| Viewing Angle | - | - |
| Response Time | 200/300 (Typ.)(Tr/Td) | 200/300 (Typ.)(Tr/Td) |
| Best View on | 6 o'clock | |
| Work Mode | STN, Black/White mode, Transflective | STN, Black/White mode, Transflective |
| Glass Thickness | ||
| Transmissivity | ||
| Color Depth | Monochrome | Monochrome |
| Backlight | YG-LED , W/O Driver | YG-LED , Without Driver |
| Mass | 250g (Max.) | 250g (Max.) |
| Touch Screen | Without | Without |
| Refresh Rate | 70Hz | 70Hz |
| Driver IC list | ||
| Signal Type | 8-bit parallel , 22 pins | 8-bit parallel , 22 pins |
