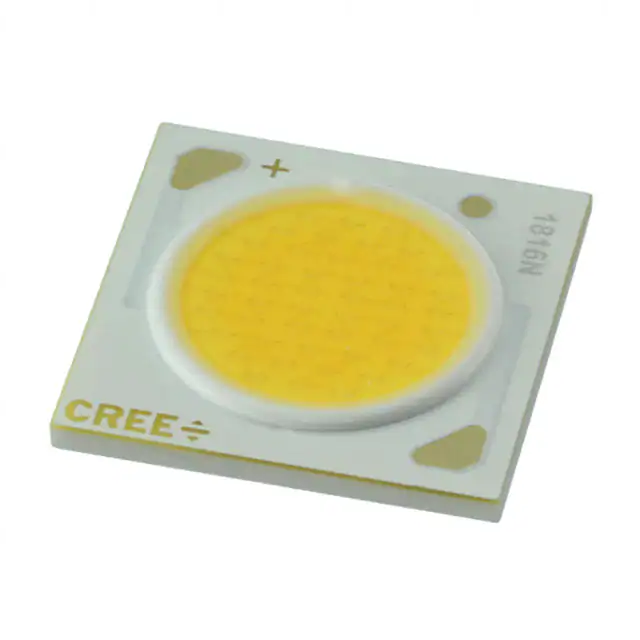

Cree LED CXA2530-0000-000N0HT440G

Name: CXA2530-0000-000N0HT440G
Brand: Cree LED
SKU: CXA2530-0000-000N0HT440G
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: CXA2530-0000-000N0HT440G

Manufacturer:: Cree LED

Category:: LED COBs, Engines, Modules, Strips

Package:

Datasheet:: CXA2530-0000-000N0HT440G.pdf

Description:: LED COB XLAMP NEUT WHT SQU 4000K

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

CXA2530-0000-000N0HT440G Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Cree LED

Series:: XLamp® CXA2530

Packaging:: Tray

Product Status:: Active

Type:: Chip On Board (COB)

Color:: White, Neutral

CCT (K):: 4000K 3-Step MacAdam Ellipse

Wavelength:: -

Configuration:: Square

Luminous Flux @ Current/Temperature:: 3560lm (3440lm ~ 3680lm)

Current - Test:: 800mA

Temperature - Test:: 85°C

Voltage - Forward (Vf) (Typ):: 36V

Lumens/Watt @ Current - Test:: 124 lm/W

Current - Max:: 1.6A

CRI (Color Rendering Index):: 80

Viewing Angle:: 115°

Features:: -

Size / Dimension:: 23.85mm L x 23.85mm W

Height:: 1.70mm

Light Emitting Surface (LES):: 19.00mm Dia

Lens Type:: Flat

Part Number	CXA2530-0000-000N0HT440G	CXA2530-0000-000N0YR227G	CXA2530-0000-000N00U20E3	CXA2530-0000-000N00T230G	CXA2530-0000-000N00T20E5
Manufacturer	Cree LED	Cree LED	Cree LED	Cree LED	Cree LED
Series	XLamp® CXA2530	XLamp® CXA2530	XLamp® CXA2530	XLamp® CXA2530	XLamp® CXA2530
Packaging	Tray	Tray	Tray	Tray	Tray
Product Status	Active	Active	Active	Active	Active
Type	Chip On Board (COB)	Chip On Board (COB)	Chip On Board (COB)	Chip On Board (COB)	Chip On Board (COB)
Color	White, Neutral	White, Warm	White, Cool	White, Warm	White, Neutral
CCT (K)	4000K 3-Step MacAdam Ellipse	2700K 3-Step MacAdam Ellipse	5000K	3000K 3-Step MacAdam Ellipse	4000K
Wavelength	-	-	-	-	-
Configuration	Square	Square	Square	Square	Square
Luminous Flux @ Current/Temperature	3560lm (3440lm ~ 3680lm)	2510lm (2420lm ~ 2600lm)	3818lm (3680lm ~ 3955lm)	3320lm (3200lm ~ 3440lm)	3320lm (3200lm ~ 3440lm)
Current - Test	800mA	800mA	800mA	800mA	800mA
Temperature - Test	85°C	85°C	85°C	85°C	85°C
Voltage - Forward (Vf) (Typ)	36V	36V	37V	36V	37V
Lumens/Watt @ Current - Test	124 lm/W	87 lm/W	129 lm/W	115 lm/W	112 lm/W
Current - Max	1.6A	1.6A	1.6A	1.6A	1.6A
CRI (Color Rendering Index)	80	93	70	80	70
Viewing Angle	115°	115°	115°	115°	115°
Features	-	-	-	-	-
Size / Dimension	23.85mm L x 23.85mm W	23.85mm L x 23.85mm W	23.85mm L x 23.85mm W	23.85mm L x 23.85mm W	23.85mm L x 23.85mm W
Height	1.70mm	1.70mm	1.70mm	1.70mm	1.70mm
Light Emitting Surface (LES)	19.00mm Dia	19.00mm Dia	19.00mm Dia	19.00mm Dia	19.00mm Dia
Lens Type	Flat	Flat	Flat	Flat	Flat
