Eaton - Electronics Division CTX50-3P-R

Name: CTX50-3P-R
Brand: Eaton - Electronics Division
SKU: CTX50-3P-R
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: CTX50-3P-R

Manufacturer:: Eaton - Electronics Division

Category:: Arrays, Signal Transformers

Package:: Nonstandard

Datasheet:: CTX50-3P-R.pdf

Description:: INDUCT ARRAY 2 COIL 50.02UH SMD

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

CTX50-3P-R Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Eaton - Electronics Division

Series:: Econo-Pac™

Package/Case:: Nonstandard

Packaging:: Tape & Reel (TR)

Product Status:: Active

Number of Coils:: 2

Inductance - Connected In Parallel:: 50.02 µH

Inductance - Connected In Series:: 200.1 µH

Tolerance:: ±20%

Current Rating - Parallel:: 920 mA

Current Rating - Series:: 460 mA

Current Saturation - Parallel:: -

Current Saturation - Series:: -

DC Resistance (DCR) - Parallel:: 277mOhm Max

DC Resistance (DCR) - Series:: 1.108Ohm Max

Shielding:: Unshielded

Ratings:: -

Operating Temperature:: -40°C ~ 85°C

Mounting Type:: Surface Mount

Size / Dimension:: 0.550" L x 0.550" W (13.97mm x 13.97mm)

Height:: 0.190" (4.83mm)

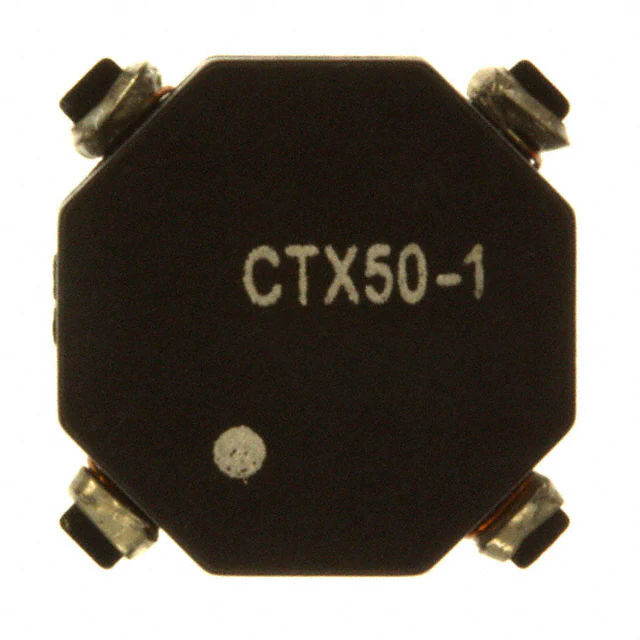

Part Number	CTX50-3P-R	CTX50-4-R	CTX50-4P-R	CTX50-1-R	CTX50-2-R
Manufacturer	Eaton - Electronics Division	Eaton - Electronics Division	Eaton - Electronics Division	Eaton - Electronics Division	Eaton - Electronics Division
Series	Econo-Pac™	OCTA-PAC®	Econo-Pac™	OCTA-PAC®	OCTA-PAC®
Package/Case	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Product Status	Active	Active	Active	Active	Active
Number of Coils	2	2	2	2	2
Inductance - Connected In Parallel	50.02 µH	50.18 µH	48.8 µH	50.63 µH	51.18 µH
Inductance - Connected In Series	200.1 µH	200.7 µH	195.2 µH	202.5 µH	204.73 µH
Tolerance	±20%	±20%	±20%	±20%	±20%
Current Rating - Parallel	920 mA	1.5 A	1.2 A	640 mA	920 mA
Current Rating - Series	460 mA	750 mA	600 mA	320 mA	460 mA
Current Saturation - Parallel	-	-	-	-	-
Current Saturation - Series	-	-	-	-	-
DC Resistance (DCR) - Parallel	277mOhm Max	111mOhm Max	201mOhm Max	365mOhm Max	210mOhm Max
DC Resistance (DCR) - Series	1.108Ohm Max	443mOhm Max	805mOhm Max	1.461Ohm Max	839mOhm Max
Shielding	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded
Ratings	-	-	-	-	-
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Size / Dimension	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.450" L x 0.450" W (11.43mm x 11.43mm)
Height	0.190" (4.83mm)	0.250" (6.35mm)	0.250" (6.35mm)	0.165" (4.19mm)	0.235" (5.97mm)
