Eaton - Electronics Division CTX150-4-R

Name: CTX150-4-R
Brand: Eaton - Electronics Division
SKU: CTX150-4-R
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: CTX150-4-R

Manufacturer:: Eaton - Electronics Division

Category:: Arrays, Signal Transformers

Package:: Nonstandard

Datasheet:: CTX150-4-R.pdf

Description:: INDUCT ARRAY 2 COIL 148.23UH SMD

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

CTX150-4-R Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Eaton - Electronics Division

Series:: OCTA-PAC®

Package/Case:: Nonstandard

Packaging:: Tape & Reel (TR)

Product Status:: Active

Number of Coils:: 2

Inductance - Connected In Parallel:: 148.23 µH

Inductance - Connected In Series:: 592.9 µH

Tolerance:: ±20%

Current Rating - Parallel:: 820 mA

Current Rating - Series:: 410 mA

Current Saturation - Parallel:: -

Current Saturation - Series:: -

DC Resistance (DCR) - Parallel:: 372mOhm Max

DC Resistance (DCR) - Series:: 1.488Ohm Max

Shielding:: Unshielded

Ratings:: -

Operating Temperature:: -40°C ~ 85°C

Mounting Type:: Surface Mount

Size / Dimension:: 0.550" L x 0.550" W (13.97mm x 13.97mm)

Height:: 0.250" (6.35mm)

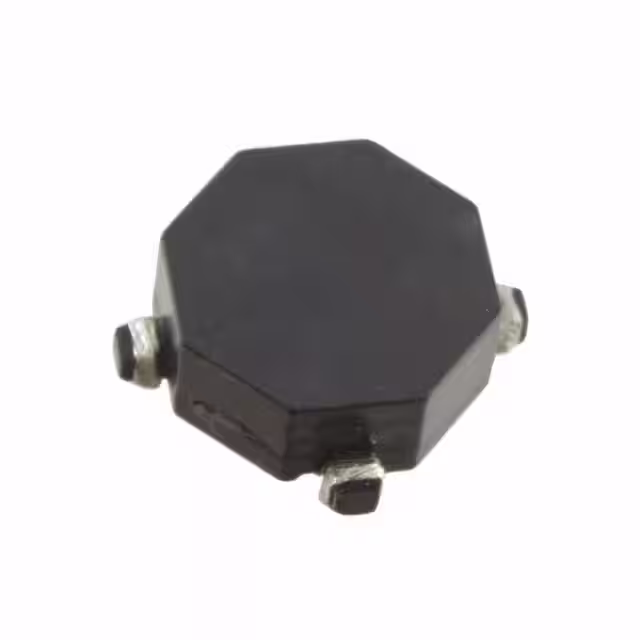

Part Number	CTX150-4-R	CTX150-2P-R	CTX150-1-R	CTX150-4A-R	CTX150-4P-R
Manufacturer	Eaton - Electronics Division	Eaton - Electronics Division	Eaton - Electronics Division	Eaton - Electronics Division	Eaton - Electronics Division
Series	OCTA-PAC®	Econo-Pac™	OCTA-PAC®	OCTA-PAC® PLUS	Econo-Pac™
Package/Case	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Product Status	Active	Active	Active	Active	Active
Number of Coils	2	2	2	2	2
Inductance - Connected In Parallel	148.23 µH	148.1 µH	148.23 µH	153.5 µH	149.45 µH
Inductance - Connected In Series	592.9 µH	592.42 µH	592.9 µH	613.9 µH	597.8 µH
Tolerance	±20%	±20%	±20%	±25%	±20%
Current Rating - Parallel	820 mA	560 mA	380 mA	1.1 A	640 mA
Current Rating - Series	410 mA	280 mA	190 mA	550 mA	320 mA
Current Saturation - Parallel	-	-	-	1.07 A	-
Current Saturation - Series	-	-	-	540 mA	-
DC Resistance (DCR) - Parallel	372mOhm Max	665mOhm Max	965mOhm Max	365mOhm Max	696mOhm Max
DC Resistance (DCR) - Series	1.488Ohm Max	2.66Ohm Max	3.861Ohm Max	1.462Ohm Max	2.784Ohm Max
Shielding	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded
Ratings	-	-	-	-	-
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Size / Dimension	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.550" L x 0.550" W (13.97mm x 13.97mm)
Height	0.250" (6.35mm)	0.235" (5.97mm)	0.165" (4.19mm)	0.250" (6.35mm)	0.250" (6.35mm)
