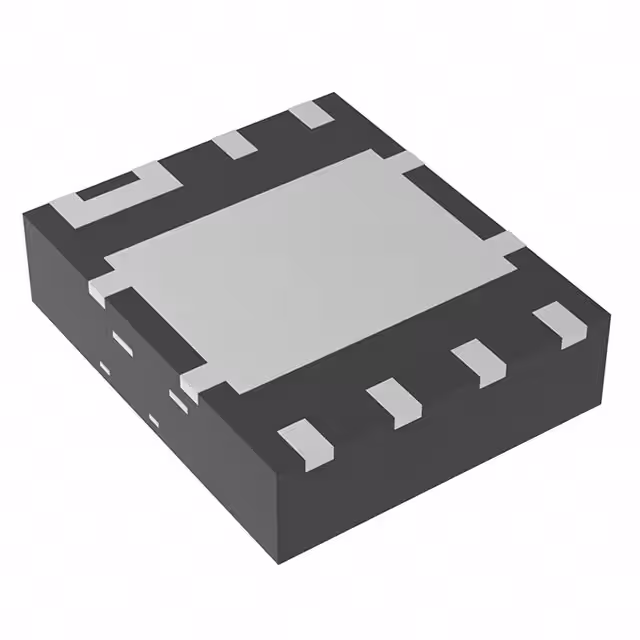

Texas Instruments CSD86350Q5D

Product attributes

Attribute value

Manufacturer:

Texas Instruments

Series:

NexFET™

Package/Case:

8-PowerLDFN

Packaging:

Tape & Reel (TR)

Product Status:

Active

Technology:

MOSFET (Metal Oxide)

Configuration:

2 N-Channel (Half Bridge)

FET Feature:

Logic Level Gate

Drain to Source Voltage (Vdss):

25V

Current - Continuous Drain (Id) @ 25°C:

40A

Rds On (Max) @ Id, Vgs:

6mOhm @ 20A, 8V

Vgs(th) (Max) @ Id:

2.1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs:

10.7nC @ 4.5V

Input Capacitance (Ciss) (Max) @ Vds:

1870pF @ 12.5V

Power - Max:

13W

Operating Temperature:

-55°C ~ 150°C (TJ)

Grade:

-

Qualification:

-

Mounting Type:

Surface Mount

Supplier Device Package:

8-LSON (5x6)
