Citizen Finedevice Co Ltd CM200C-32.768KHZF-T

Name: CM200C-32.768KHZF-T
Brand: Citizen Finedevice Co Ltd
SKU: CM200C-32.768KHZF-T
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: CM200C-32.768KHZF-T

Manufacturer:: Citizen Finedevice Co Ltd

Category:: Crystals

Package:: 4-SOJ, 5.50mm pitch

Datasheet:: CM200C-32.768KHZF-T.pdf

Description:: 8.0X3.8 - 32.768 , +/-5PPM , 12.

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

CM200C-32.768KHZF-T Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Citizen Finedevice Co Ltd

Series:: CM200C

Package/Case:: 4-SOJ, 5.50mm pitch

Packaging:: Tape & Reel (TR)

Product Status:: Active

Type:: kHz Crystal (Tuning Fork)

Frequency:: 32.768 kHz

Frequency Stability:: -

Frequency Tolerance:: ±5ppm

Load Capacitance:: 12.5pF

ESR (Equivalent Series Resistance):: 50 kOhms

Operating Mode:: Fundamental

Operating Temperature:: -40°C ~ 85°C

Ratings:: -

Mounting Type:: Surface Mount

Supplier Device Package:: -

Size / Dimension:: 0.315" L x 0.150" W (8.00mm x 3.80mm)

Height - Seated (Max):: 0.098" (2.50mm)

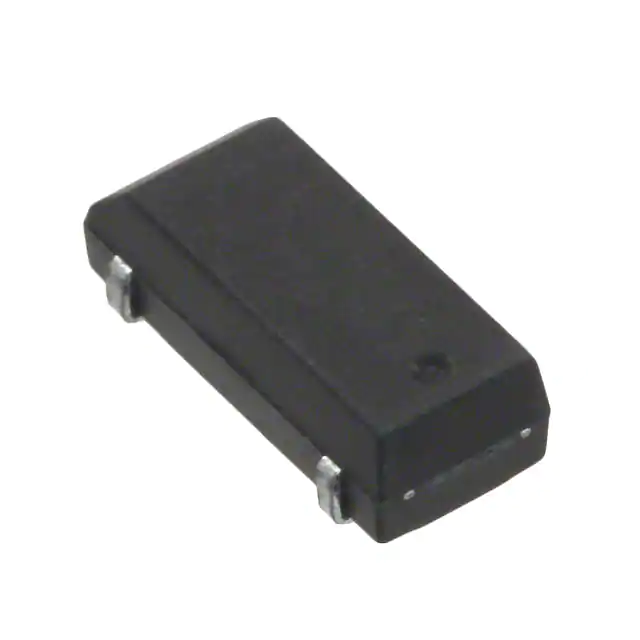

Part Number	CM200C32768DZCT	CM200C32768DZBT	CM200C32768DZYT	CM200C32768AZBT	CM200C32768EZBT
Manufacturer	Citizen Finedevice Co Ltd	Citizen Finedevice Co Ltd	Citizen Finedevice Co Ltd	Citizen Finedevice Co Ltd	Citizen Finedevice Co Ltd
Series	CM200C	CM200C	CM200C	CM200C	CM200C
Package/Case	4-SOJ, 5.50mm pitch	4-SOJ, 5.50mm pitch	4-SOJ, 5.50mm pitch	4-SOJ, 5.50mm pitch	4-SOJ, 5.50mm pitch
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Product Status	Active	Obsolete	Obsolete	Obsolete	Obsolete
Type	kHz Crystal (Tuning Fork)	kHz Crystal (Tuning Fork)	kHz Crystal (Tuning Fork)	kHz Crystal (Tuning Fork)	kHz Crystal (Tuning Fork)
Frequency	32.768 kHz	32.768 kHz	32.768 kHz	32.768 kHz	32.768 kHz
Frequency Stability	-	-	-	-	-
Frequency Tolerance	±20ppm	±20ppm	±20ppm	±30ppm	±10ppm
Load Capacitance	9pF	6pF	7pF	6pF	6pF
ESR (Equivalent Series Resistance)	50 kOhms	50 kOhms	50 kOhms	50 kOhms	50 kOhms
Operating Mode	Fundamental	Fundamental	Fundamental	Fundamental	Fundamental
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Ratings	-	-	-	-	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Supplier Device Package	-	-	-	-	-
Size / Dimension	0.315" L x 0.150" W (8.00mm x 3.80mm)	0.315" L x 0.150" W (8.00mm x 3.80mm)	0.315" L x 0.150" W (8.00mm x 3.80mm)	0.315" L x 0.150" W (8.00mm x 3.80mm)	0.315" L x 0.150" W (8.00mm x 3.80mm)
Height - Seated (Max)	0.100" (2.55mm)	0.100" (2.55mm)	0.100" (2.55mm)	0.100" (2.55mm)	0.100" (2.55mm)
