Luminus Devices Inc. CDM-6-3018-90-18-DW02

Name: CDM-6-3018-90-18-DW02
Brand: Luminus Devices Inc.
SKU: CDM-6-3018-90-18-DW02
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: CDM-6-3018-90-18-DW02

Manufacturer:: Luminus Devices Inc.

Category:: LED COBs, Engines, Modules, Strips

Package:

Datasheet:: CDM-6-3018-90-18-DW02.pdf

Description:: LED MOD CDM WARM WHT RECT 3000K

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

CDM-6-3018-90-18-DW02 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Luminus Devices Inc.

Series:: CDM, Human Centric (HCL)

Packaging:: Tray

Product Status:: Active

Type:: LED Module

Color:: White, Warm

CCT (K):: 1800K ~ 3000K

Wavelength:: -

Configuration:: Rectangle

Luminous Flux @ Current/Temperature:: 438lm (Typ)

Current - Test:: 300mA

Temperature - Test:: 85°C

Voltage - Forward (Vf) (Typ):: 17.8V

Lumens/Watt @ Current - Test:: 82 lm/W

Current - Max:: 440mA

CRI (Color Rendering Index):: 90

Viewing Angle:: 130°

Features:: Dimming - Warm

Size / Dimension:: 15.00mm L x 12.00mm W

Height:: 1.58mm

Light Emitting Surface (LES):: 6.80mm Dia

Lens Type:: Flat

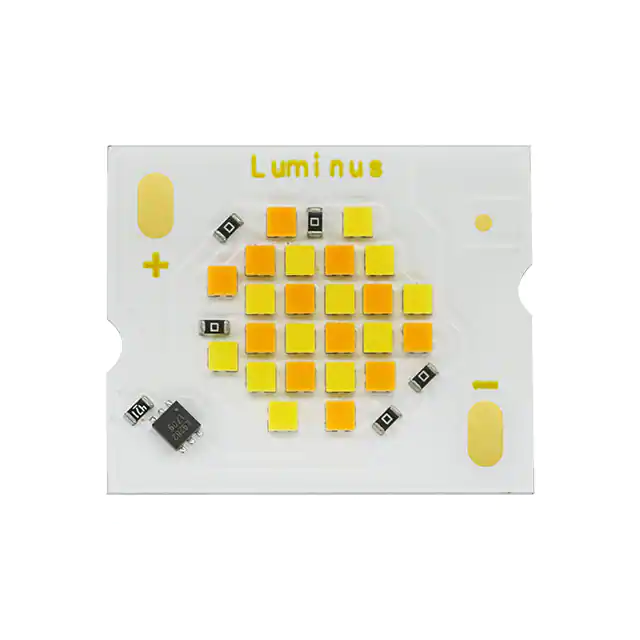

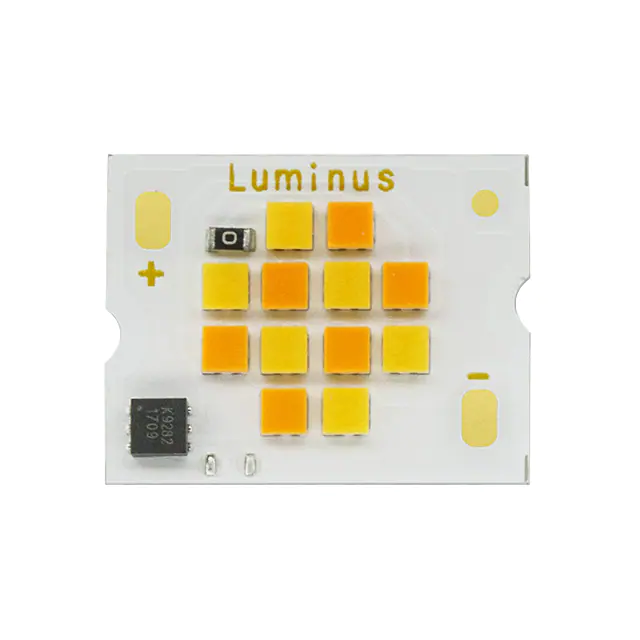

Part Number	CDM-6-3018-90-18-DW02	CDM-6-3018-90-18-DW01	CDM-9-3018-90-36-DW01	CDM-9-3018-90-36-DW02	CDM-14-3018-90-36-DW02
Manufacturer	Luminus Devices Inc.	Luminus Devices Inc.	Luminus Devices Inc.	Luminus Devices Inc.	Luminus Devices Inc.
Series	CDM, Human Centric (HCL)	CDM, Human Centric (HCL)	CDM, Human Centric (HCL)	CDM, Human Centric (HCL)	CDM, Human Centric (HCL)
Packaging	Tray	Tray	Tray	Tray	Tray
Product Status	Active	Active	Active	Active	Active
Type	LED Module	LED Module	LED Module	LED Module	LED Module
Color	White, Warm	White, Warm	White, Warm	White, Warm	White, Warm
CCT (K)	1800K ~ 3000K	1800K ~ 3000K	1800K ~ 3000K	1800K ~ 3000K	1800K ~ 3000K
Wavelength	-	-	-	-	-
Configuration	Rectangle	Rectangle	Rectangle	Rectangle	Rectangle
Luminous Flux @ Current/Temperature	438lm (Typ)	490lm (Typ)	925lm (Typ)	870lm (Typ)	1745lm (Typ)
Current - Test	300mA	300mA	300mA	300mA	600mA
Temperature - Test	85°C	85°C	85°C	85°C	85°C
Voltage - Forward (Vf) (Typ)	17.8V	17.8V	35.5V	35.5V	35.5V
Lumens/Watt @ Current - Test	82 lm/W	92 lm/W	87 lm/W	82 lm/W	82 lm/W
Current - Max	440mA	440mA	440mA	440mA	800mA
CRI (Color Rendering Index)	90	90	97	97	97
Viewing Angle	130°	130°	130°	130°	130°
Features	Dimming - Warm	Dimming - Warm	Dimming - Warm	Dimming - Warm	Dimming - Warm
Size / Dimension	15.00mm L x 12.00mm W	15.00mm L x 12.00mm W	15.00mm L x 12.00mm W	15.00mm L x 12.00mm W	24.00mm L x 20.00mm W
Height	1.58mm	1.58mm	1.58mm	1.58mm	1.58mm
Light Emitting Surface (LES)	6.80mm Dia	6.80mm Dia	9.50mm Dia	9.50mm Dia	15.50mm Dia
Lens Type	Flat	Flat	Flat	Flat	Flat
