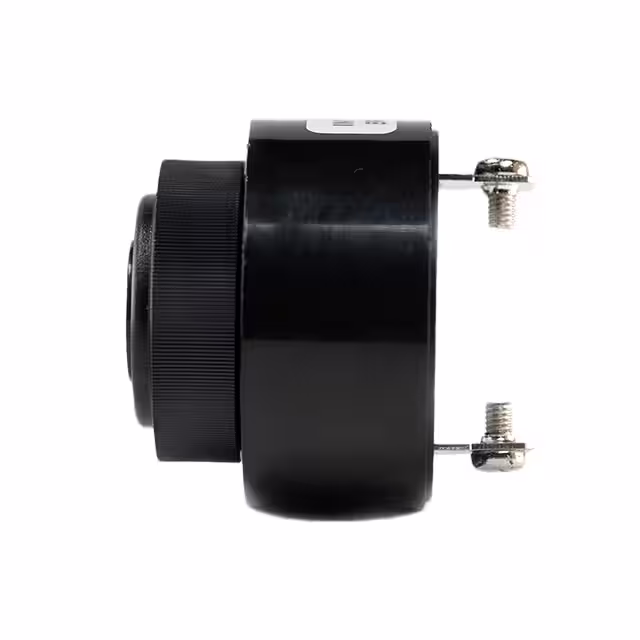

Intervox BRP4535S-24-C
- Part No.:
- BRP4535S-24-C
- Manufacturer:
- Intervox
- Category:
- Alarms, Buzzers, and Sirens
- Package:
- Datasheet:
-
BRP4535S-24-C.pdf
- Description:
- BUZZER PIEZO 24V 43.5MM PNL MNT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
BRP4535S-24-C Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Intervox
- Series:
- BRP4535
- Packaging:
- Tray
- Product Status:
- Active
- Driver Circuitry:
- Indicator, Internally Driven
- Input Type:
- DC
- Voltage - Rated:
- 24 V
- Voltage Range:
- 3 ~ 28V
- Frequency:
- 2.9kHz
- Technology:
- Piezo
- Operating Mode:
- Single Tone
- Duration:
- -
- Sound Pressure Level (SPL):
- 95dB @ 24V, 30cm
- Current - Supply:
- 40mA
- Port Location:
- Top
- Operating Temperature:
- -20°C ~ 60°C
- Approval Agency:
- -
- Ratings:
- -
- Ingress Protection:
- -
- Mounting Type:
- Panel Mount
- Termination:
- Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
- Size / Dimension:
- 1.713" Dia (43.50mm)
| Image |  |
 |
 |
| Part Number | BRP4535S-24-C | BRP4535S-24-CP | BRP4535S-12-CP |
| Manufacturer | Intervox | Intervox | Intervox |
| Series | BRP4535 | - | - |
| Packaging | Tray | Tray | Tray |
| Product Status | Active | Active | Active |
| Driver Circuitry | Indicator, Internally Driven | Indicator, Internally Driven | Indicator, Internally Driven |
| Input Type | DC | DC | DC |
| Voltage - Rated | 24 V | 24 V | 12 V |
| Voltage Range | 3 ~ 28V | 4 ~ 28V | 3 ~ 15V |
| Frequency | 2.9kHz | 2.9kHz | 2.9kHz |
| Technology | Piezo | Piezo | Piezo |
| Operating Mode | Single Tone | Pulse | Pulse |
| Duration | - | - | - |
| Sound Pressure Level (SPL) | 95dB @ 24V, 30cm | 80dB @ 24V, 30cm | 90dB @ 12V, 30cm |
| Current - Supply | 40mA | 22mA | 20mA |
| Port Location | Top | Top | Top |
| Operating Temperature | -20°C ~ 60°C | -20°C ~ 60°C | -20°C ~ 60°C |
| Approval Agency | - | - | - |
| Ratings | - | - | - |
| Ingress Protection | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount |
| Termination | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | Screw Terminals | Screw Terminals |
| Size / Dimension | 1.713" Dia (43.50mm) | 1.713" Dia (43.50mm) | 1.713" Dia (43.50mm) |
